Section 7 I/O Displays S800 Station Display
3BUR002418-600 A 155
S800 Device and FCI Detail

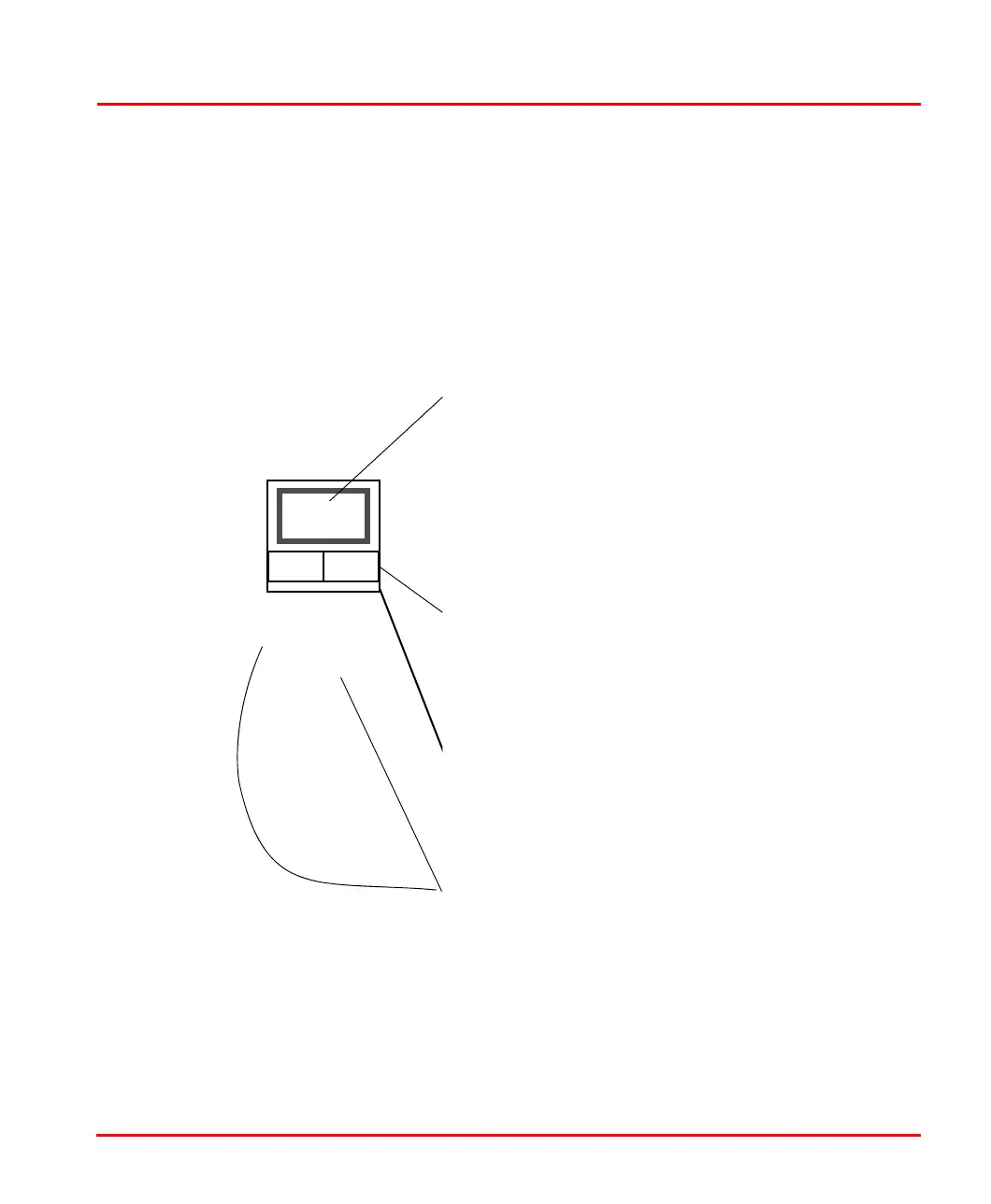

In the main part of the display, Figure 69, a detail window shows specific
information about the FCI, I/O Clusters and each I/O module device. The right
scroll bar is used to view other devices of the station. For the FCI and each I/O
module, information is displayed as described below (see Figure 69 for device
graphic, FCI shown below).
Station Item Description
Module
Number or
Position
This is the position of the FCI module (0)
or the I/O module (1 - 12) position. It is
also a screen target to the I/O Device
Display. I/O modules not configured are
not shown and blank space is left.
Module Type The component type is shown under the
position number.
FCI = CI810A (CI820) module, DI810,
DO810, AI810 and etc. for I/O devices.
Status Boxes This shows a letter for the module
status: M = missing, F = failed, U =
unknown, N = not ready, R = ready, A =
active, B = backup (for redundant FCIs)
and O = OSP state for output module
types (device only).
Device Border Border color is based on the letter
shown in the status box. M, F and U =
red, N = orange, B and R = yellow, A =
green and O = blue. Border will flash
when diagnostic messages are present.
Templet Name
and Label
Displayed as a single line tool tip when
the cursor is over the station target. The
templet name is first and label is
second.
0
CI810
A
tz3_l3_s15d3
HRY DEV 3
B
