Viewing Alarms on MOD Loop Displays Section 8 Operation Examples
210 3BUR002418-600 A

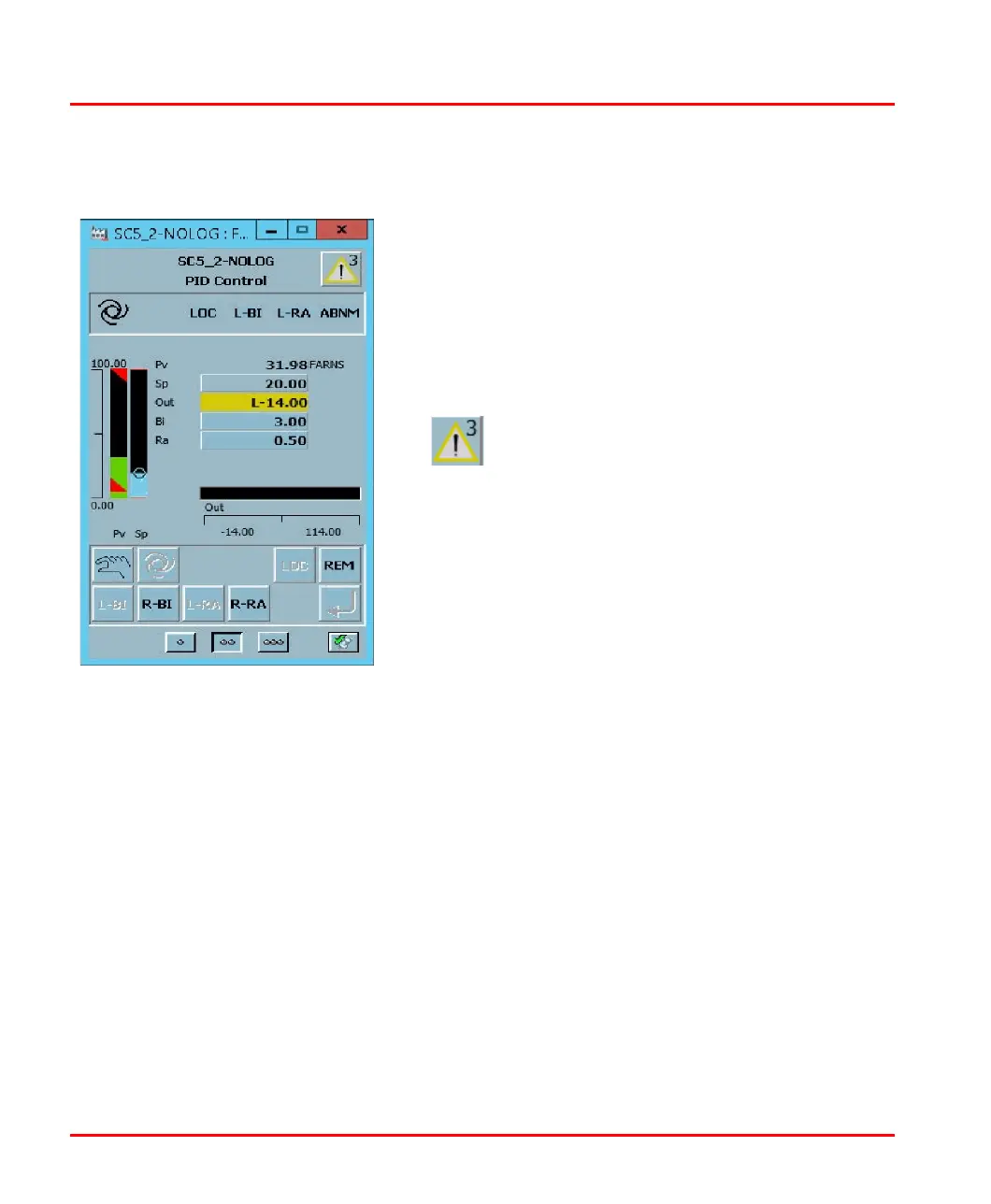

Setpoint/Process Deviation Alarm Display
This display is set to alarm on the deviation between the
PID setpoint and the normalized measured value input
to the PID.
[D]
indicates that the alarm is activated by increasing
deviation. Flashing background indicates that the alarm
is active and has not been acknowledged.
Acknowledge all alarms for a tag at once
using either the active Alarm Acknowledge
b
utton, or by using Acknowledge in the
context menu.
Steady colored background indicates an active
ac
knowledged alarm (current value is outside the trip
point).
Background returns to normal when alarm is inactive
and
acknowledged.
