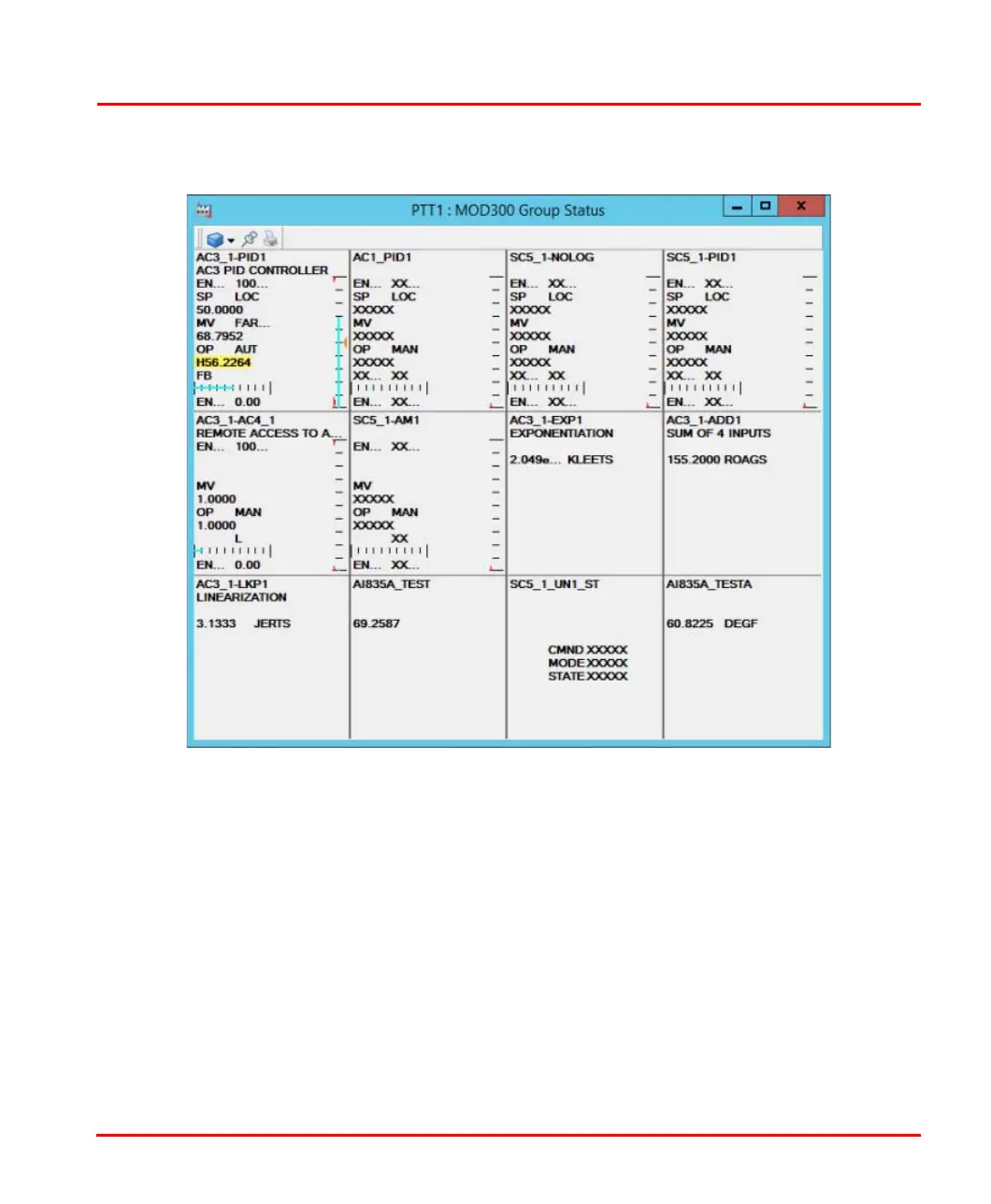

Figure 18. Group Status Display
Section 3 CCF Displays Group Status Display
3BUR002418-600 A 63
PID and A/M Status Blocks
The PID status block shows tag, descriptor, setpoint (SP) value and mode, measured
variable value, engineering units, output value and mode, computer mode, a current
output value bar graph, a current measured value bar graph with setpoint and limits,
engineering low limit, engineering high limit, FF/FB, and a trend graph. Alarm
indication and viewing is as described in Alarms on page 58. The Auto Manual and
continuous loops are similar to the PID minus the setpoint and FF/FB mode
information.
