Section 3 CCF Displays Group Status Display
3BUR002418-600 A 65
MOD Group Object. Only device descriptor command and state values of 0 to 15
are shown. Use the loop fcm if your configuration uses greater values.
Indicator Status Blocks
Indicator loop status blocks show tag and descriptor as well as measured variable,
engineering units and alarm indications for PID, continuous or A/M loops or
command state for device loops. There are no control elements for tags using the
indicator loop status block.
Alarm Indication and Viewing
Alarm indication and viewing is as described in Alarms on page 58.

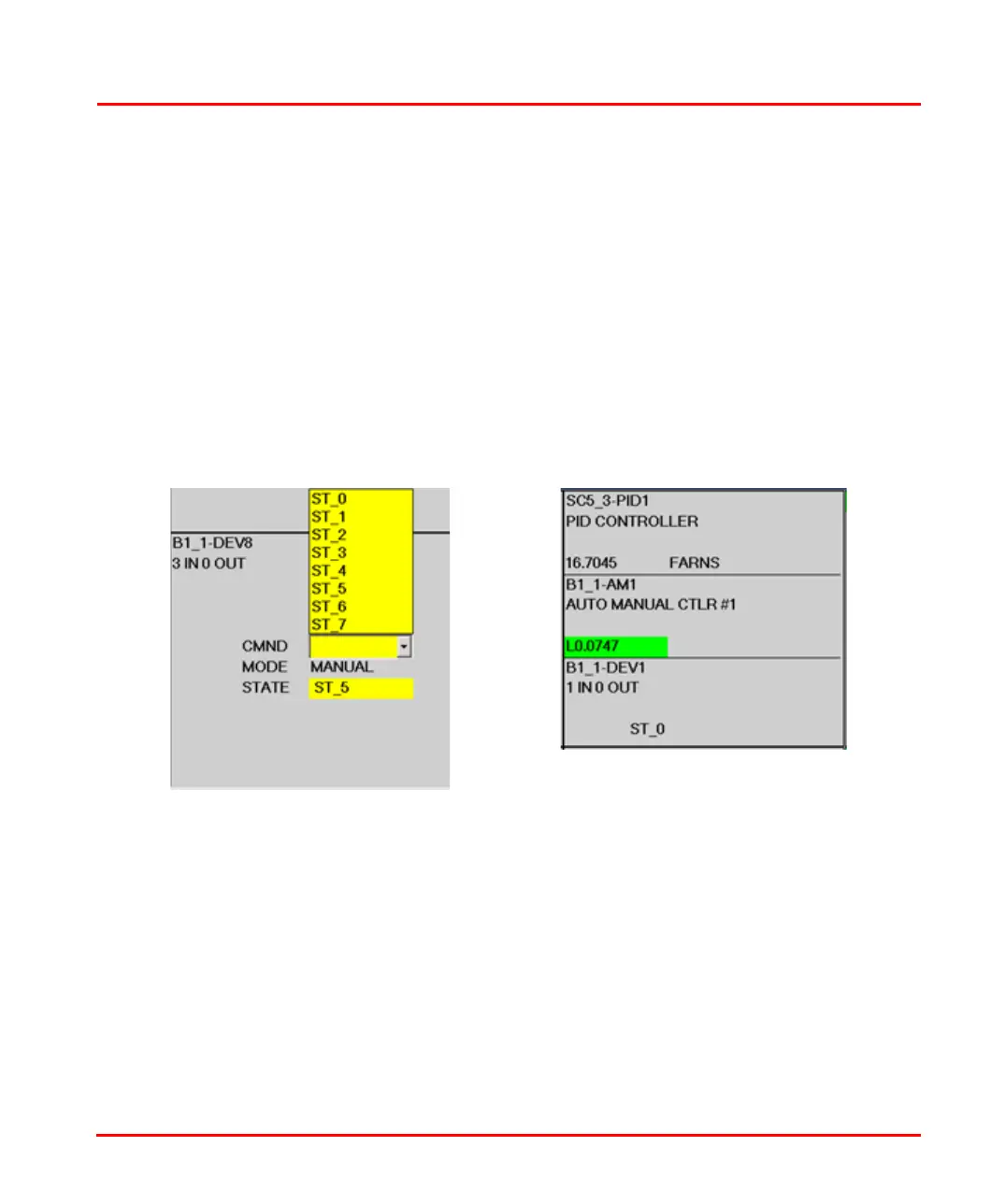

Figure 20. Device Loop and Indicator Status Blocks
