Section 4 TCL Displays Changing Sequence State, Mode, and Status
3BUR002418-600 A 83
Functions for sequence mode are:
The semiautomatic mode and manual mode support troubleshooting and debugging
sequences.
Functions for sequence status are:
Removing one or more Sequences
To remove a sequence from the unit, first select (highlight) the sequence (or list of
sequences) to be removed, then click on the REMOVE SEQUENCE button.
Selecting a Specific Sequence for SFC, Sequence Detail, or Debug
Display

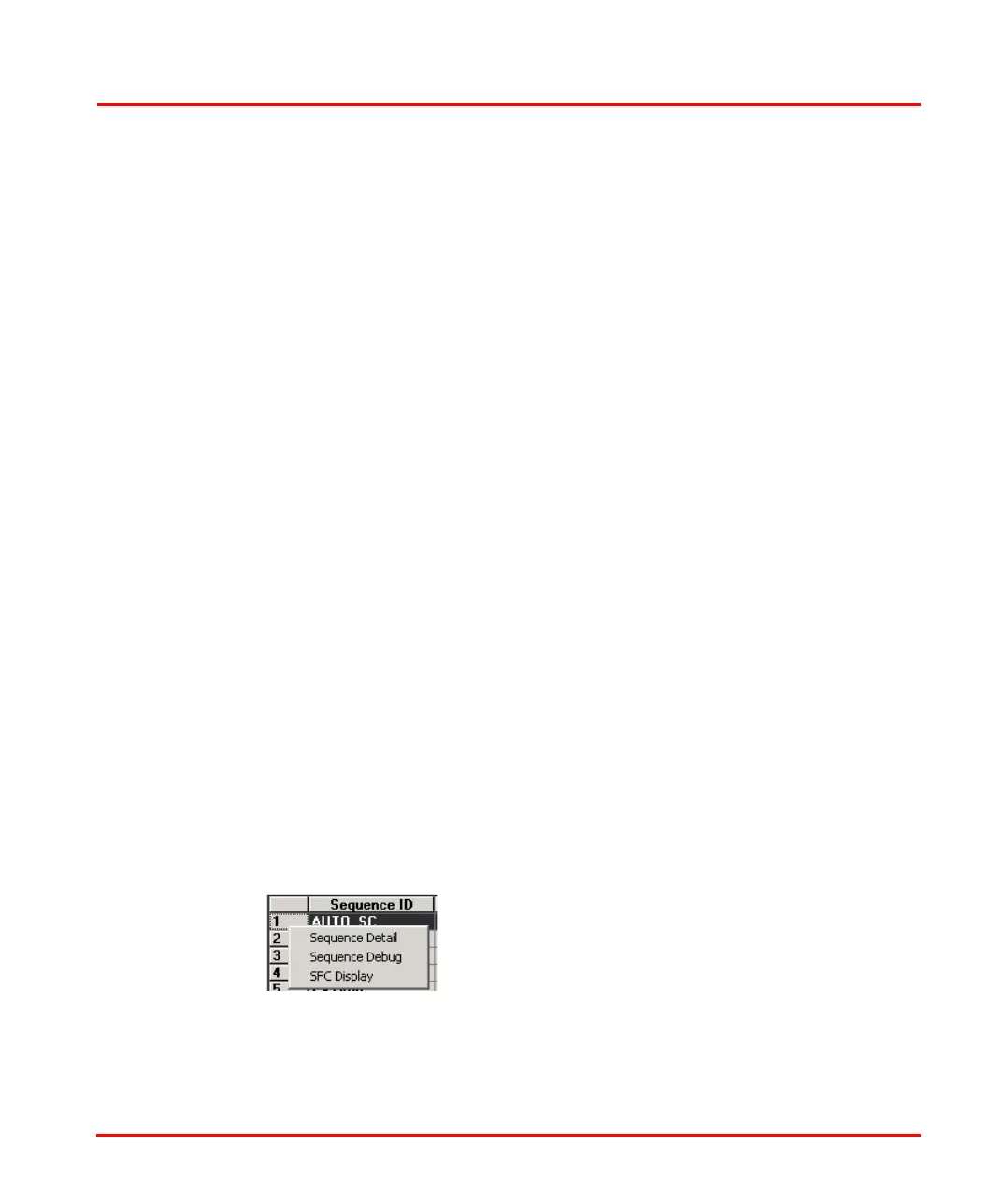

To select a specific sequence for SFC, Sequence Detail,
or Debug display, select the Sequence ID, right click for
the context menu and select the SFC, Sequence Detail
Display or Sequence Debug Display.
AUTO Programs execute steps in order without requiring operator
in
tervention.
SEMI_AUTO Programs execute steps automatically, but pause at
configured breakpoints. The operator can then resume or
abort.
MANUAL Programs execute manually.
NORMAL Indicates that no abnormal conditions exist. Normal is the
default mode after downloading.
ABNORMAL Indicates that an abnormal condition exists. The number to
the right of ABNORMAL defines the type of condition. See
Taylor Control Language (TCL) for AdvaBuild User's Guide
for information about the abnormal conditions.
