￭ Definitions
Supply voltage range
U
N
Nominal rms input current
I
1
Nominal output current (available continuously with no over-loading)
I
N
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temper-
ature.
I
max
Typical motor power in no-overload use.
P
N
Apparent power in no-overload use
S
N
Continuous rms output current allowing 10% overload for 1 minute every 5 minutes
I
Ld
Typical motor power in light-overload use
P
Ld
Continuous rms output current allowing 50% overload for 1 minute every 5 minutes
I
Hd
Typical motor power in heavy-duty use
P
Hd
Note 1: The ratings apply at an ambient air temperature of 45 °C (113 °F) and a coolant temperature of 40 °C
(104 °F).
Note 2: To achieve the rated motor power given in the table, the rated current of the drive must be higher than
or equal to the rated motor current. The DriveSize dimensioning tool available from ABB is recommended for
selecting the drive, motor and gear combination.
￭ Derating

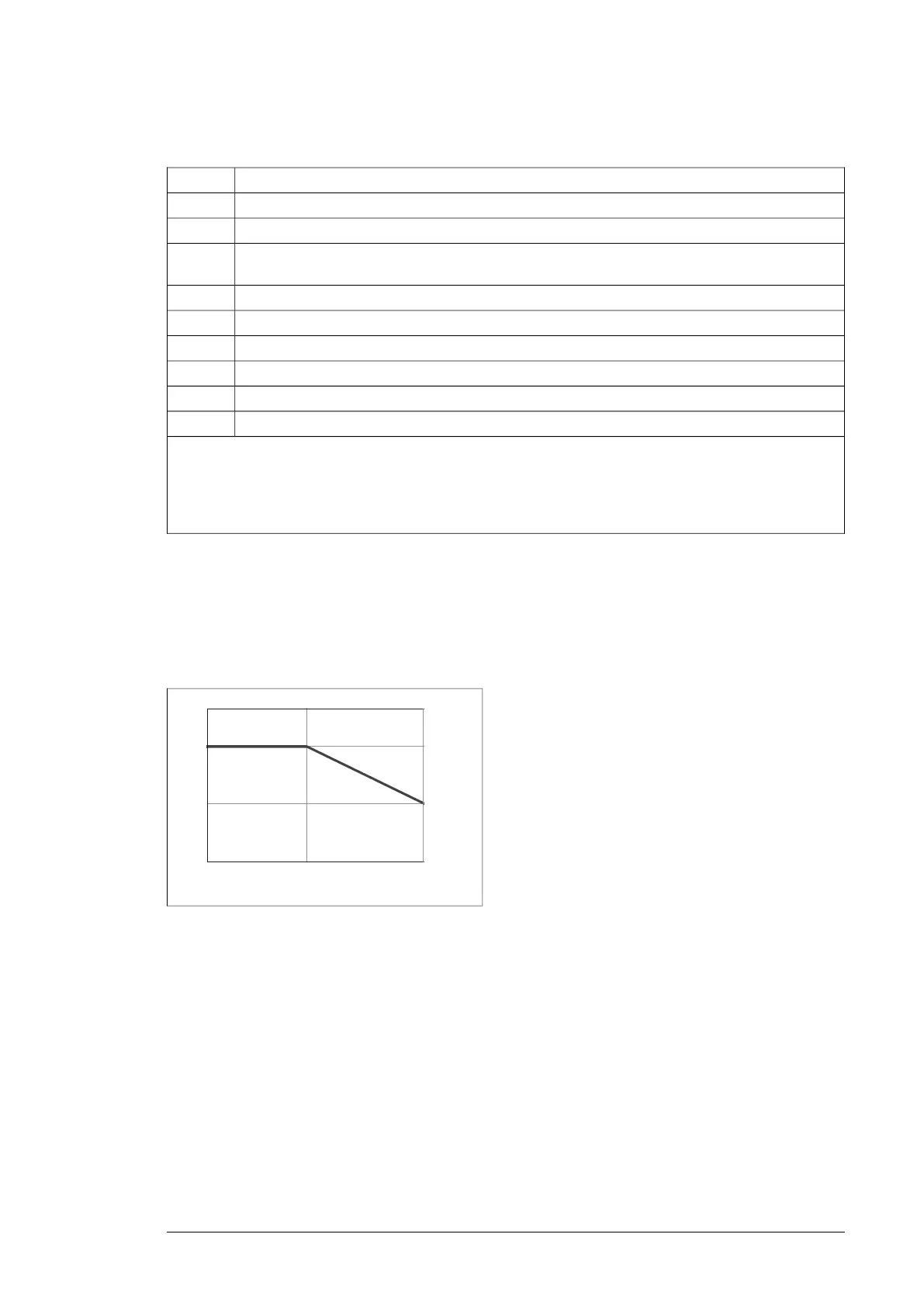

Ambient temperature derating
In the temperature range +45…55 °C (+113…131 °F), the rated output current is derated
by 0.5 percentage points for every added 1 °C (1.8 °F). The output current can be calculated
by multiplying the current given in the rating table by the derating factor (k):
134 Technical data
Ratings
Definitions
Derating
Ambient temperature derating
In the temperature range +45…55 °C (+113…131 °F), the rated output current is derated
by 0.5 percentage points for every added 1 °C (1.8 °F). The output current can be
calculated by multiplying the current given in the rating table by the derating factor (k):
Module type
ACS880-304LC...
No overload use Light overload
use
Heavy-duty
use
I
1
I
2
I
max
S
n
I
max
P
n
I
Ld
P
Ld
I
Hd
P
Hd
A (AC) A (DC) A (DC) kVA A (AC) kW (DC) A (DC) kW
(DC)
A (DC) kW
(DC)
U
N
= 690 V
-0820A-7+A019 820 1000 1400 980 1143 932 960 895 800 745
-1540A-7+A019 1540 1880 2632 1840 2149 1752 1805 1682 1504 1401
-2290A-7+A019 2290 2805 3927 2737 3206 2614 2693 2509 2244 2091
-3040A-7+A019 3040 3720 5208 3633 4252 3466 3571 3328 2976 2773
3AXD00000601909.XLS
Nominal ratings
U
N
Nominal input voltage. For U
1
, see Electrical power network specification on page 139. For U
2
, see
DC connection data on page 139.
I
1
Continuous rms input (AC) current. No overload capability at the coolant temperature of 40 °C
(104 °F) and air temperature of 45 °C (113 °F).
I
2
Continuous rms output (DC) current. No overload capability at the coolant temperature of 40 °C
(104 °F) and air temperature of 45 °C (113 °F).
I
max
Maximum output (DC) current. Available for 10 s at start, otherwise as long as allowed by module
temperature.
S
n
Nominal apparent (AC) power
I
max
Maximum input (AC) current
P
n
Nominal output (DC) power
Light-overload use (50% overload capability) ratings
I
Ld
Continuous current. 50% overload is allowed for one minute every 5 minutes.
P
Ld
Output power in light-overload use
Heavy-duty use (50% overload capability) ratings
I
Hd
Continuous current. 50% overload is allowed for one minute every 5 minutes.
P
Hd
Output power in heavy-duty use
T
1.00
0.95
+45 °C
+113 °F
+55 °C
+131 °F
k
0.90
CS880-304LC ACS880-104LC_ambient temp derating curve.pd
Coolant temperature derating
See section Temperature limits (page 147).
Antifreeze content derating
See section Temperature limits (page 147).
Altitude derating
At altitudes from 0 to 2000 m (0 to 6562 ft), no derating is required. For altitudes above 2000
m (6562 ft), contact ABB.
Switching frequency derating
Switching frequencies other than default can require output current derating. Contact ABB
for more information.
Technical data 153
