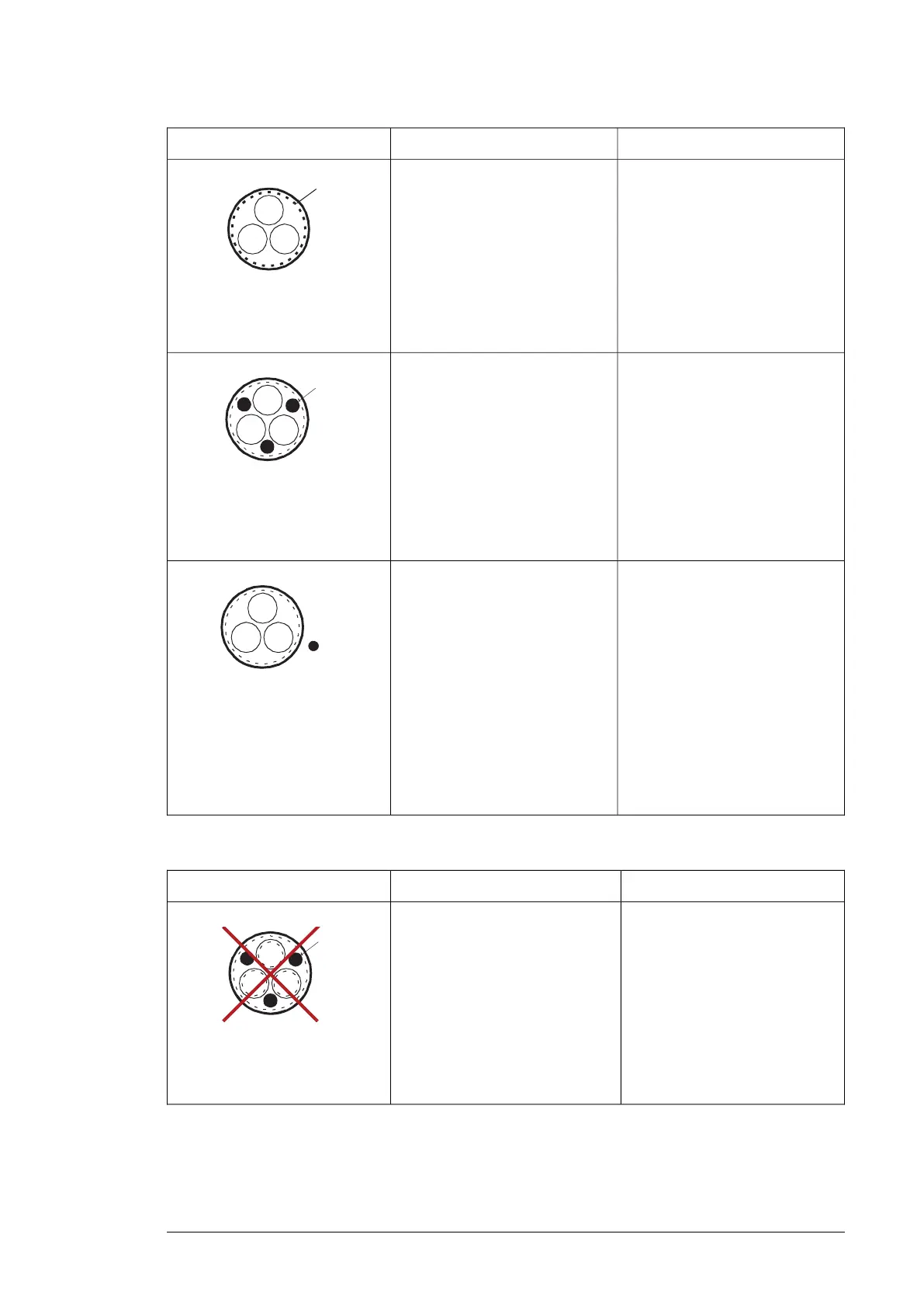

Use as motor cablingUse as input power cablingCable type
Yes.Yes.


PE
Symmetrical shielded cable with
three phase conductors and a con-
centric PE conductor as shield.
Yes.Yes.


PE
Symmetrical shielded cable with
three phase conductors and sym-
metrically constructed PE conduct-
or, and a shield.
Yes. A separate PE conductor is
required if the shield does not agree
with the PE conductor requirements.
Yes. A separate PE conductor is
required if the shield does not agree
with the PE conductor requirements.
Note:
If the shield size is smaller than
10 mm
2
Cu (or 16 mm
2
Al), you
need two PE conductors typically,
for example, the shield and a separ-
ate conductor/cable. This is due to
the safety regulations related to the
leakage current. See IEC/EN 61800-
5-1, or the drive safety instructions
for more information.


PE
Symmetrical shielded cable with
three phase conductors and a
shield, and a separate PE conduct-
or/cable
Not allowed power cable types
Use as motor cablingUse as input power cablingCable type
NoNo


PE
Symmetrical shielded cable with in-
dividual shields for each phase
conductor
￭ Power cable shield
If the cable shield is used as the sole PE conductor, make sure that its conductivity agrees
with the PE conductor requirements.
