￭ Fastening the cabinet (marine units)
See the dimension drawing delivered with the drive for details of the fastening points.
Fasten the cabinet to the floor and roof (wall) as follows:
1. Bolt the unit to the floor through the flat bars at the base of the cabinet using M10 or
M12 screws.
2. If there is not enough room behind the cabinet for installation, clamp (a) the rear edges
of the flat bars (c) to the floor. See the figure below.
3. Attach corner brackets (d) to the lifting eye holes. Fasten the corner brackets to the rear
wall and/or roof with suitable hardware such as U-brackets (e).

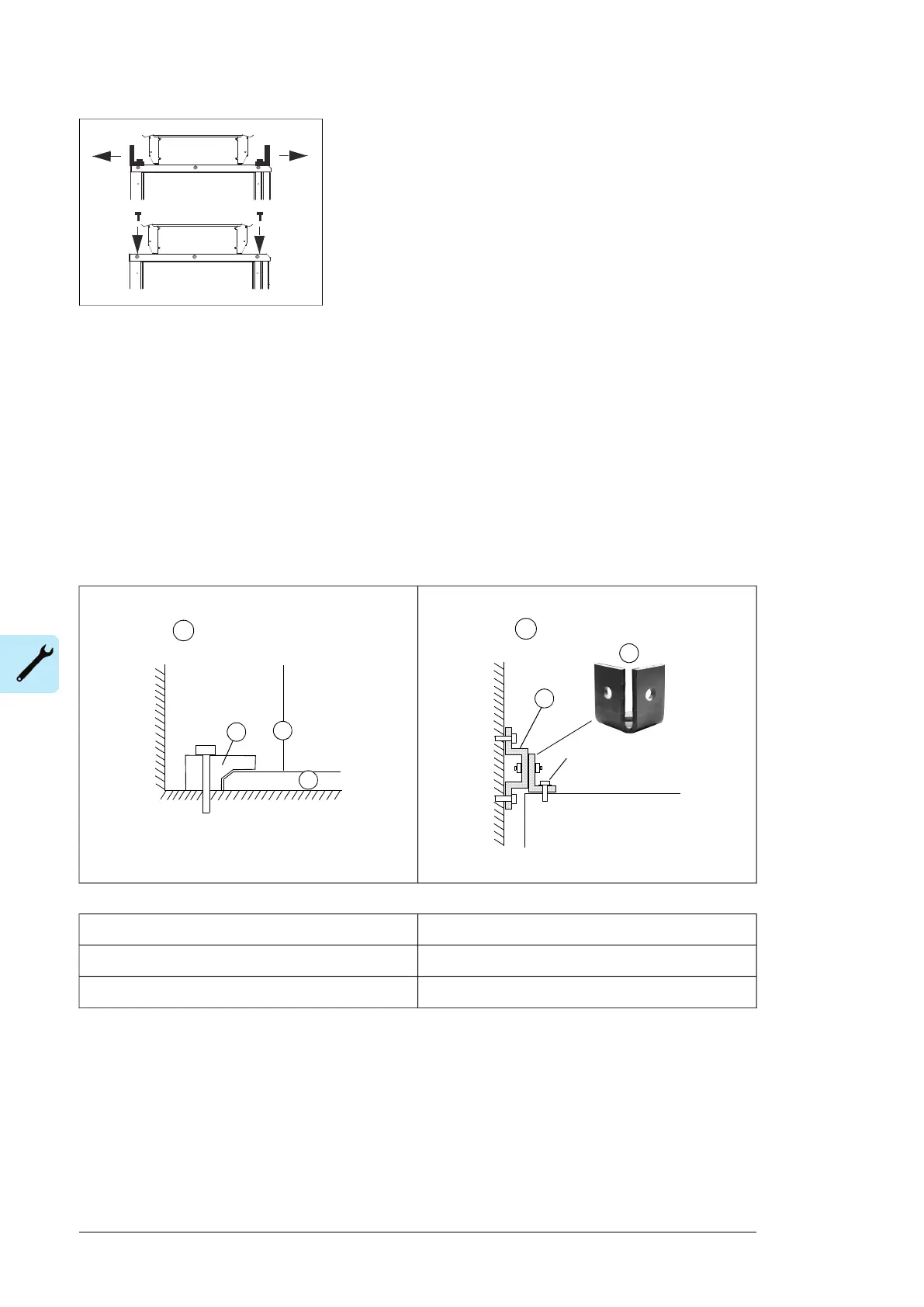

Fastening to wallFastening to floor with a clamp
3. Fastening the cabinet at the top2. Clamping the cabinet to the floor at the back
d - Corner bracket (included)a - Clamp (not included)
e - U-bracket (not included)b - Back panel of cabinet
c - Flat bars at base of cabinet
58 Mechanical installation
