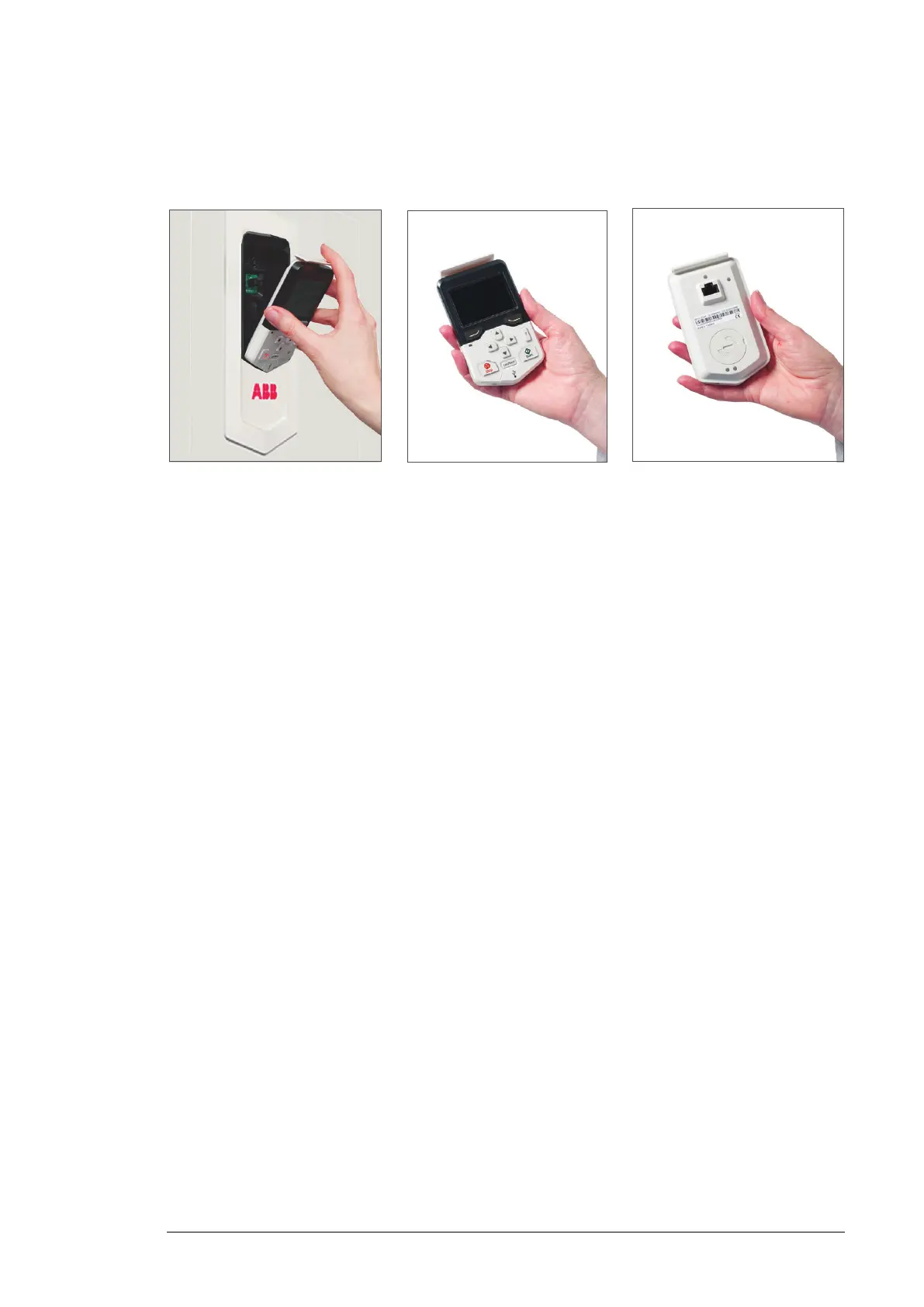

The control panel can be removed by pulling it forward by the top edge and reinstalled in
reverse order. For the use of the control panel, see ACX-AP-x assistant control panel user’s
manual (3AUA0000085685 [English]) and the firmware manual.
Control by PC tools
There is a USB connector on the front of the panel that can be used to connect a PC to the
drive. When a PC is connected to the control panel, the control panel keypad is disabled.
Operation principle and hardware description 39
