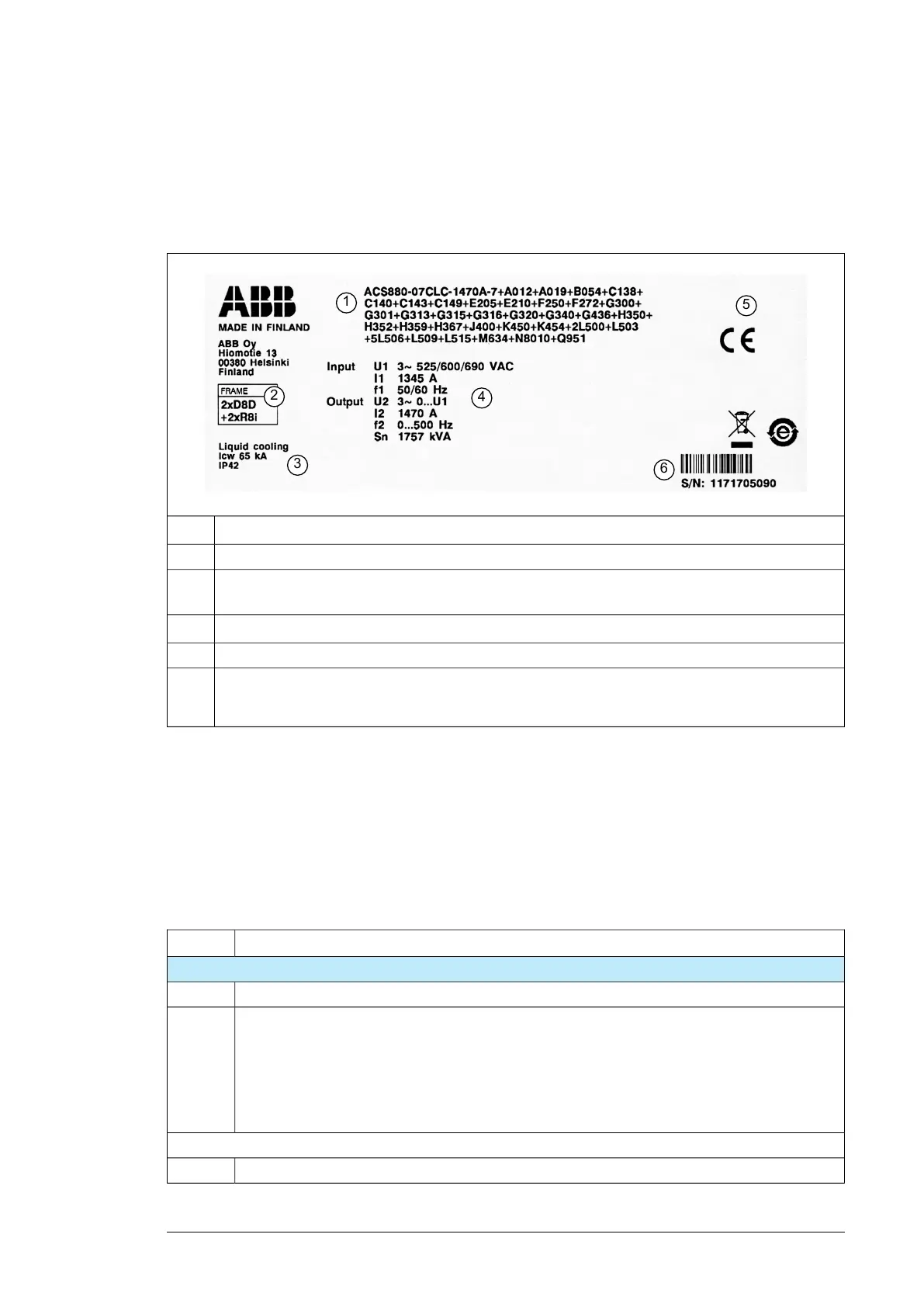

Type designation label
The type designation label includes ratings, appropriate markings, a type designation and
a serial number, which allow the identification of each unit. A sample label is shown below.
Quote the complete type designation and serial number when contacting technical support.
Type designation (see section Type designation key (page 45)).
1
Frame size2
Short-time withstand current rating (see chapter Technical data (page 151)); degree of protection;
UL/CSA specifications
3
Ratings. See also chapter Technical data (page 151).
4
Valid markings5
Serial number. The first digit of the serial number refers to the manufacturing plant. The next four digits
refer to the unit’s manufacturing year and week, respectively. The remaining digits complete the serial
number so that there are no two units with the same number.
6
Type designation key
The type designation contains information on the specifications and configuration of the
drive. The first digits from left express the basic drive type. The optional selections are given
thereafter, separated by plus signs, eg, +E202. Codes preceded by a minus sign (eg. -J400)
indicate the absence of the specified feature. The main selections are described below. Not
all selections are available for all types. For more information, refer to the ordering instructions
available separately on request.
DescriptionCode
Basic code
Product seriesACS880
Default configuration: liquid-cooled cabinet-installed drive, marine type approval, 50 Hz supply fre-
quency, no main switch or breaker, no input chokes, connection for 230 V AC auxiliary voltage, no
capacitor pre-charging circuit, halogen-free wiring, ACS-AP-W assistant control panel, EMC filter
(category 3, 2nd Environment), du/dt filters, common mode filtering, ACS880 primary control program,
Safe torque off function, cubicle heater elements, coated circuit boards, bottom entry and exit of
cables with lead-through-type entries, multilingual door device label sticker, USB memory stick
containing circuit diagrams, dimension drawings and manuals.
ACS880-
07CLC
Size
Refer to the rating tablesxxxxx
Operation principle and hardware description 45
