ABB ACSM1 - Page 409

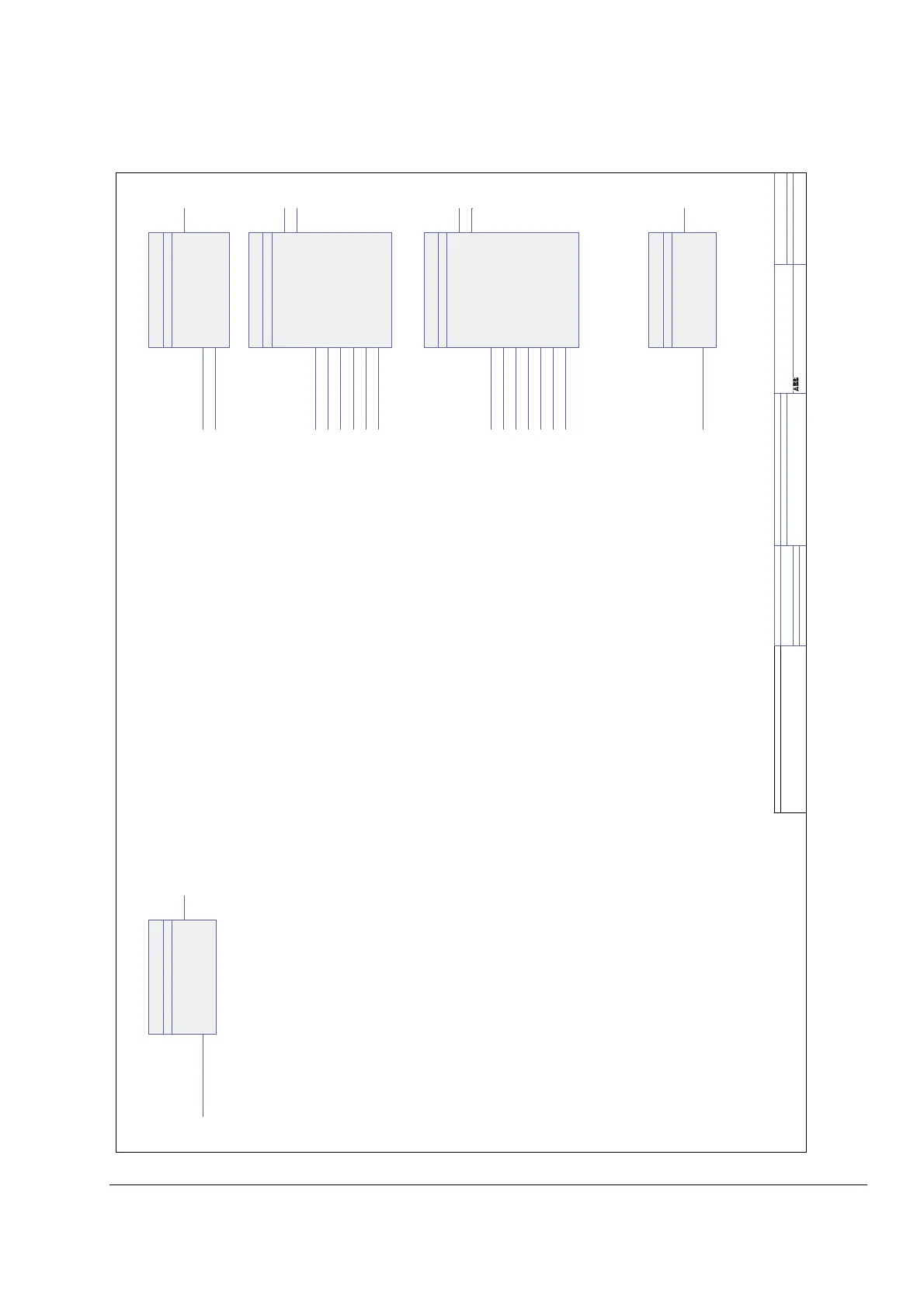

Application program template
409
DI
16
TLF7 2 msec (1)
12.13 DI INVERT MASK
(Drive value)
2.01 DI STATUS
RO
17
TLF7 2 msec (2)
< 12.12 RO1 OUT PTR
(Drive value)
2.02 RO STATUS
DIO1
18
TLF7 2 msec (3)
12.01 DIO1 CONF
(Drive value)
< 12.04 DIO1 OUT PTR
(Drive value)
2.03 DIO STATUS
2.03
Bit 0
DIO2
19
TLF7 2 msec (4)
12.02 DIO2 CONF
(Drive value)
< 12.05 DIO2 OUT PTR
(Drive value)
12.14 DIO2 F MAX
(Drive value)
12.15 DIO2 F MIN
(Drive value)
12.16 DIO2 F MAX SCALE
(Drive value)
12.17 DIO2 F MIN SCALE
(Drive value)
2.03 DIO STATUS
2.03
Bit 1
2.10 DIO2 FREQ IN
DIO3
20
TLF7 2 msec (5)
12.03 DIO3 CONF
(Drive value)
< 12.06 DIO3 OUT PTR
(Drive value)
< 12.07 DIO3 F OUT PTR
[ SPEED ACT ] (7 / 1.01)
12.08 DIO3 F MAX
(Drive value)
12.09 DIO3 F MIN
(Drive value)
12.10 DIO3 F MAX SCALE
(Drive value)
12.11 DIO3 F MIN SCALE
(Drive value)
2.03 DIO STATUS
2.03
Bit 2
2.11 DIO3 FREQ OUT
Page 2 Digital I/O FWA com patibility l evel = 1.70 Firmware Library ID = 1, ver = 1.0 Standard Library ID = 10000, ver = 1.1
