5HSRUWV
The report function permits you to connect a printer to the Advant Controller 450 system to
print out simple reports.
Figure 1-44 shows an example of a simple report which is “edited” with the help of data base
and PC elements. Values, date and time are transformed into text strings.
Some notes regarding the printer and report application follow:
• You can direct the printout of a report to a printer connected to another Advant Controller
on the control network.
• Advant Controller 450 has a REPORT PC element, which makes it possible to initiate a
hard copy printout of a display in an operator station.
• The printouts can be made, upon operator demand, event-driven and cyclic.
• The print out of application information, that is data base lists and PC program diagrams,
is done on a printer connected to the configuration tool.

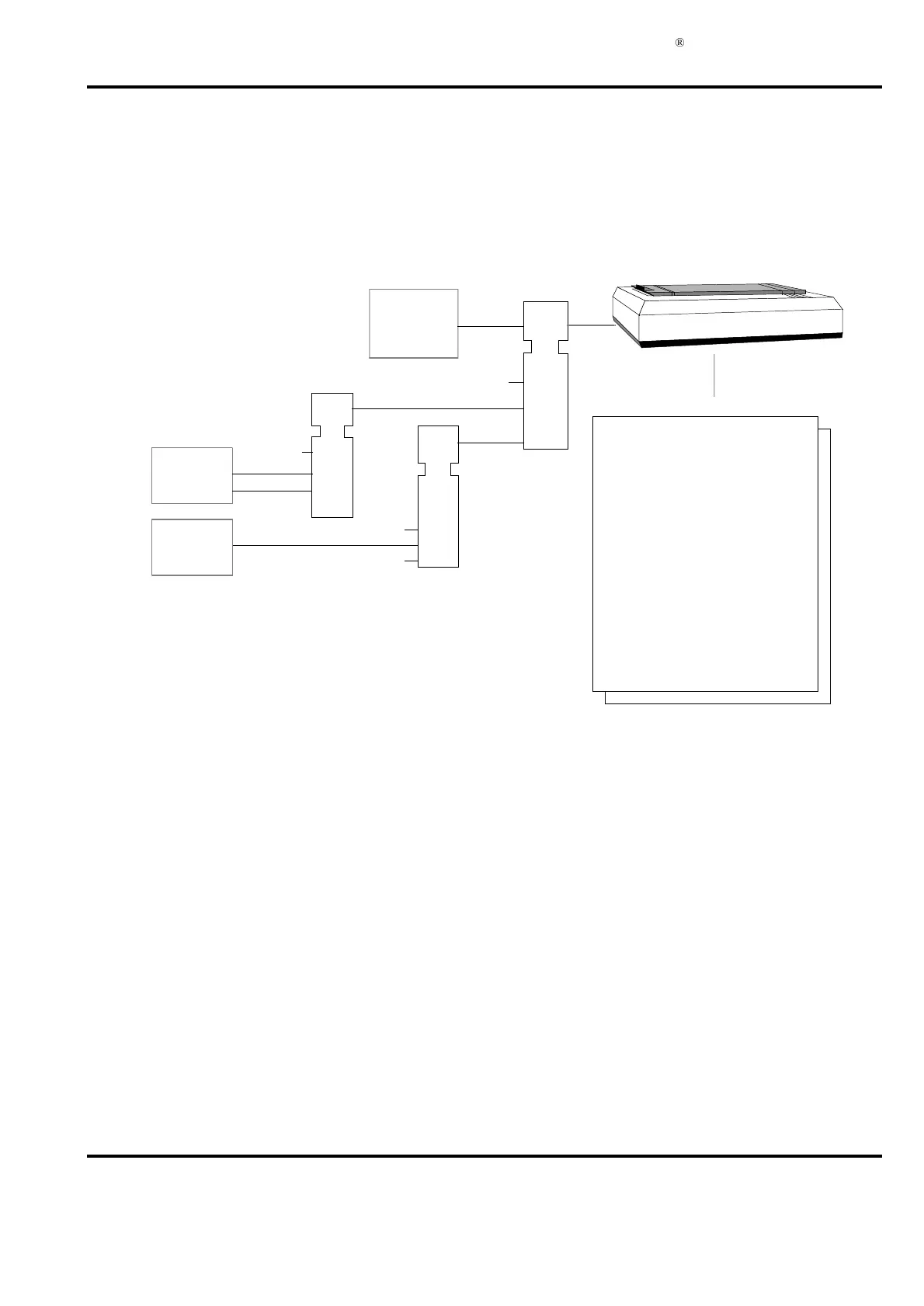

)LJXUH ([DPSOHRI6LPSOH5HSRUW
PRINT
TEXT
TEXT
D=“SHIFTREPORT BOILER”
=“Acc. oil cons.”
D=“tons”
PC program
PC program
PC program
MAN control
or
TIMER
D
Tota lizer
DATE
TIME
D= “Time”
SHIFT REPORT BOILER
Time 1993-12-24 19:18:04
Acc. oil cons. 1.76 tons
Acc. water cons. 280 tons
Exhaust gases (peak):
CO 120 ppm
O2 1.8 %
