Controller 450 User’s Guide
Chapter 2 Installation
2-40 3BSE 002 415R701 Rev A
2.2.12.1 Printer
Assembly/Location
See instructions enclosed with the actual printer.
Electric Installation (including Power Supply)
Short-Distance Connection
At distances shorter than 15 m (49 ft.), join the printer with the communication module in the
controller subrack with a standard cable TK520V150. See the actual delivery documentation for
the controller for information regarding location of the communication module.
Cable routing in the cabinet is shown in Section 2.2.6, Cable Routing in Cabinets.
Because of the lack of isolation between the printer and the controller, it is important that they
be powered from the same mains supply. See general instructions in Section 2.2.12, Peripheral
Units heading Power Supply.
Long-Distance Connection
If you use a communication modem, the distance between the controller and printer can be a
maximum of 300 m.
The different cables prescribed are shown in Figure 2-23 below. Rules for cable shielding are
given in Figure 2-24.
See the actual delivery documentation for the controller for information regarding location of
the communication module and the modem.
Cable routing in the cabinet is shown in Section 2.2.6, Cable Routing in Cabinets.

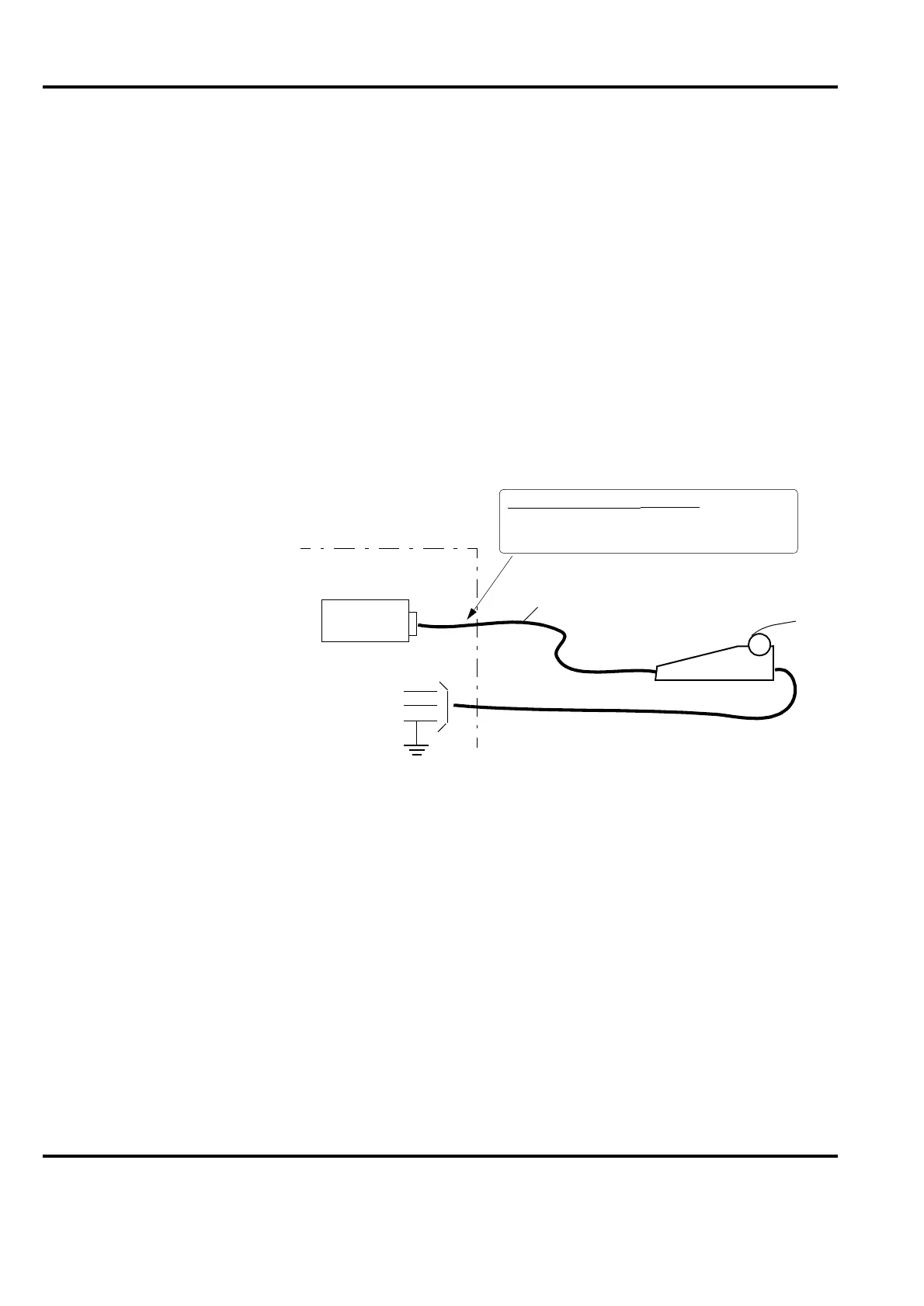

Figure 2-22. Short Distance Connection of Printer
Return
Phase
Protective
ground
Mains supply (C) socket
Comm. module
CI531
Cable
TK520V150
Advant Controller
15 m (49 ft.)
CE-marked design (additionals)
Direct grounding of cable shield
Use the cable clamp at the enclosure port
