ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
6HFWLRQ 3URFHVV,QWHUIDFH
3BSE 002 415R701 Rev A 1-53
+$57,QWHUIDFH6,2
Intelligent transducer using the HART protocol may be applied in an Advant Controller 400
installation utilizing the S800 I/O System. S800 I/O modules supporting HART together with an
Advant Control Configurator tool version supporting HART and its integrated HART
configuration tools are conditions for this function. HART specific data is not available in
Advant Controller 450 which is acting as a router between the S800 I/O modules and the HART

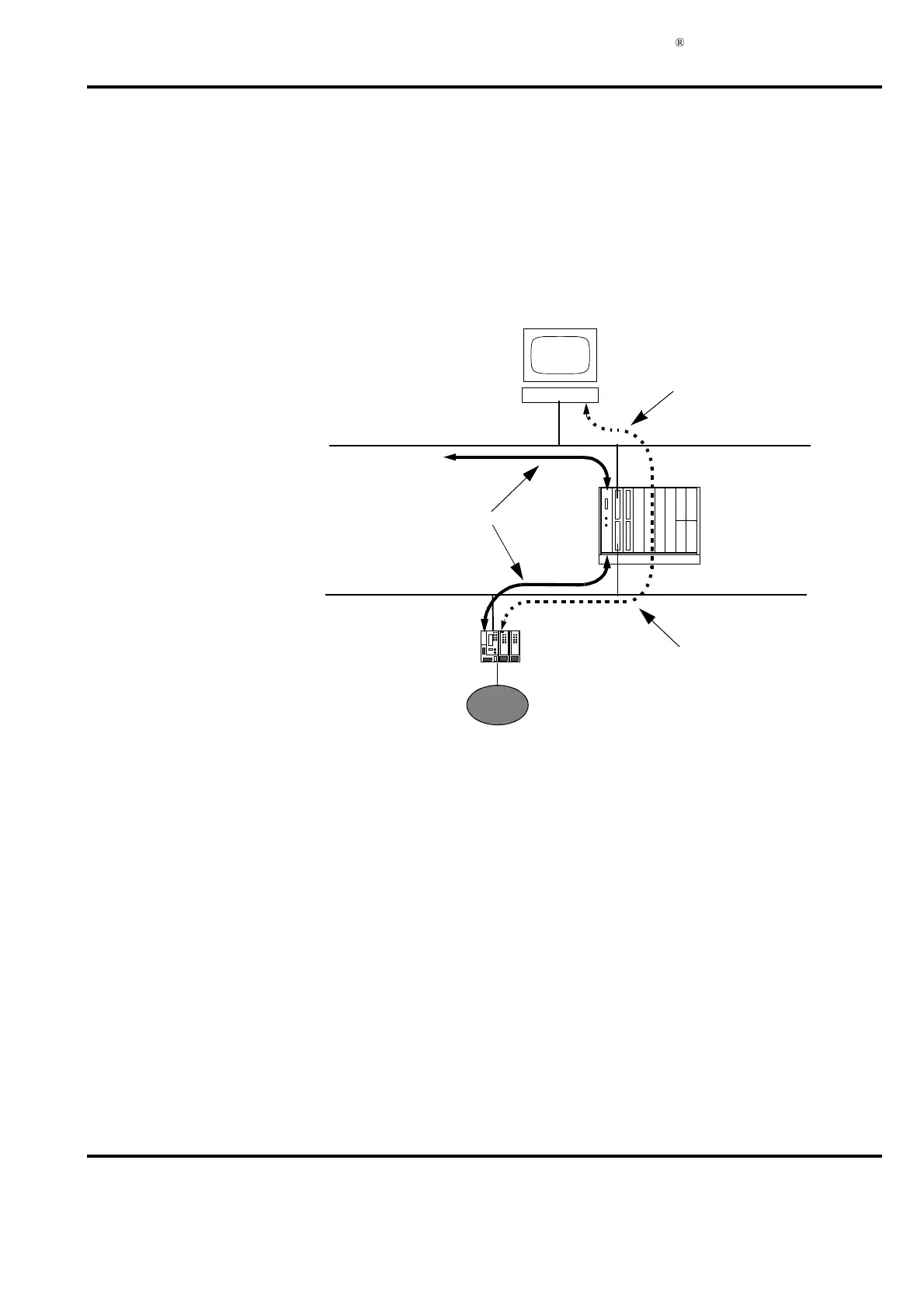

configuration tool. The principle is illustrated in Figure 1-21.
)LJXUH  3ULQFLSOHRI+$57LPSOHPHQWDWLRQXVLQJ6,2
Advant Engineering Workplace with
HART configuration tool, that is Cornerstone
Master Bus 300
Advant Fieldbus 100
AC 450
S800 I/O Station
AI/AO signals
HART data
HART data
HART device

ABB Advant Controller 450 Specifications

General

Brand	ABB
Model	Advant Controller 450
Category	Controller
Language	English
