Each unit takes up to four communication cables and it also provides the mechanical anchoring
of the cable. Two units can be mounted side by side or, if necessary, on top of each other.
Certain spacers are used then. This imply a maximum of 4 units on a mounting bar (16 buses).
A split ferrite core should be used on each communication cable. They should be mounted at the
cabinet entry, see Figure 2-11, and have a series impedance of at least 100 ohms in the frequency
range 50-300 MHz. The application of method with respect to communication type is given in
Table 2-1.

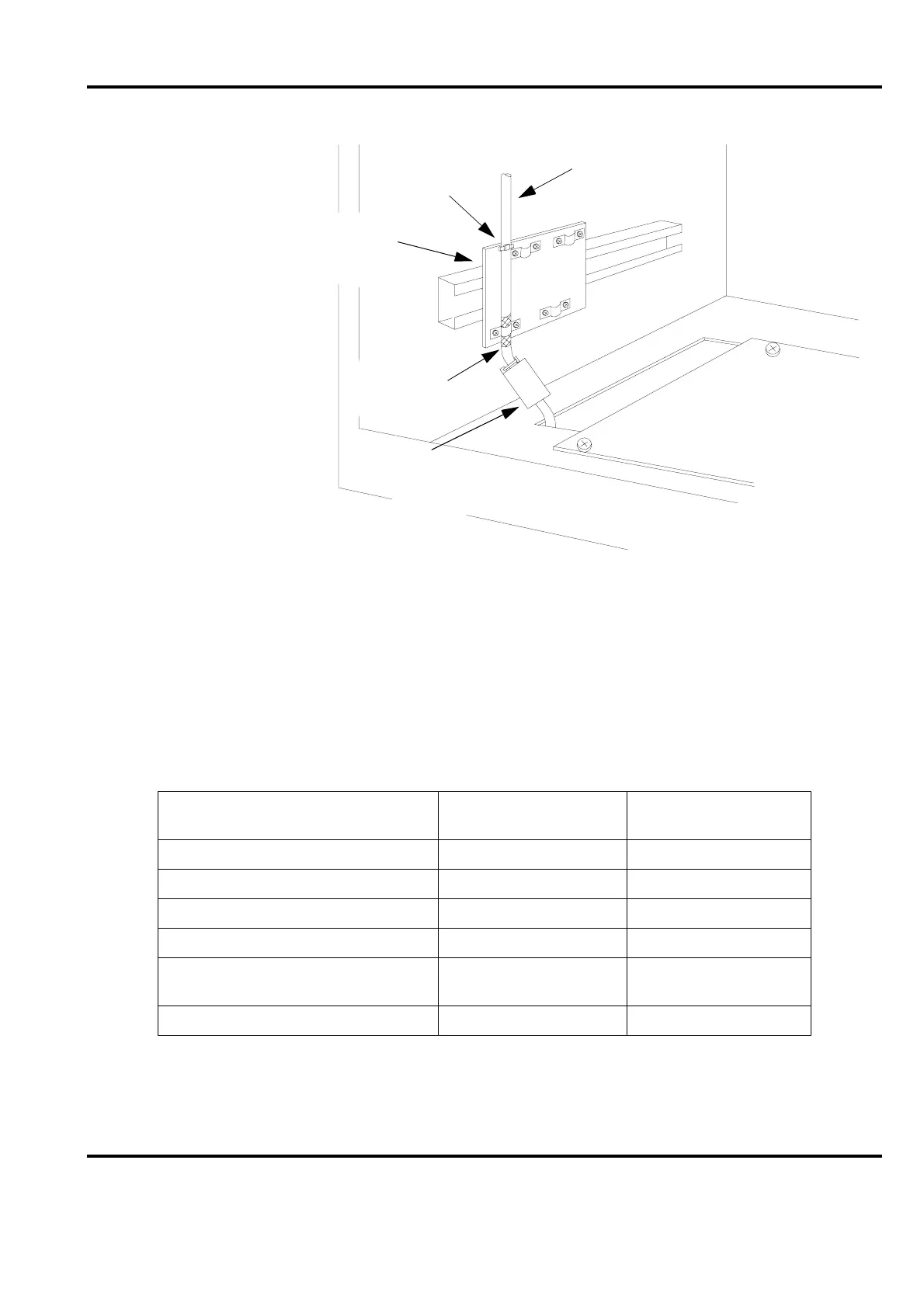

Figure 2-11. Communication Cable Shield Grounded by Capacitor and Ferrite Coil
Table 2-1. Methods of Handling Communication Cable Shields
Type of Communication
Grounding of Shield
Directly
Grounding of Shield
via Capacitor
Advant Fieldbus 100, Coaxial -- Yes
Advant Fieldbus 100, Twisted pair -- Yes
MasterFieldbus, Long Distance Bus -- Yes
MasterFieldbus, Short Distance Bus Yes (in both ends!) --
MasterBus 300 (300E), GCOM,
drop cable
Yes --
RCOM, EXCOM, MVI Yes --
Split Ferrite Coil
Expose shield
20-30 mm
Capacitive
Decoupling
Unit, TX507
(0.8-1.2”)
Cabinet Floor
Communication
Cable
Attachment
of the Cable
