ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
&KDSWHU ,QWURGXFWLRQ
1-84 3BSE 002 415R701 Rev A
$GYDQW)LHOGEXV2XWOLQH'HVFULSWLRQ
Advant Fieldbus 100 is a high-performance bus specially designed for real-time applications.
A number of different products are connectable to Advant Fieldbus 100, that is
Advant Controller 410/450, Advant Controller 110, distributed S800 I/O stations, ACV 700
Converter, and so on. It features reliable, cyclic data transfer as well as event-driven background
transfer of service data.
Advant Fieldbus 100 also features a distributed master scheme. If one or several controllers are
lost, the bus is not affected and operations continue.
Three types of transmission media, coaxial cable, twisted pair cable and optical fibre are
supported. The maximal bus length is depending on which transmission media is used.
For increased availability, you can duplicate the cables and modems (physical redundancy) or
for full redundancy also duplicate the bus interface modules.
An S800 I/O station has a built in modem and communication interface for the twisted pair
media.

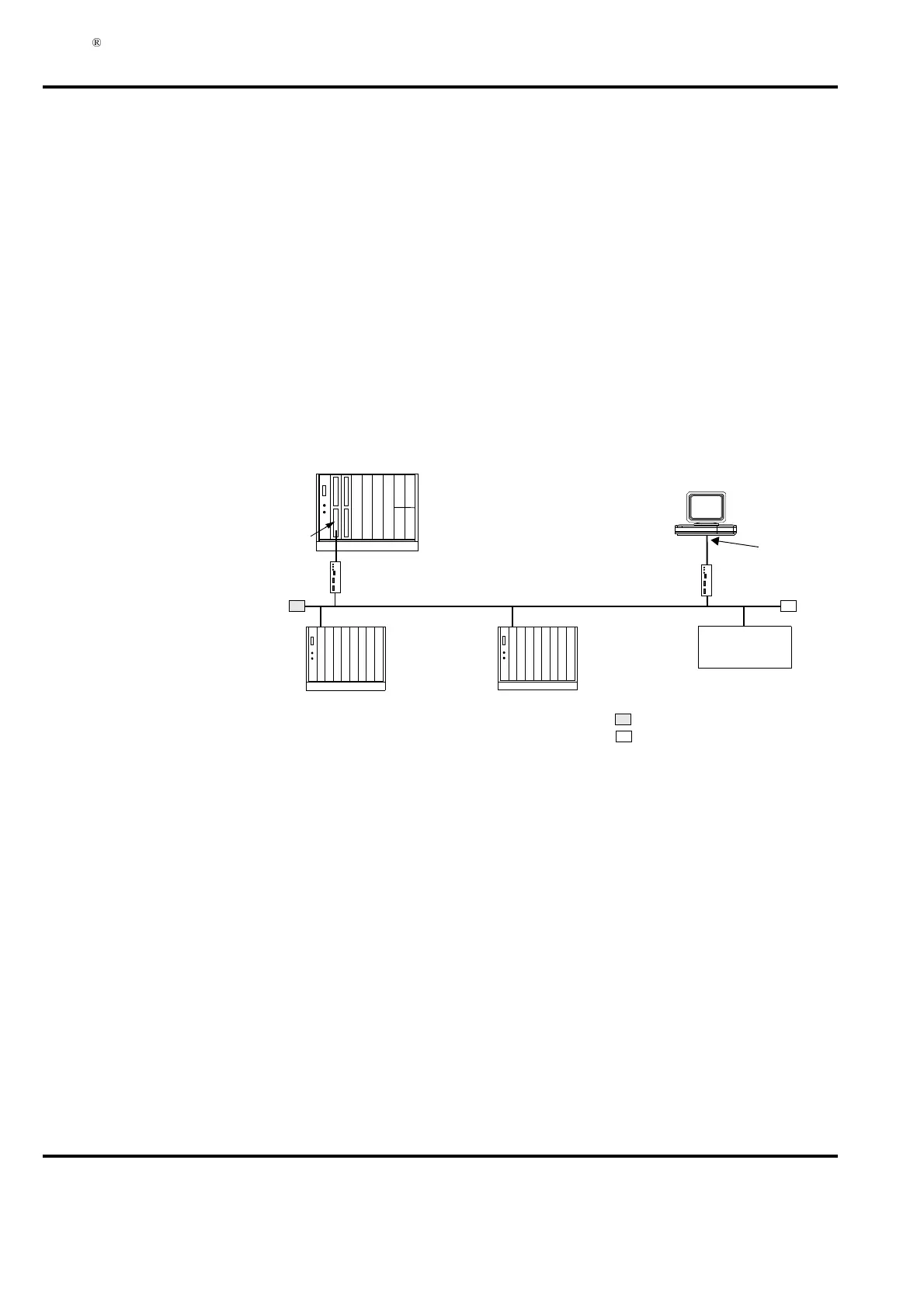

)LJXUH  $QRQUHGXQGDQW$GYDQW)LHOGEXV&RQILJXUDWLRQXVLQJ&RD[LDO0HGLD
75 Ohm BNC termination
CI526
AdvaSoft for Windows
AC 110
CI626
AC 450
AC 110
CI626
CI522A
TC625
TC625
CT
External
Device
Advant Fieldbus 100
CT
CT
Grounded 75 Ohm BNC termination
CT
