A-32 3BSE 002 415R701 Rev A
$ 6&[6XEPRGXOH&DUULHUV
• Permit flexible functional disposition
• Variants with/without CPU resources.
Includes slave processor and protocol to run
MasterBus 300 or MasterBus 300E
(Submodule CS513 needed),
General submodule carrier without slave processor.
'HVFULSWLRQ
Three variants of submodule carriers are available to fit into RF533 Series
controller subrack.
A submodule carrier has no complete function but two slots for submodules of
different kinds to define the desired function.
Communication interfaces are the most common category of submodules.
The actual application determines which submodule carrier to use.
Design considerations are given in the controller documentation.
The significant differences between available variants are:
6&
RUN

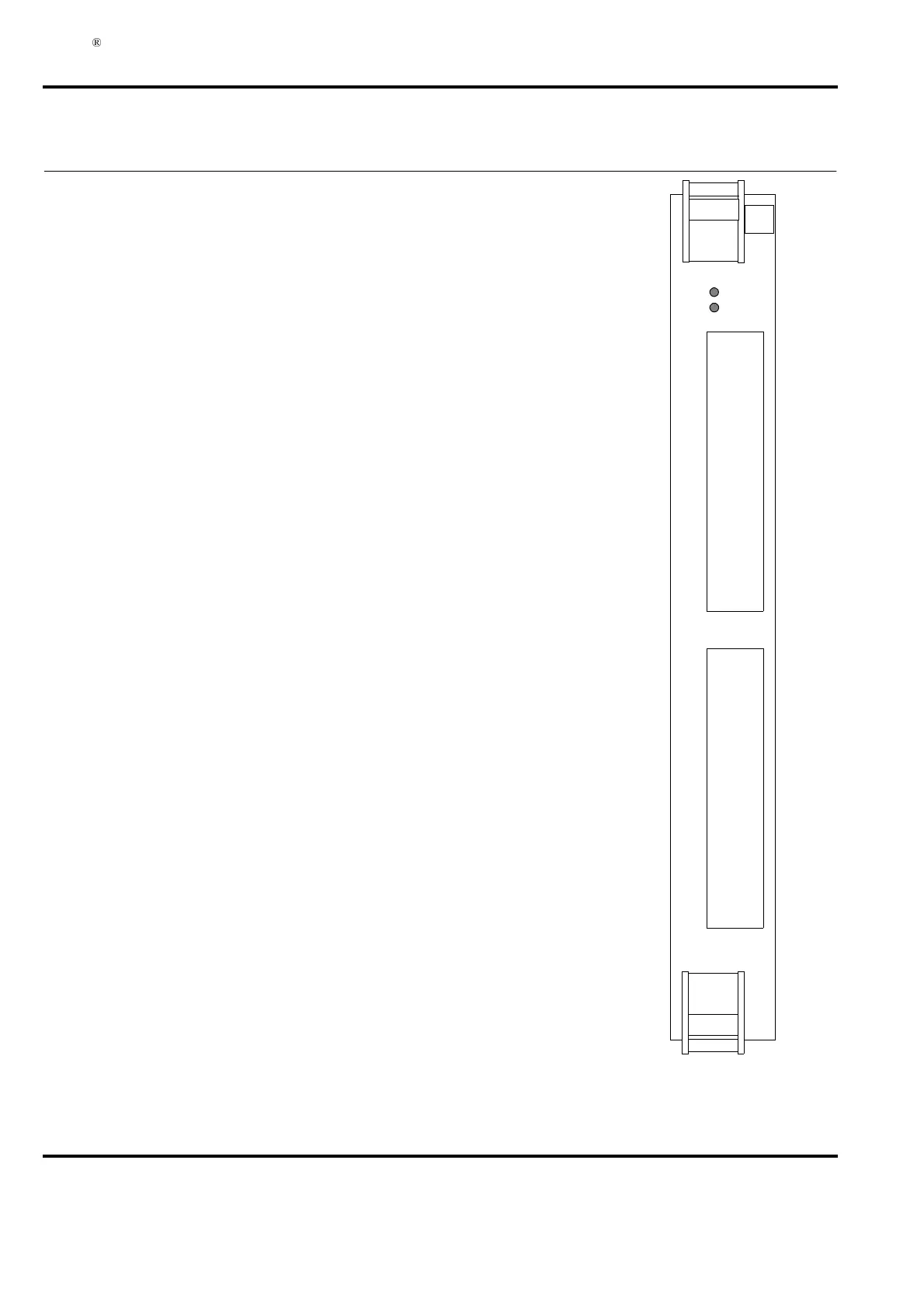

)URQWYLHZ
ABB
SC
520
F
1
2
6&
