ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
6HFWLRQ$ 6%% DWWHU\8QLW
3BSE 002 415R701 Rev A A-31
Technical Data
(OHFWULFDO'DWD
Nominal battery voltage 12 V
Capacity 4 Ah (one-hour discharge)
Internal, non-replaceable fuse 20 A (quick action)
0HFKDQLFDO'DWD
Dimension: width max. 71 mm (2.8”)
height max. 350 mm (13.8”)
depth max. 40 mm (1.6”)
Weight: 1.4 kg (3.1 lbs.)
5HOLDELOLW\)LJXUHV
Useful life > 3 years
0DLQWHQDQFH
Replace the battery after three years of normal operation.
The battery includes cadmium and is to be treated as KD]DUGRXVZDVWH.
0DLQWHQDQFH3DUWV
Battery Unit SB522

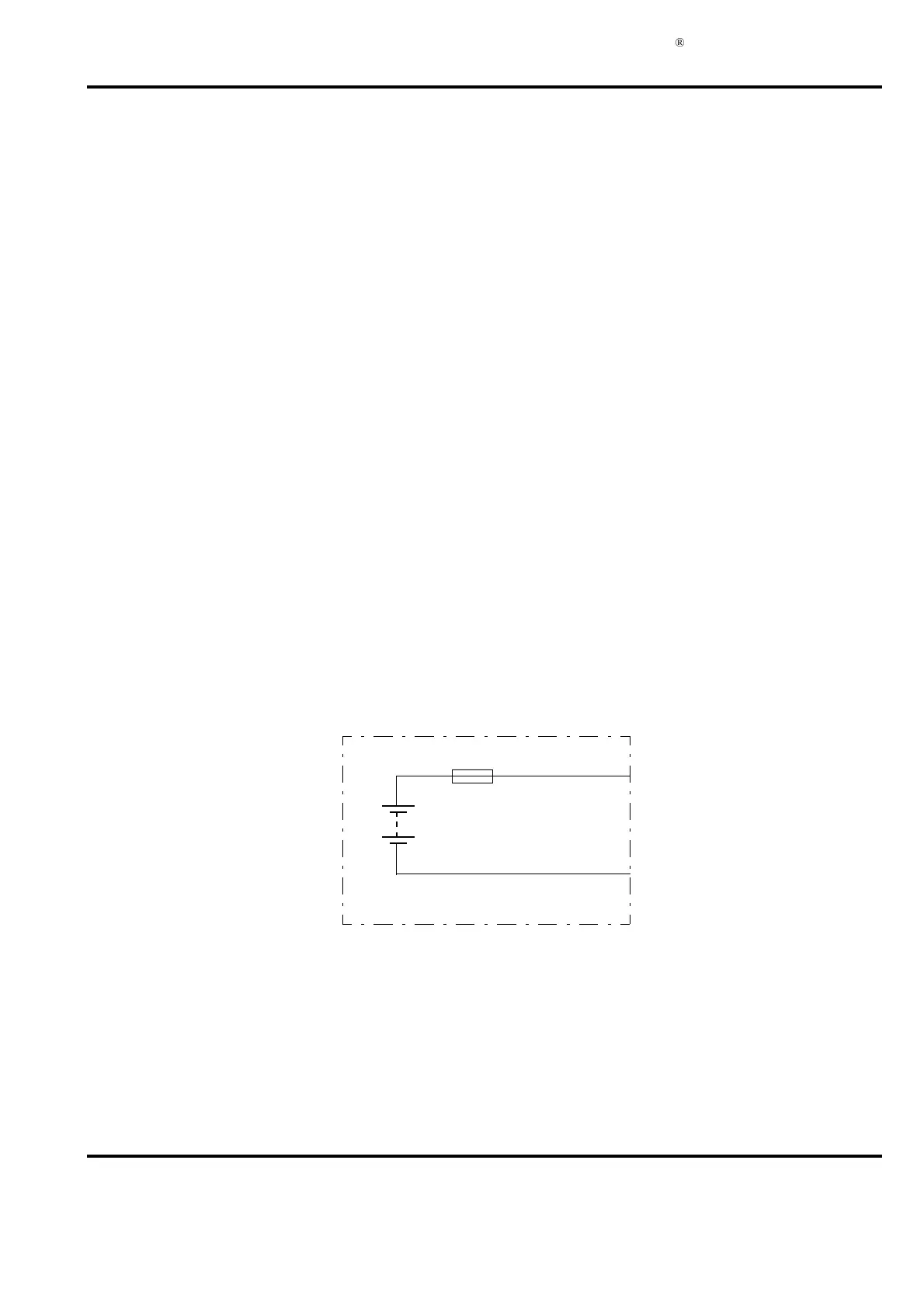

Block Diagram
+12V
0V
20AF
X1:4
X1:1
6%
