ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
$SSHQGL[$ +DUGZDUH0RGXOHV
A-34 3BSE 002 415R701 Rev A
$ 6'GFGF&RQYHUWHU
• Power supply unit for d.c. to d.c. conversion
• Applicable to 24 V and 48 V d.c. networks
• Stabilized d.c. output
• Provides galvanic isolation
• Rack or wall installation.
'HVFULSWLRQ
SD150 is a d.c. voltage converter for 24 V and 48 V d.c. networks.
It is intended to supply the voltage regulator units in a controller
with 24 V d.c. unstabilized voltage. It also provides galvanic isolation
between the d.c. network and the d.c. output.
SD150 includes a mains filter, circuits for limitation of power output,
protection of input against incorrect polarity and overvoltage protection
of the output.
Adjustment controls for output voltage, current limitation and overvoltage
protection are located on the front of the unit.
6LGHYLHZ
)URQWYLHZ

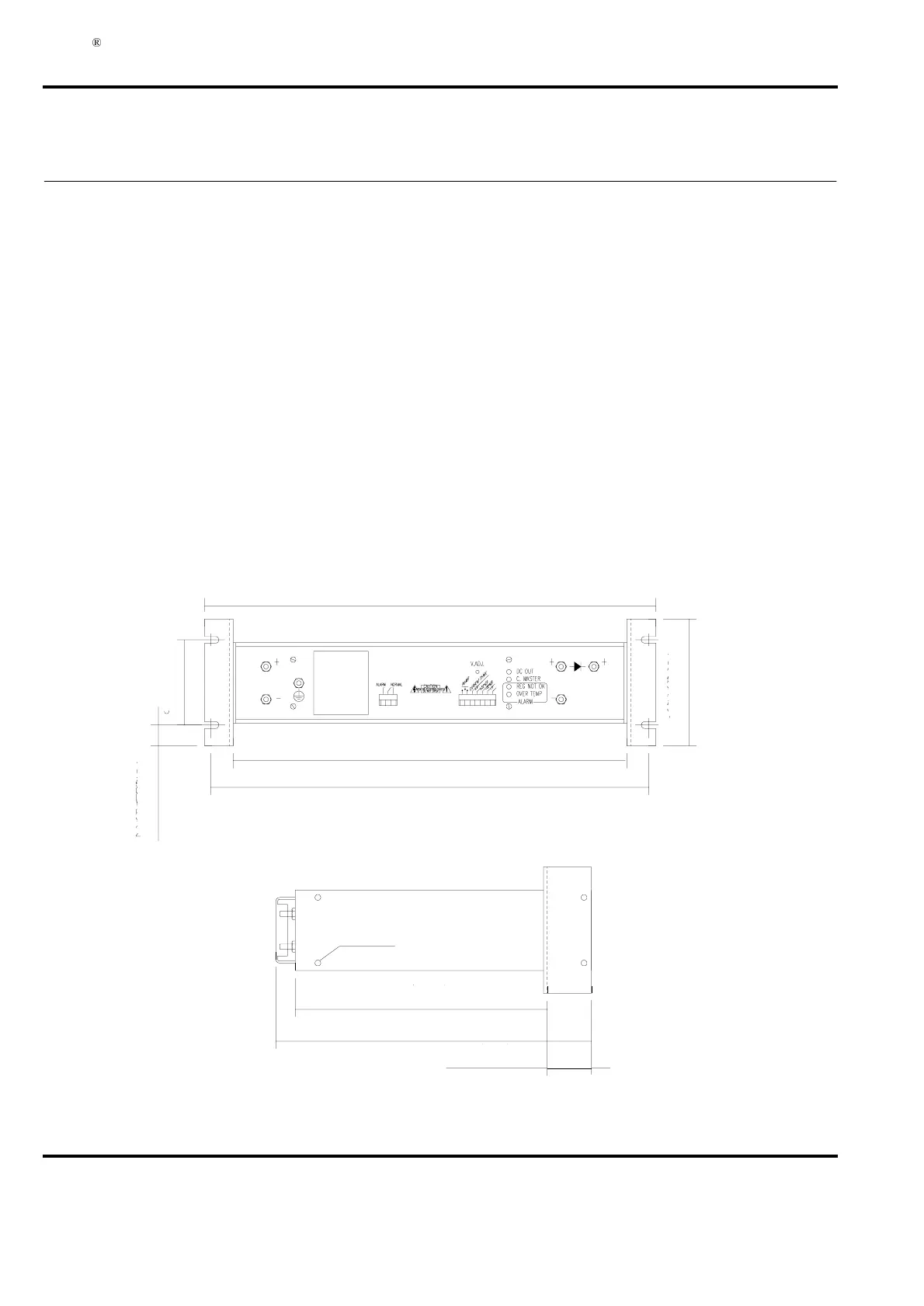

All measurements in mm (in.)
420 (16.5”)
465 (18.2”)
480 (18.8”)
132 (5.2”)
89 (3.5”)
21.5 (0.84”)
316 (12.4”)
337 (13.2”)
50 (1.96”)
M6 (4x)
IN
OUT
