6HFWLRQ$ 6'GFG F&RQYHUWHU
3BSE 002 415R701 Rev A A-35
Technical Data
6DIHW\&ODVVLILFDWLRQ 0HFKDQLFDO'DWD
Class I according to IEC 536 (earth protected) Width 480 mm (18.8”)
3URWHFWLR Q5DWLQJ Depth 337 mm (13.2”)
IP20 according to IEC 529 (IEC 144) Height 132 mm (5.2”), 3 U
,QVXODWLRQ Weight 10 kg (22 lbs.)
Rated insulation voltage 2000 V d.c.
(Input/case or input/output.)

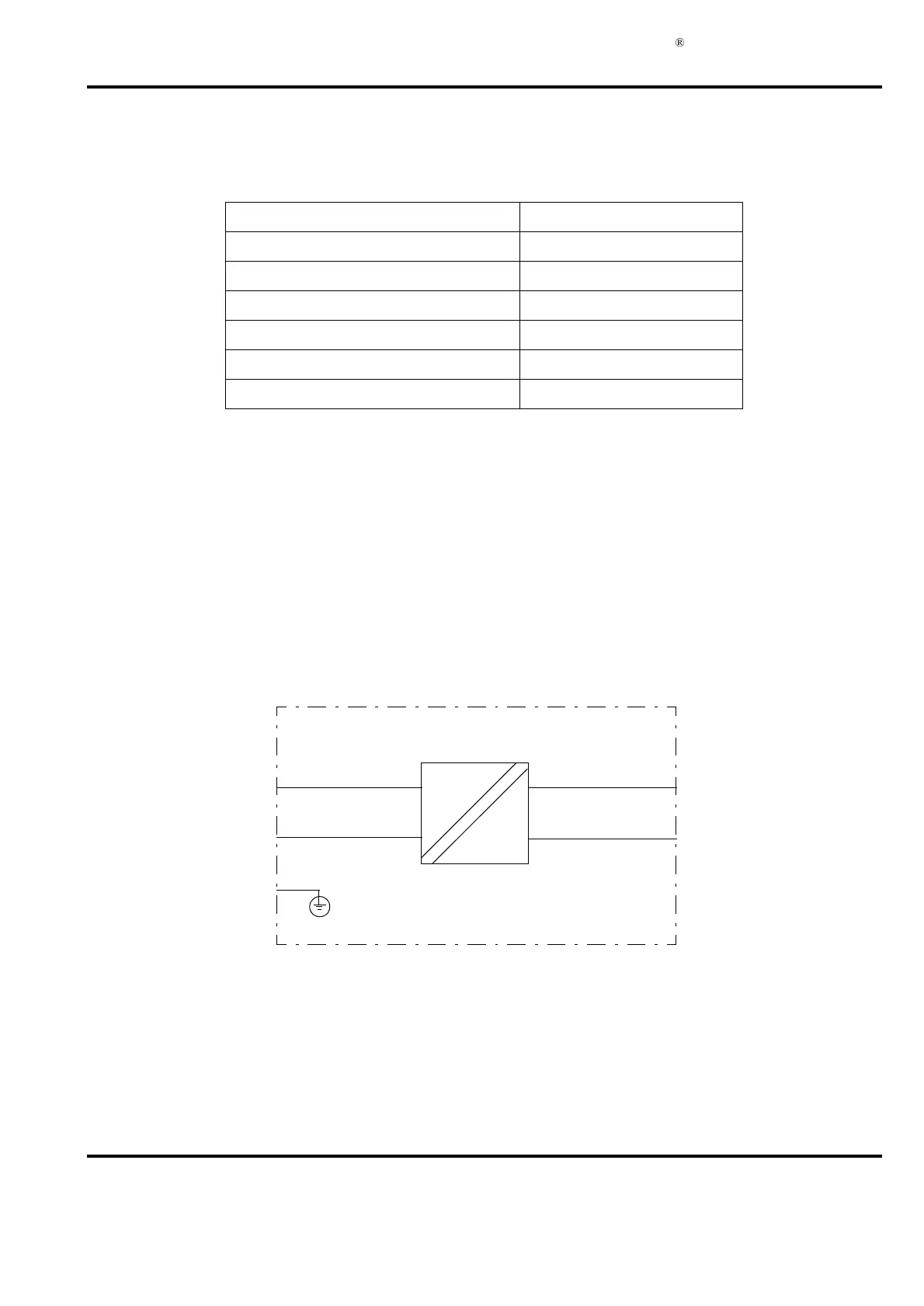

Block Diagram
7DEOH $ 6'2SHUDWLQJ'DWD
,WHP 9DOXH
Input voltage 24 -48 V d.c.
Input voltage variation 80 - 120% of nominal value
Output voltage 24 V d.c.
Maximum load 20 A
Maximum input power 600 W
Overcurrent protection, output 25 A
IN
OUT
+
-
+
-
PE
6'
