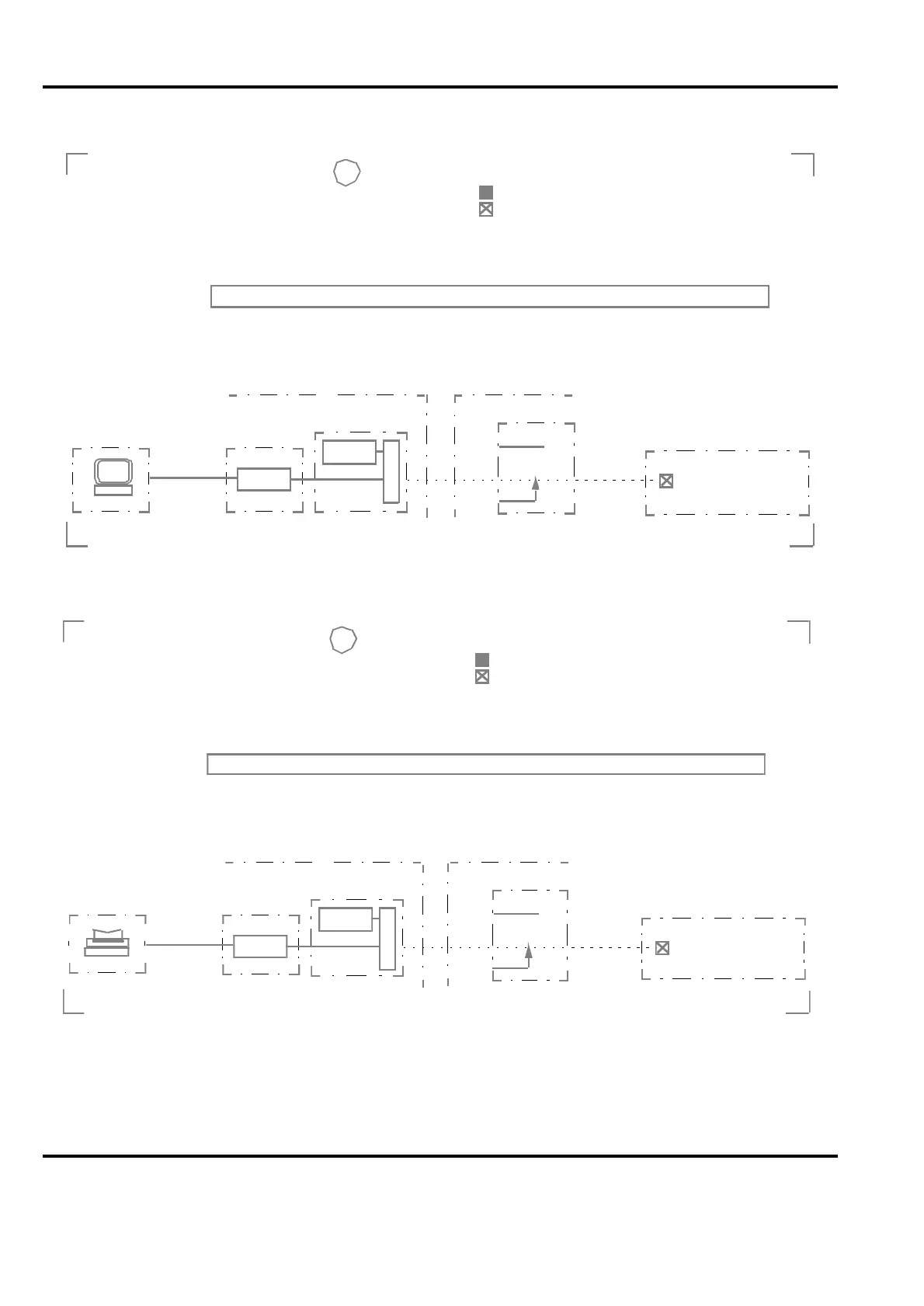

Chapter 5 Maintenance
5-20 3BSE 002 415R701 Rev A
Reference in Advant Cont roller 400 Display:
Presentation:
Function:
Actions at fault:
Block Diagram:
User defined name
green Normal
red cr Fault - Hardware or software
Supervision of terminal MasterView 320 and its communication
1. See the separate manual
MsterView 320
Plain System Message
at fault:
17
Software
System status OS
Terminal 1
Hardware
DIAGN.
PM511
DIAGN.
CI531
RS-232-C
MasterView 320
DB; CI531
NAME
´Name´
IMPL
1/0
*)
*) Not visible on
the element
For example Terminal 1 (2..4)
´Name´
RS 232 CI531 missing Net xx Nod yy
Reference in Advant Cont roller 400 Display:
Presentation:
Function:
Actions at fault:
Block Diagram:
User defined name
green Normal
red cr Fault - Hardware or software
Supervision of printer and its communication
1. Check the communication link with respect to damage, loose connector, broken wire, and so on.
Plain System Message
at fault:
18
Software
System status OS
For example Printer 1
Hardware
DIAGN.
PM511
DIAGN.
CI531
RS-232-C
Printer
2. Check the printer
3. Replace hardware modules; Modems, Printer, CI531 one at a time
For example Printer 1
´Name´
DB; CI531
NAME
´Name´
IMPL
1/0
*)
*) Not visible on
the element
RS 232
CI531 missing Net xx Nod yy
