Advant
®
Controller 450 User’s Guide
Section 5.5.10 User Repair
3BSE 002 415R701 Rev A 5-61
DSAO 120A On-line replacement possible
Note! In general, the electrical connections between
output boards and the process is to be broken before the
board is extracted.
Alternative methods includes:
- Open terminal switches on the connection unit
- Disconnect cable which joins the board and
the connection unit.
DSAO 130 On-line replacement possible
Note! In general, the electrical connections between
output boards and the process is to be broken before the
board is extracted.
Alternative methods includes:
- Open terminal switches on the connection unit
- Disconnect cable which joins the board and
the connection unit.
DSAO 130A On-line replacement possible
Note! In general, the electrical connections between
output boards and the process is to be broken before the
board is extracted.
Alternative methods includes:
- Open terminal switches on the connection unit
- Disconnect cable which joins the board and
the connection unit.
DSAX 110 On-line replacement possible
Note! In general, the electrical connections between
output boards and the process is to be broken before the
board is extracted.
Alternative methods includes:
- Open terminal switches on the connection unit
- Disconnect cable which joins the board and
the connection unit.

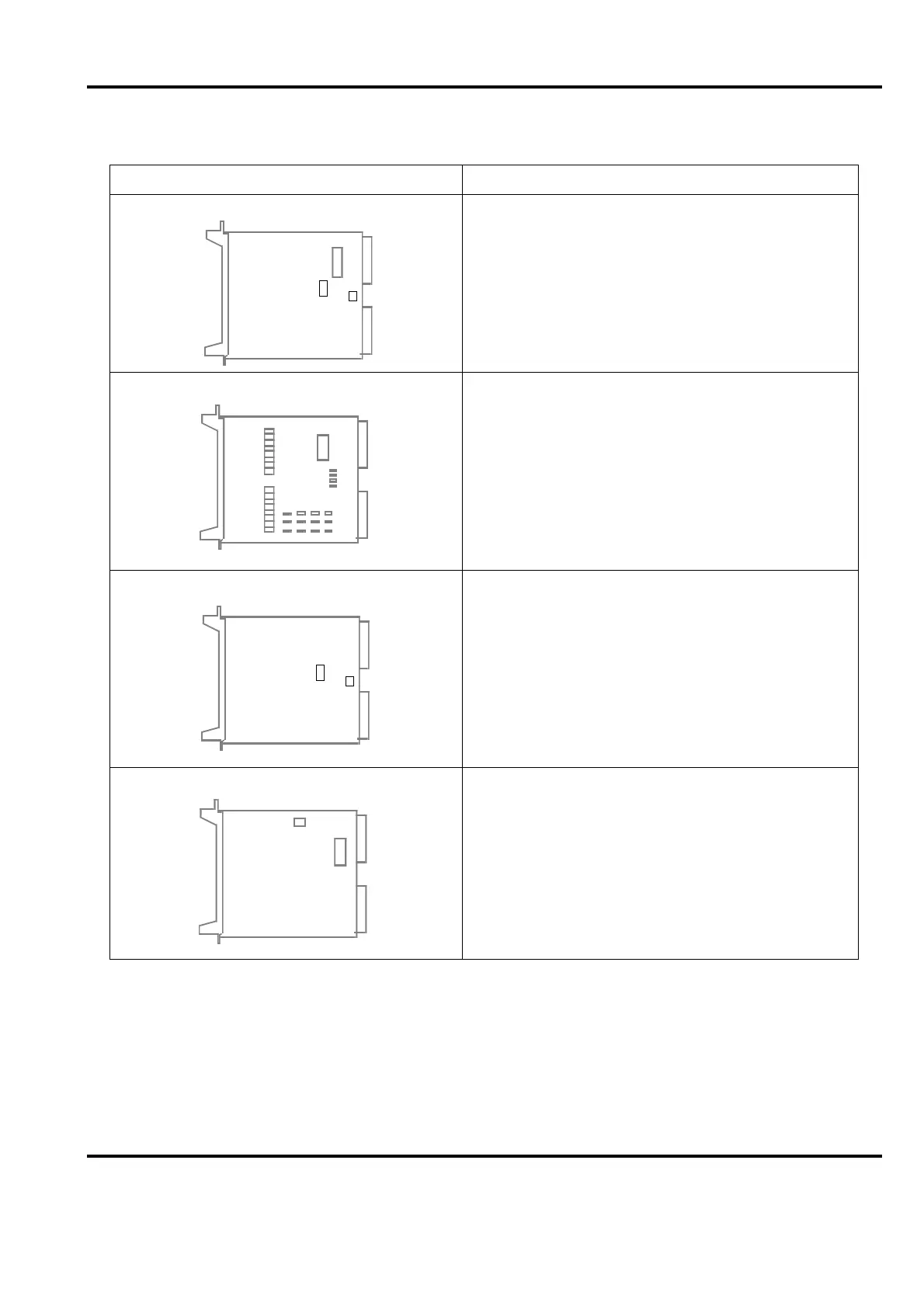

Table 5-2. Replacement Aspects of Individual Board Types, S100 I/O (Continued)
Board type - Jumpering Comments
