ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
6HFWLRQ$ 6;'LVWULEXWLRQ8QLW9GF
3BSE 002 415R701 Rev A A-45
7HFKQLFDO'DWD
,QGLFDWRUV
LED LIVE (green) on module front. Indicates a voltage at the power inlet.
(OHFWULFDO'DWD
Input voltage: 24 V or 48 V d.c.; variation -20 to +20%
Rated input current: 30 A
External fuse 30AT (slow) max. Short-circuit protection for the equipment.
Installation Category: II according to IEC 664
Rated insulation voltage: 60 V (Dielectric test voltage 1000 V a.c.)
)XVHV
F1 - Thermal overload protection with reset button, 10AT (time lag)
F2 - Miniature Fuse Link, 1AF (fast)
0HFKDQLFDO'DWD
Width: 482 mm (19”)
Depth: 240 mm (9.4”)
Height: 43 mm (1.7”), corresponds to 1 U height module in a cabinet
Weight 1 kg (2.2 lbs.)
0DLQWHQDQFH3DUWV
Miniature Fuse Link, 5 x 20 mm 1AF ABB part no. 3BSC 770 001 R44

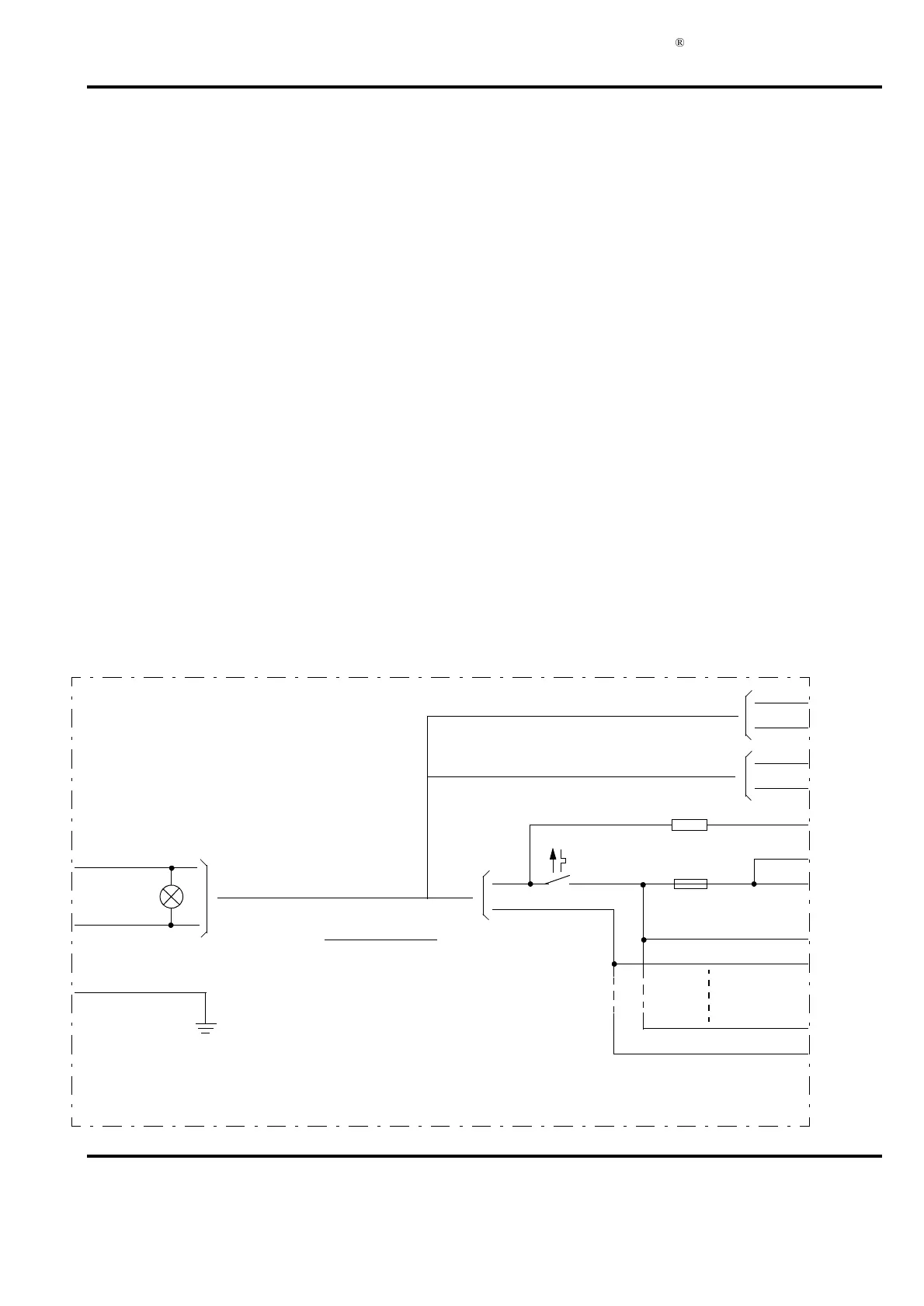

%ORFN'LDJUDP
F1
F2
1AF
10AT
X21
X22
X23
+
-
+
-
+
-
X10
X11
X12
X14
X15
X1
X5
X2 - X4
+
+
+
-
+
-
1
2
1
2
a
b
a
b
R2
6;
GND
LIVE
Terminal Description
X21, X22 screw term. 10 mm
2
power inlet
X23 tab 6.3 x 0.8 mm RFI ground conn.
X10, X11 tabs 6.3 x 0.8 mm non fused power outlets
X1 - X5 male conn. 2-pole fused 10A power outlets
X14, X15 tabs 6.3 x 0.8 mm fused 1A aux. pow. outlets
X12 tabs 6.3 x 0.8 mm R = 3.3 k aux. sign. outlet
