Advant
®
Controller 450 User’s Guide
Section B.2 Dimensions and Weight
3BSE 002 415R701 Rev A B-3

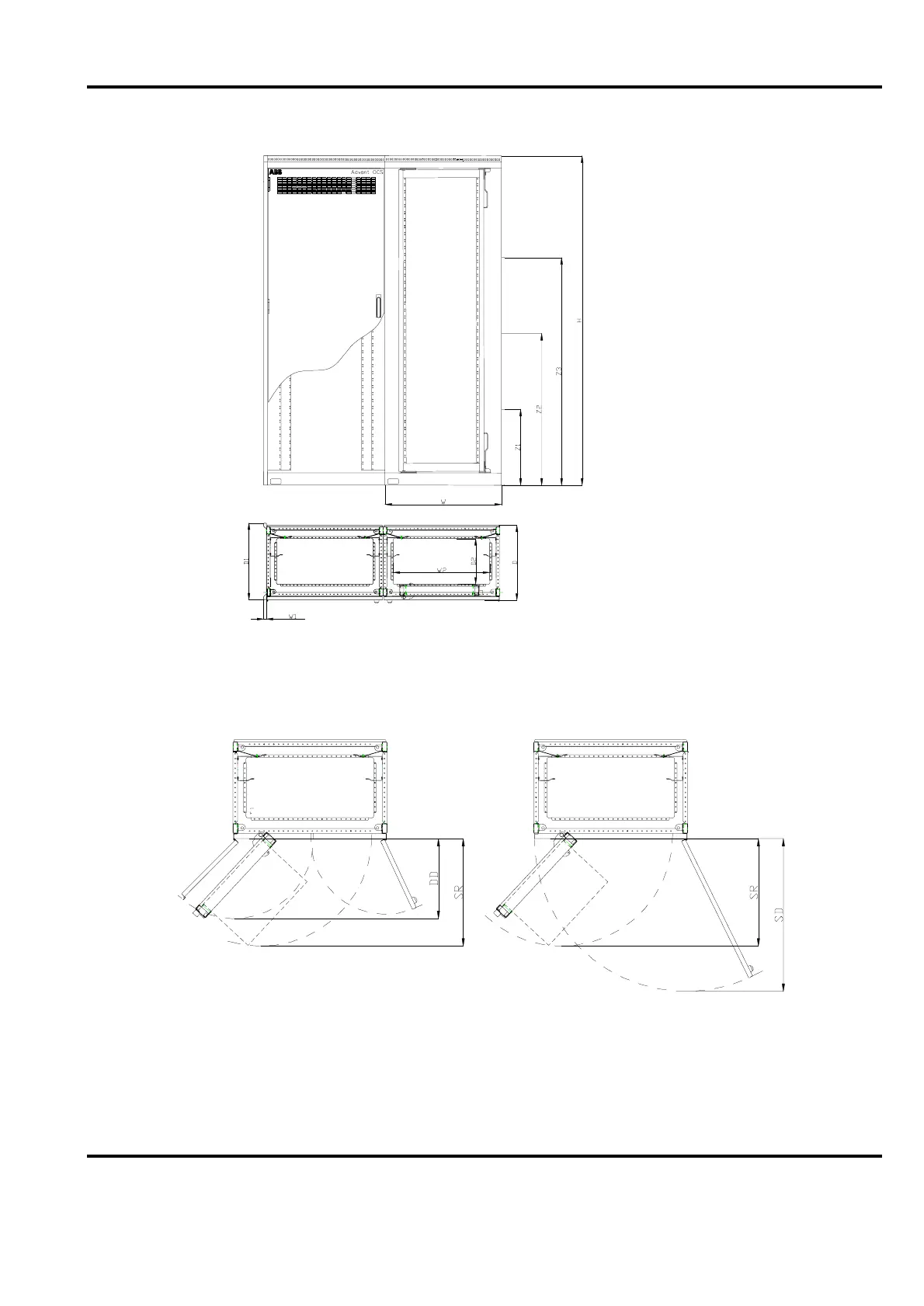

Figure B-2. Mounting Cabinets together - Screw Position
Figure B-3. Swing Radius for Door(s) and Hinged Frame
Double door
Single door
