10
The DCS550
3ADW000379R0501 DCS550 Manual e e

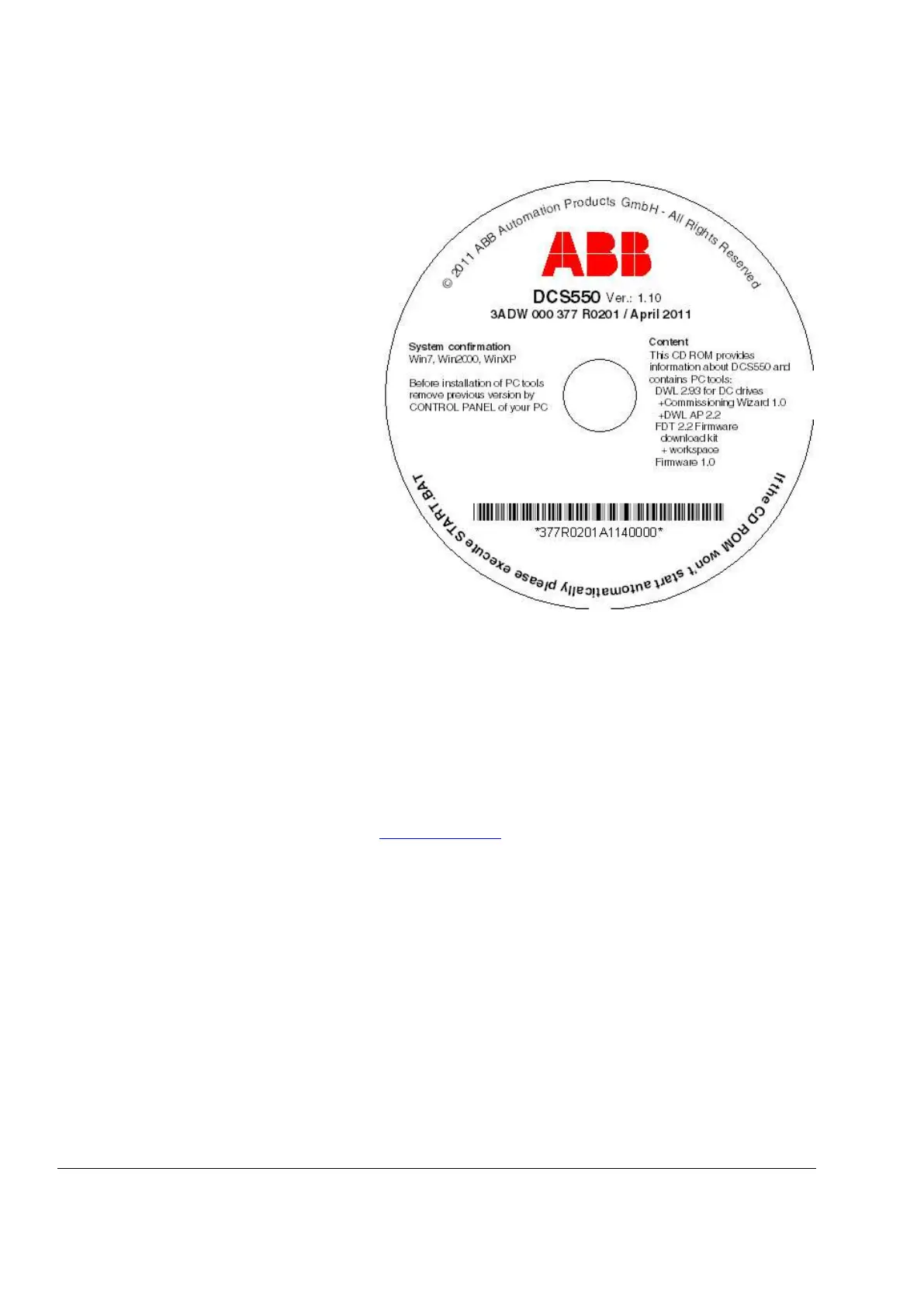

DCS550 Tools CD
Every DCS550 comes together with a DCS550
Tools CD. This CD contains the documentation
and PC tools for the DCS550.
Documentation
The structure of the documentation is according to the following system:
− The DCS550 Technical Catalogue contains information to engineer complete DC drive systems.
− The DCS550 Manual contains information about
1. module dimensions, electronic boards, fans and auxiliary parts,
2. mechanical and electrical installation,
3. firmware and parameter settings
4. start-up and maintenance of the entire drive
5. fault, alarm codes and information for trouble shooting.
− The DCS800 / DCS550 Service Manual contains information for maintenance and repair of the converters.
− Additional information about technical accessories (e.g. hardware extension or fieldbus interfaces) are
handled by separate manuals. See chapter DCS550 Manuals
.
DCS550 PC tools
After inserting the DCS550 CD all programs and documentation necessary to work with the DCS550 can be
installed. This includes:
− DCS550 documentation,
− DriveWindow Light for parameterization, commissioning and service,
− plug ins for DriveWindow Light (DWL AP and the commissioning wizard)
− Hitachi FDT 2.2 for firmware download and
− DCS550 firmware.
