ABB DCS550 User Manual

83
Firmware description
3ADW000379R0501 DCS550 Manual e e

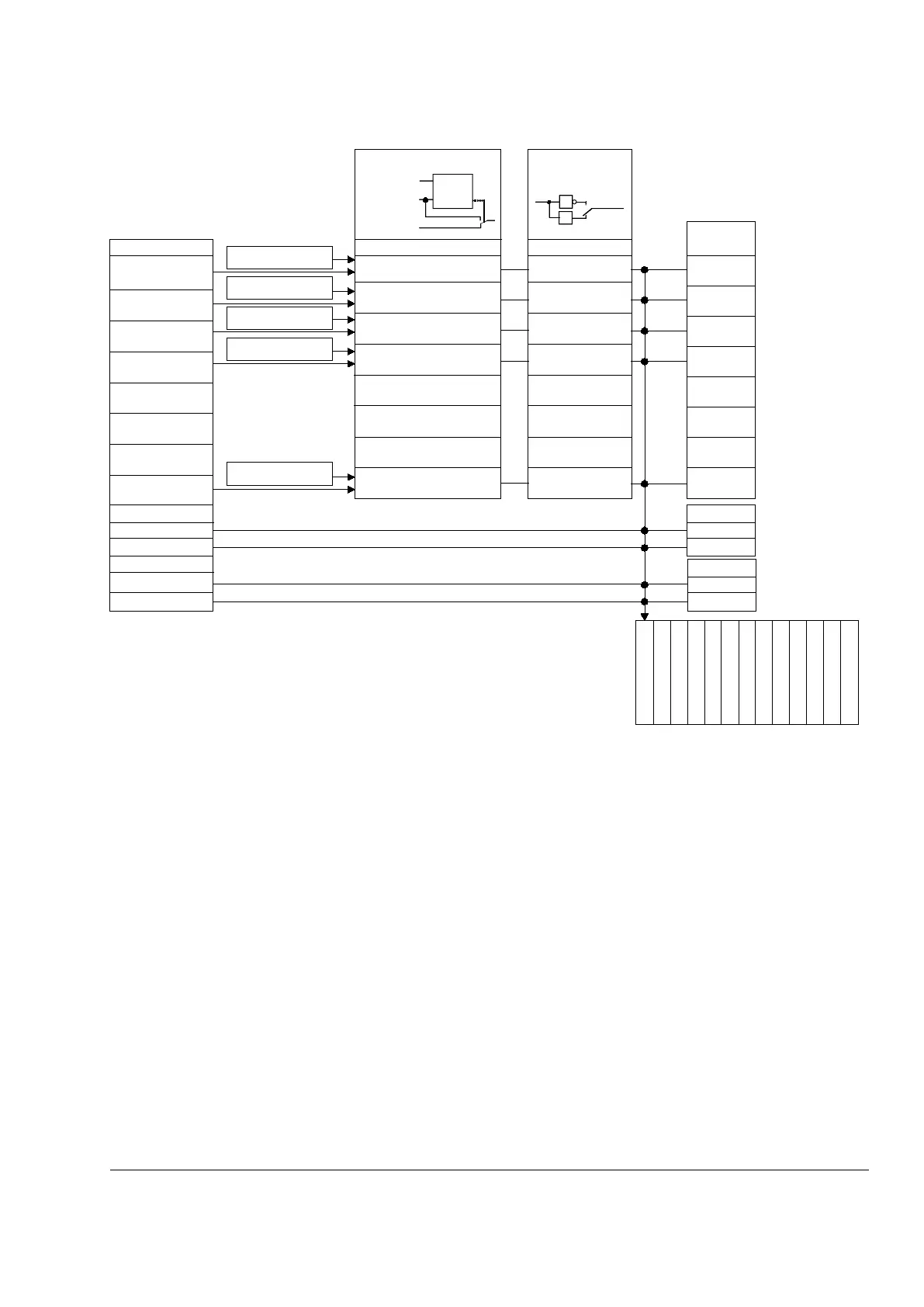

Structure of DO’s
SDCS
X5:1
X5:2
X5:3
X5:4
DO4
DO3
DO2
DO8
bit 3: DO4 bit 7: DO8
bit 6: DO7
bit 5: DO6 bit 4: DO5
DO StatWord (8.06)
bit 0: DO1 bit 1: DO2 bit 2: DO3
bit 11: DO12
bit 8: DO9
bit 9: DO10
bit 10: DO11
DO1
DO1Index (14.01)
DO1BitNo (14.02)
DO2Index (14.03)
DO2BitNo (14.04)
DO3Index (14.05)
DO3BitNo (14.06)
DO4Index (14.07)
DO4BitNo (14.08)
DO8Index (14.15)
DO8BitNo (14.16)
bit 3: DO4
bit 7: DO8
bit 6:-
bit 5: -
bit 4: -
DO CtrlWord (7.05)
bit 0: DO1
bit 1: DO2
bit 2: DO3
bit 11: DO12
bit 8: DO9
bit 9: DO10
bit 10: DO11
-
MainContactorOn
-
-
-
FansOn
FieldOn
MainContactorOn
0
COMP
≠
0
DOxIndex
DO CtrlWord
DO4Index (14.07)
DO8Index (14.15)
DO1Index (14.01)
DO2Index (14.03)
DO3Index (14.05)
DIO ExtModule1
(98.03)
DIO ExtModule2
(98.04)
X21
X22
X21
X22
SDCS-CON-F
Draw_IO_config_a.dsf
SDCS-PIN-F
X96
2
nd
RDIO-01
1
st
RDIO-01
1
1
Inversion of DO's
default
Source selection DO's
