103

Communication

3ADW000379R0501 DCS550 Manual e e

DsetXplus1Val2 (92.02)

104, default

MotSpeed (1.04);

input data word 2 (speed actual) 2

data word from drive

to overriding control

(40005 <= data word 2.2)

DsetXplus1Val3 (92.03)

209, default

TorqRef2 (2.09);

input data word 3 (torque reference) 3

data word from

drive to overriding control

(40006 <= data word 2.3)

up to, …,

DsetXplus7Val1 (92.10)

904, default

Faultword4 (9.04);

input data word 10 (fault word 4) 10

data word from drive

to overriding control

(40022 <= data word 8.1)

Notes:

− New settings of group 52 take effect only after the next power up of the adapter.

− ± 20,000 speed units (decimal) for speed reference [SpeedRef (23.01)] and speed actual [MotSpeed

(1.04)] corresponds to the speed shown in SpeedScaleAct (2.29).

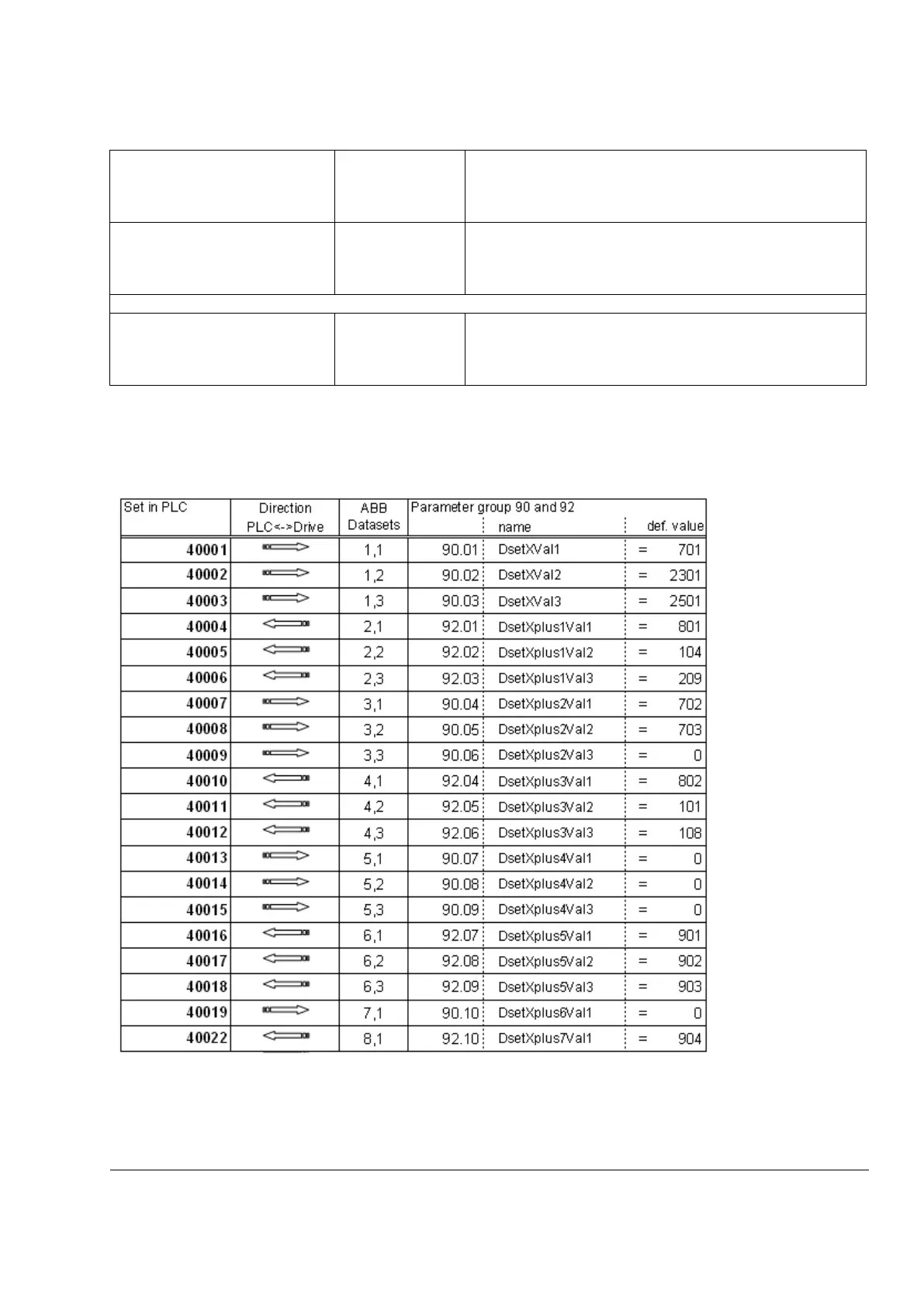

Setting of PLC, parameter groups 90 and 92

Setting of PLC, parameter groups 90 and 92 depending on desired data words

Switch on sequence

Please see the example at the end of this chapter.
