Section D.8.1 Mounting with Brackets
3BSE029380R0101 Rev C D-11
D.8.1 Mounting with Brackets
The optional bracket is intended to facilitate mounting on horizontal surfaces.
1. Mark the location of the mounting holes.
2. Drill the holes and cut threads, according to Section D.18, Dimension Drawing,
3BSE010457, Rev. B.
3. Install according to the instructions in Section D.8, Mounting the Load Cells.
To achieve the best
measuring direction,
turn the load cell to
a suitable position
before drilling the
Mounting
hole

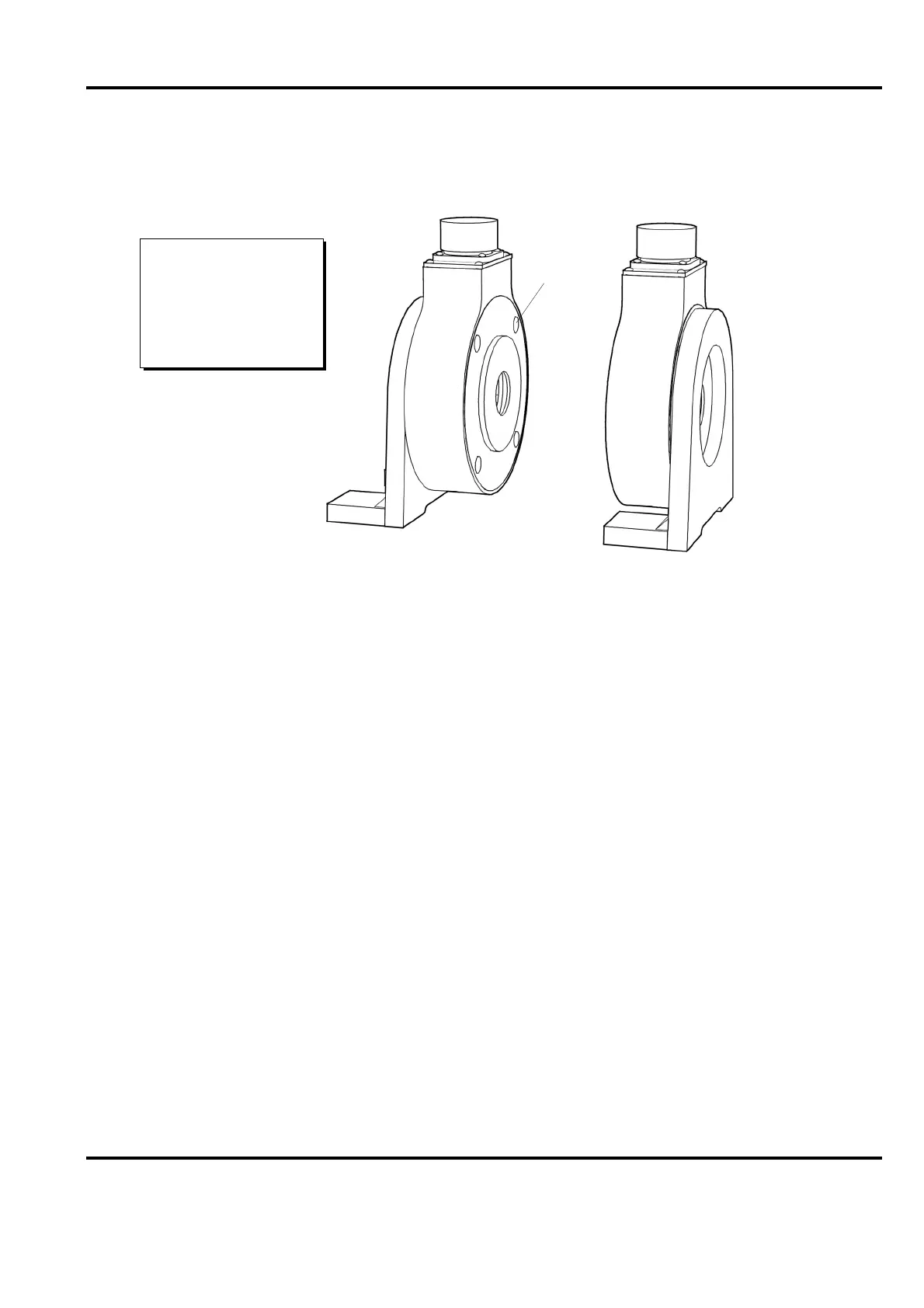

Possible ways of mounting using brackets.
bracket.
