ABB PFEA 112 - Set Object

Tension Electronics PFEA111/112, User Manual
Section 3.12.2 Set Object
3BSE029380R0101 Rev C 3-13
3.12.2 Set Object

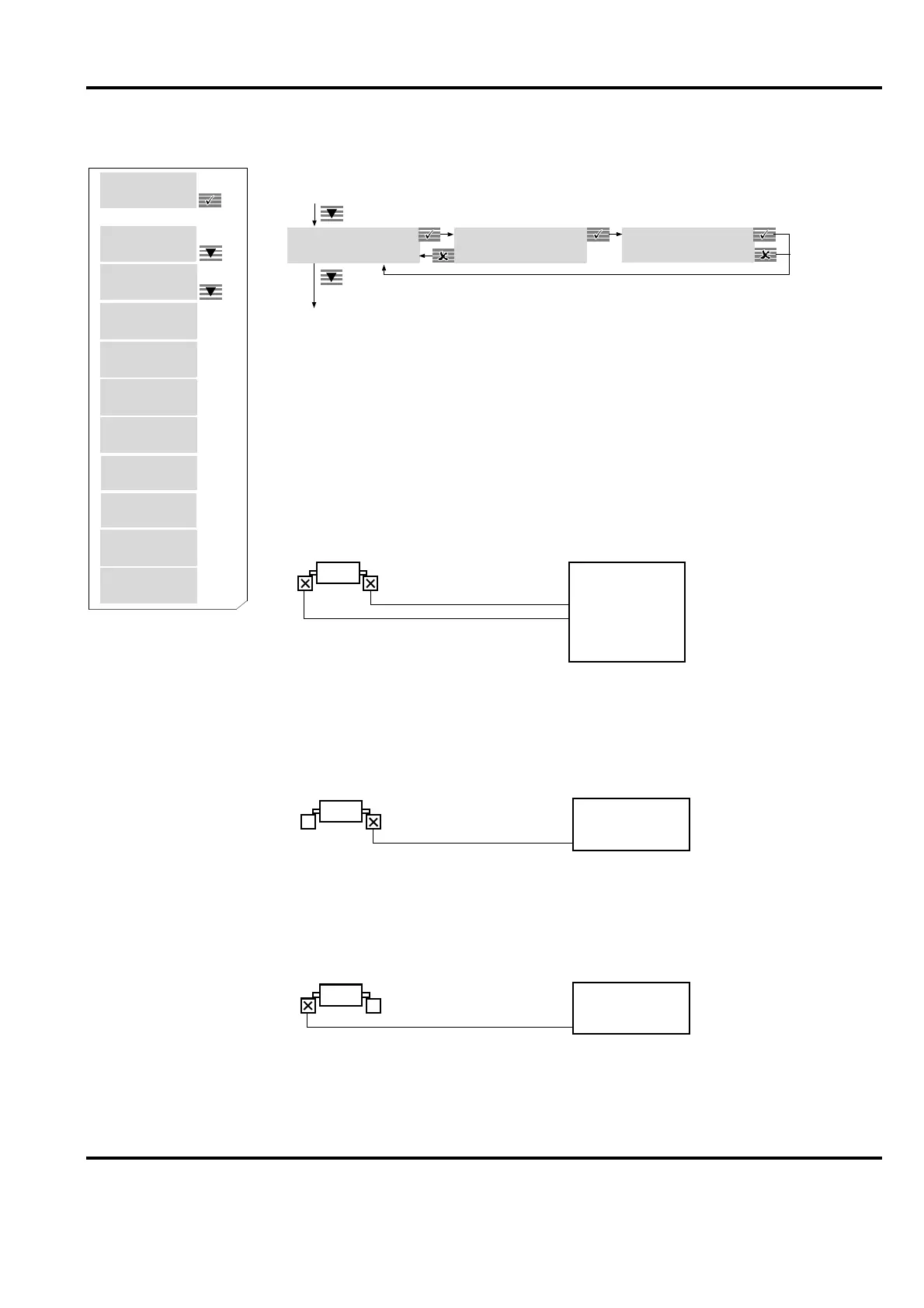

Figure 3-4. Set Object Menus
Use up and down keys to select type of object
[ZZ] from list.
There are three object types that can be selected.
• Standard roll (if both load cell A and B are connected to the roll)
Figure 3-5. Object Type Standard Roll
• Single Side A measurement (if only load cell A is connected to the roll)
Figure 3-6. Object Type Single Side A measurement
• Single Side B measurement (if only load cell B is connected to the roll)
Figure 3-7. Object Type Single Side B measurement
When Single Side A or Single Side B measurement is selected the measured signal is multiplied
by two and presented as web tension on display and analog output.
SetObject
FastSetUp
WebTension
Presentation-
Menu
NominalLoad
ServiceMenu
ZeroSet
SetWrapGain
> 5 s
CurrentOutput
VoltageOutput
Miscellaneous
Menu
SetObject
ZZ
AreYouSure
SetObject
[ZZ]
From PresentationMenu
To NominalLoad
A
B
PFEA111/112
Standard roll
Signal input
AB
Two load cells with separate signals
Single Side A measurement
One load cell signal
A
PFEA111/112
Signal input
A
Single Side B measurement
One load cell signal
B
PFEA111/112
Signal input
B
