Tension Electronics PFEA111/112, User Manual
Section 2.6 Installing Junction Box PFXC 141
3BSE029380R0101 Rev C 2-11
2.6 Installing Junction Box PFXC 141
PFXC 141 are normally used for connection of Pressductor
®
load cells where the distance
between load cells and tension electronics is long. The cables fixed to the load cells and the
cable to the control unit are to be connected to the junction box.
The junction box PFXC 141 shall be mounted adjacent to the load cells and located in a
protected position easily accessible for service.
The dimensions of the junction box are shown in Figure 2-11.
Holes not used must be plugged.
For circuit diagram see Appendix A.5.3 Junction Box PFXC 141.

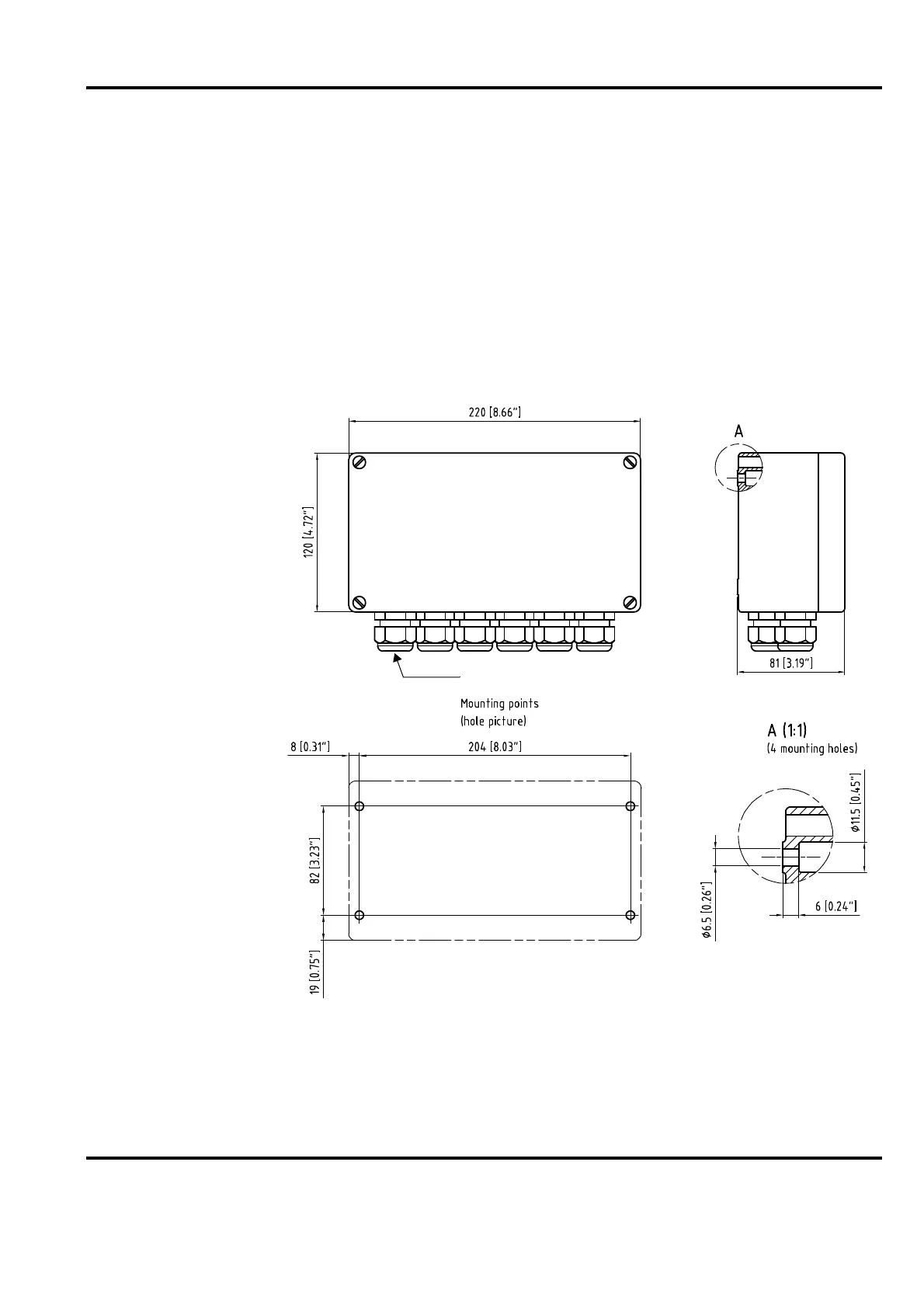

Figure 2-11. Dimensions of Junction Box PFXC 141
D = 6–12 mm (Cable gland Pg16)
(6 x)
