Tension Electronics PFEA111/112, User Manual
Appendix A Technical Data for Tension Electronics PFEA111/112
A-8 3BSE029380R0101 Rev C
A.5 Optional Units
A.5.1 Insulation Amplifier PXUB 201

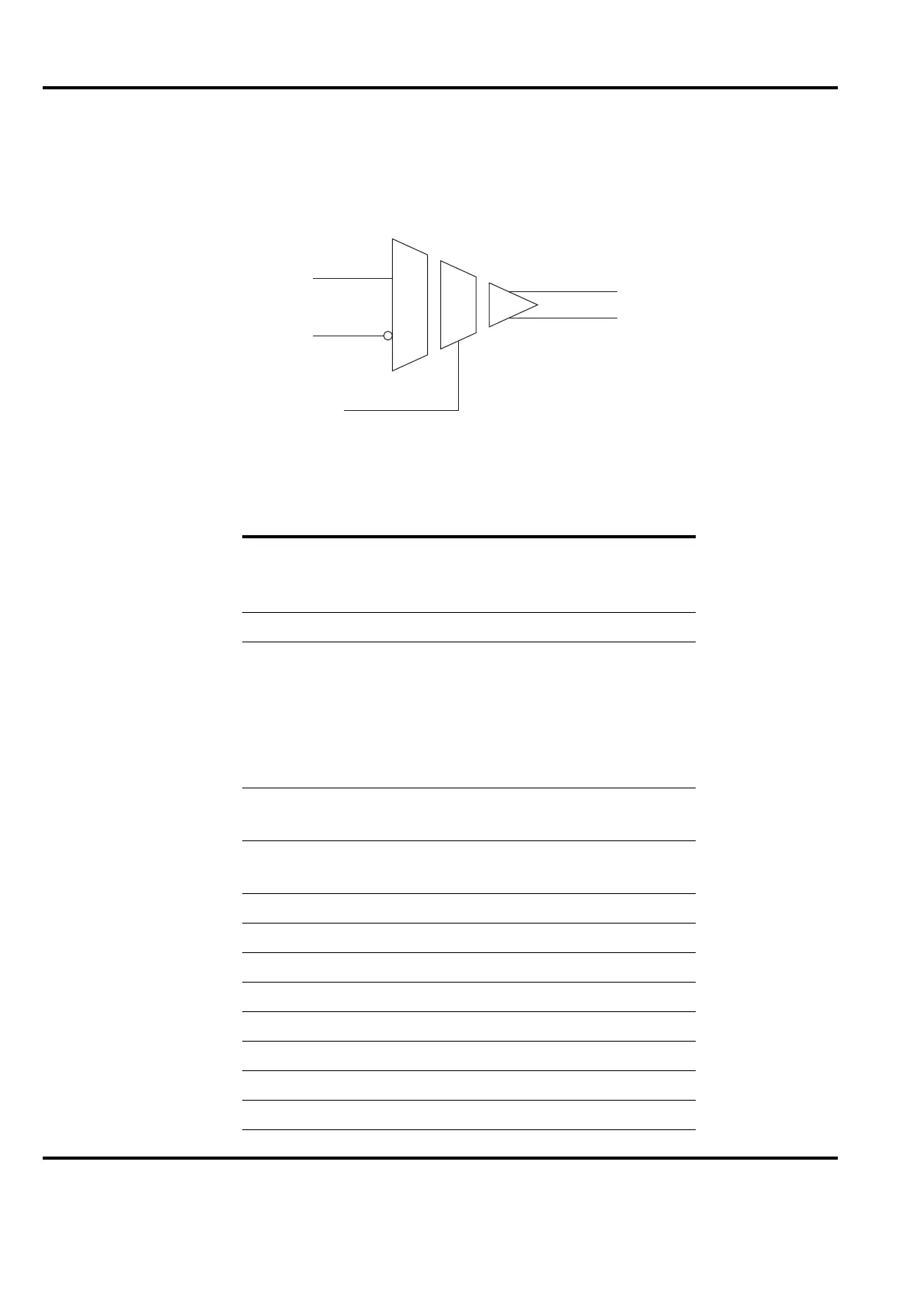

Figure A-2. Insulation Amplifier PXUB 201
Table A-11. Data for Insulation Amplifier PXUB 201
Type Data
Power supply 20 - 253 V AC/DC
AC: 48 - 62 Hz, 2 VA
DC: 1 W
Current consumption 10 mA + external load, at 24 V
Signal range Input Output
0 ± 10 V 0 ± 10 V
0 - 10 V 4 - 20 mA
0 - 5 V 4 - 20 mA
0 ± 10 V 0 ± 20 mA
0 - 5 V 0 - 20 mA
Input resistance 1 M at 10 V input
500 k at 5 V input
Max. load 10 mA for voltage output
500 for current output
Rise time 50 s or 50 ms, selectable
Ripple 10 mV
p-p
Bandwidth (-3 dB) 10 kHz or 10 Hz
Rated insulation voltage 600 V, basic insulation
Insulation test voltage 4 kV
Dimensions (l × w × d) 99 × 12.5 × 111 mm
Weight 150 g
Mounting DIN-rail 35 mm
+
–
+24 V
