Chapter 3 Commissioning
3-28 3BSE029380R0101 Rev C
3.13.5 Handling of Measurement Data through Profibus
Two web tension measurement values are transferred through Profibus:
• Value 1 has the same step response time as "voltage output"
• Value 2 has the same step response time as "current output".
The scaling of "voltage output" and "current output" does not affect the measurement values
transferred through Profibus.
If zero set has been performed, the zero set values are transferred through Profibus.
For scaling of Profibus measurement values, see Section 3.13.5.2.
Each measurement value has 16 bit, 2-complement representation (Integer 16).
3.13.5.1 Miscellaneous Meny
Use this menu for scaling Profibus measuring values

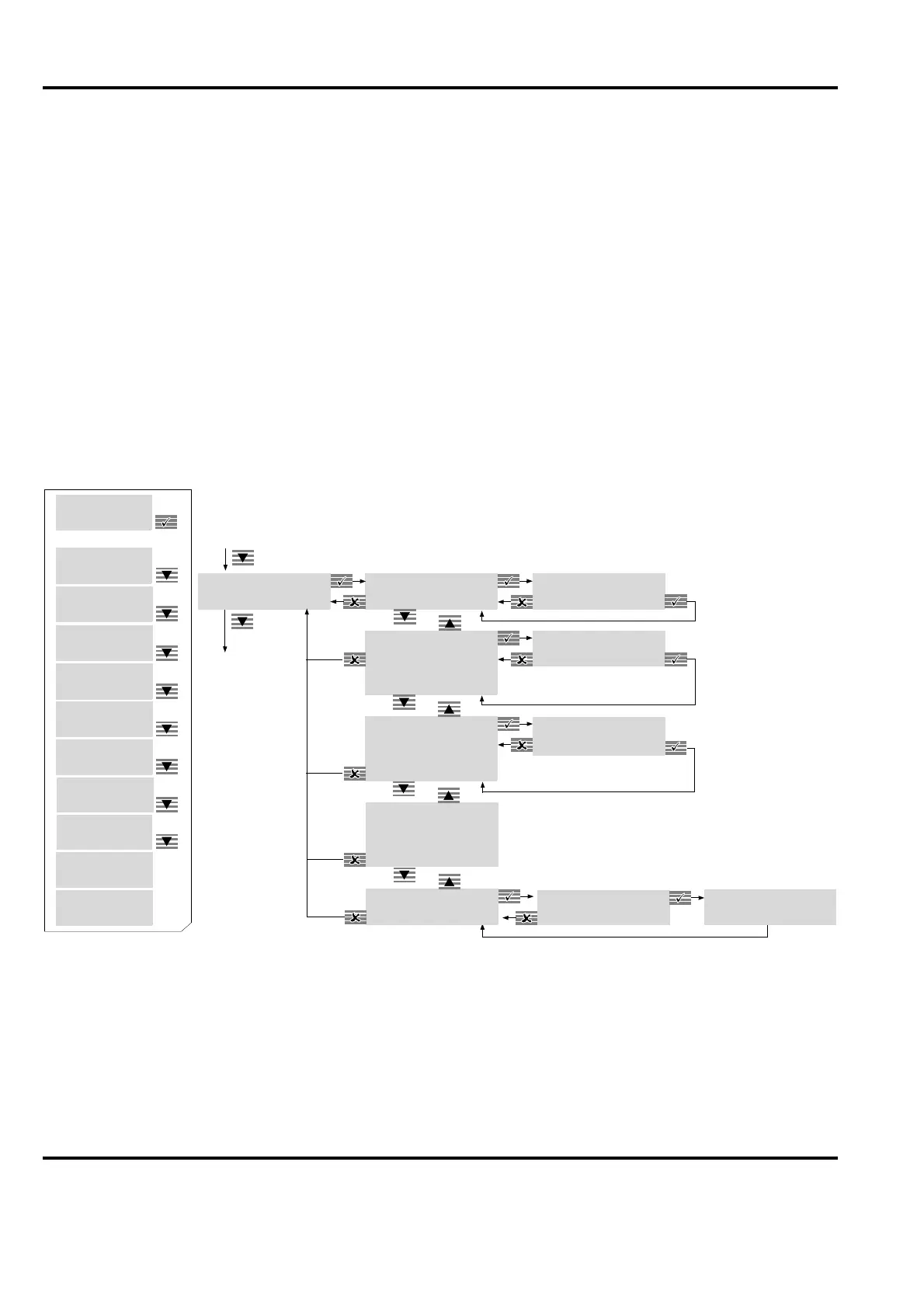

Figure 3-20. Profibus Scaling
SetObject
FastSetUp
WebTension
Presentation-
Menu
NominalLoad
ServiceMenu
ZeroSet
SetWrapGain
> 5 s
CurrentOutput
VoltageOutput
Miscellaneous
Menu
From CurrentOutput
To
Miscellaneous
Menu
Profibus On/Off
[ZZ]
ProfibusAddress
[ZZZ]
Profibus On/Off
ZZ
ProfibusAddress
ZZZ
(Only shown if
Profibus is On)
MeasuringRange
XXX.XXX N
(Only shown if
Profibus is On)
ServiceMenu
SetFactory
Default
AreYouSure ActionDone
(shown for 1 s.)
LoadDivision
XXX.XXX N
(Only shown if
Profibus is On)
MeasuringRange
[XXX.XXX] N
