)SDL: 1T@MSHSX 4DWSáM@LDáSXODáCHL5MH !QSHBKDáMTLADQ )SDLáCDRHFM@SHNM
OB
-@SDQH@Ká7DKCNWá
Mass (weight) : App. 135kg
Manufacturing drawing: 3BSE0306638D3400
REV DESCRIPTION DATE DEPT./INIT.
E Change to all english version, redrawn and format A4 2009-04-23 PA/FM/GF/JK
F Drawing in S.W. was autocad. 2011-04-26 PA/FM/GF/SF
G Table "Technical material" added 2012-12-18 PA/FM/GF/SF
Technical material
Material description Material specification Material designation
Steel, through
hardened
Hardness 300-400 HB
Yield stress > 500MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
34CrNiMo6+QT900
Toolox 33, Toolox 44
S690(+QT)
W.nr. 1.6582+QT900
ASTM 4340
or equivalent
Martensitic stainless
Steel
Hardness 300-400 HB
Yield stress > 400MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
X12CrMoS13+AT
X20Cr13+A
W.nr.1.4005+AT, 1.4021+A
ASTM 416, 420
or equivalent
!
!!
!
"
""
"
!
!!
!
C
duction, use or disclosure to third parties
without express authority is strictly forbidden.
ABB AB
We reserve all rights in this document and
in the information contained therein. Repro-
"
""
"
2012-12-20
Cont.sh./
No of sh.
SheetLang. Rev.
Project or order number :
Modify date :
Document number
Appr.
Prep.
Resp.dept
Product type designation :
Product information :
Product family :
661130 Bansp.mätare VPBT/HPBT
ABB AB
Håkan F Wintzell
2012-12-19Sven Fischer
1
1G
en

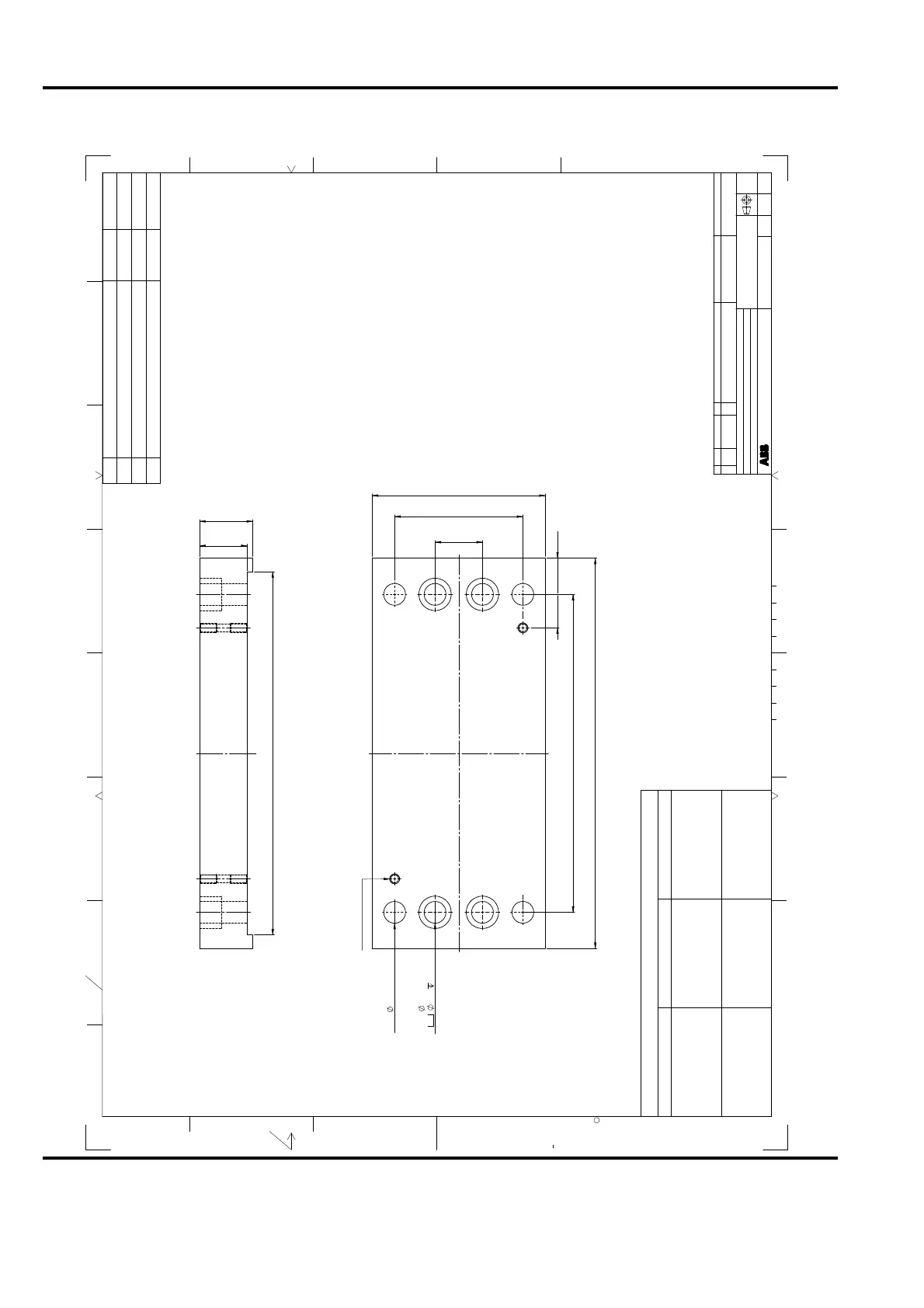

Adapterplatta PFTL 201D/DE
Adapter plate PFTL201D/DE
Dimension drawing
3BSE008918
PA
PA
PA
FM/GF
FM/GF
FM/GF
Document status:
Approved
/
/
/
Customer erference :
700
for lifting eye bolt
(4x) M16
125
570
85
230
310
(4x) 39 THRU
58 39
(4x) 39 THRU
85
95
651
