Tension Electronics PFEA111/112, User Manual
Section F.7.2 Mounting
3BSE029380R0101 Rev C F-9

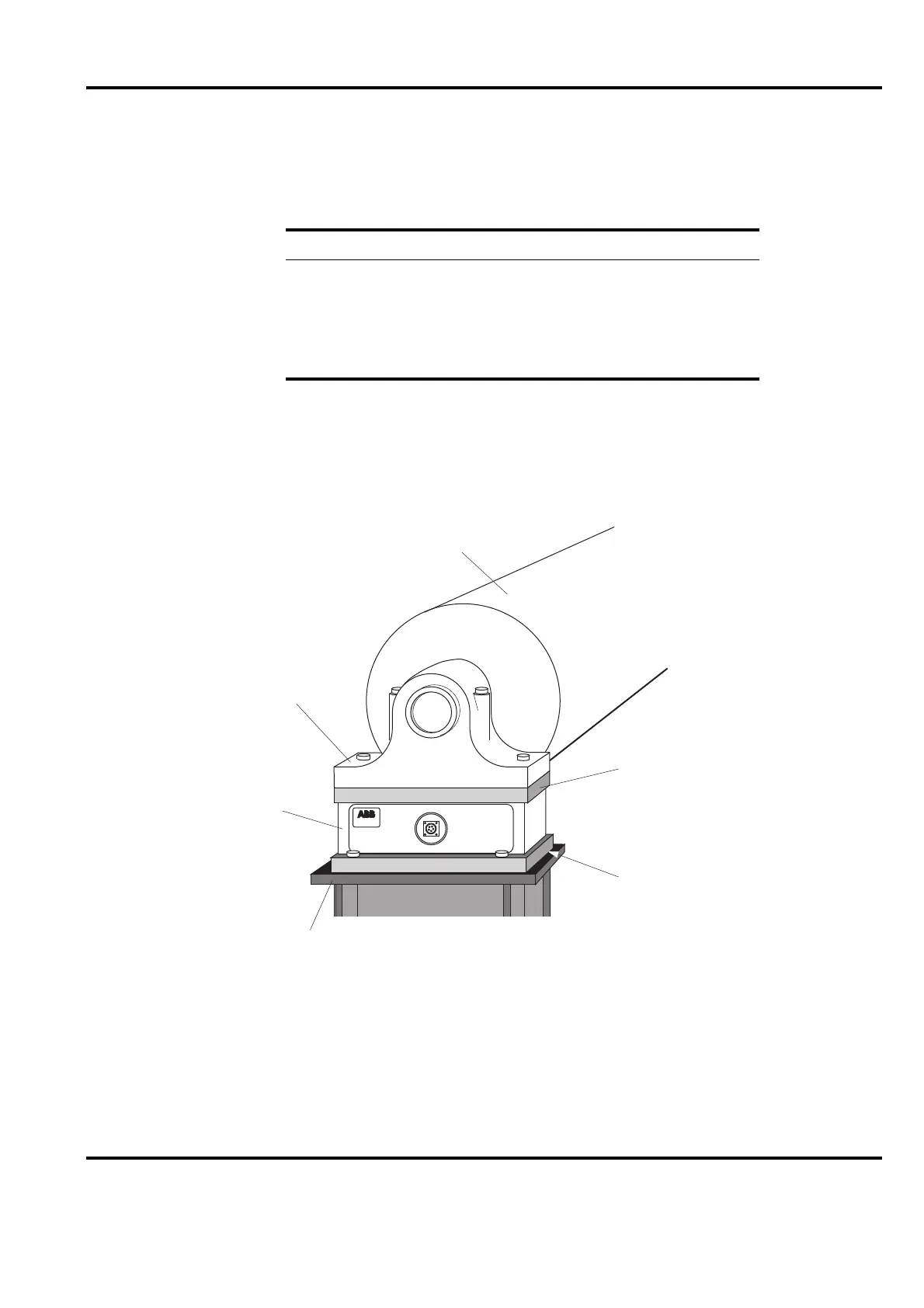

Figure F-3. Typical Installation
Table F-1. MoS
2
lubricated, galvanized Screws According to ISO 898/1
Strength class Dimension Tightening torque
8.8
(1)
(12.9) M16 170 (286) Nm
Table F-2. Waxed Screws of Stainless Steel According to ISO 3506
Strength class Dimension Tightening torque
A2-80
(1)
(1) Strength class 12.9 is recommended for 50 kN load cells, when large
overloads are expected, especially if the fixing screws are subjected to
tension.
M16 187 Nm
Pressductor
System
Rulle
Övre mellanläggsplatta
Lastcell
Undre mellanläggsplatt
Lagerhus
Fundament
Upper adapter plate
Lower adapter plate
Roll
Bearing housing
Load cell
Foundation
