Tension Electronics PFEA111/112, User Manual
Section G.7.3 Mounting
3BSE029380R0101 Rev C G-9
* Strength class 12.9 must be used for load cells PFTL 201C-50 kN and PFTL 201D-100 kN.

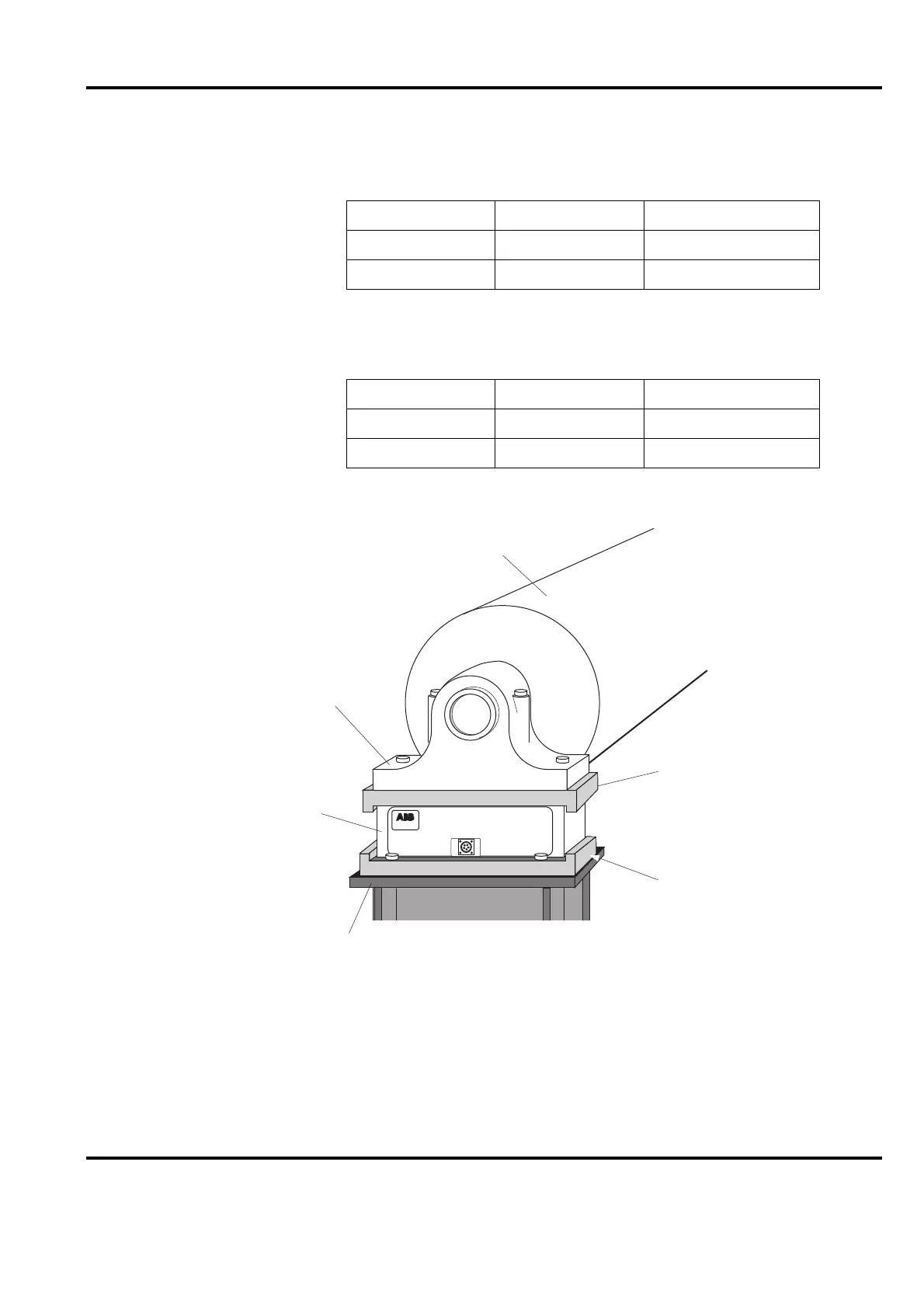

Figure G-3. Typical installation
Table G-1. MoS
2
lubricated, galvanized screws according to ISO 898/1
Strength class Dimension Tightening torque
8.8 * (12.9) M24 572 (963) Nm
8.8 * (12.9) M36 1960 (3310) Nm
Table G-2. Waxed screws of stainless steel according to ISO 3506
Strength class Dimension Tightening torque
A2-80 * M24 629 Nm
A2-80 * M36 2160 Nm
Upper adapter plate
with stop blocks
Lower adapter plate
with stop blocks
Roll
Bearing housing
Load cell
Foundation
