ABB REF615 L User Manual

COM0031
3xRJ-45
COM0032
2xLC+RJ-45+
ST+ARC
COM0033
3xRJ-45+
ST+ARC
COM0034
LC+2xRJ-45+
ST+ARC
GUID-AF5B9B14-A1F1-4EED-96AD-DA0665226860 V3 EN

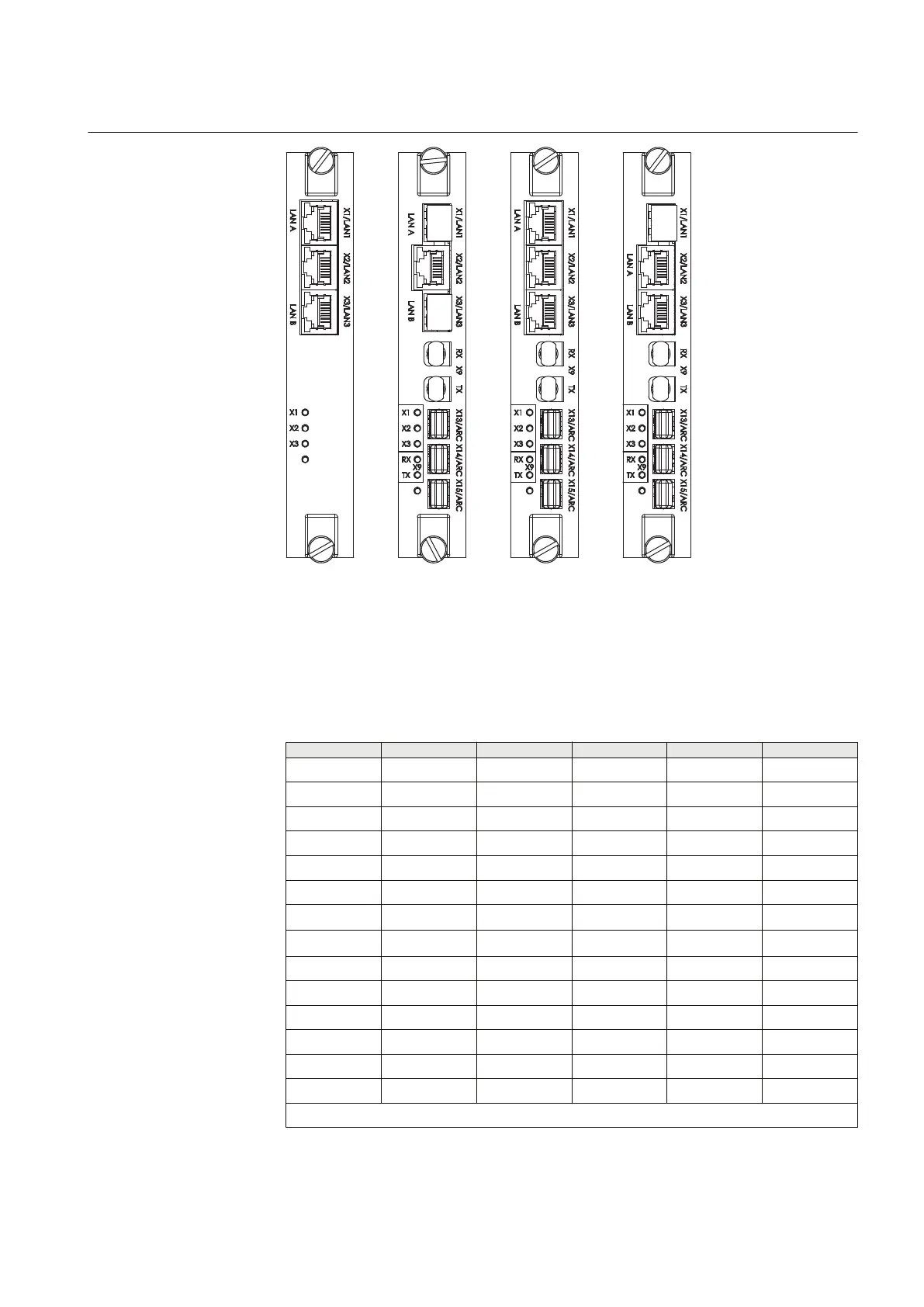

Figure 463: Communication module options
Table 665: Station bus communication interfaces included in communication modules
Module ID
RJ-45 LC EIA-485 EIA-232 ST
COM0001 1 - - - -
COM0002 - 1 - - -
COM0003 - - 1 - -
COM0005 1 - - - -
COM0006 - 1 - - -
COM0007 - - 1 - -
COM0008
1)
2 - 1 - 1
COM0010
1)
2 - 1 - 1
COM0011 1 - 1 - -
COM0012 - 1 1 - -
COM0013 1 - 1 - -
COM0014 - 1 1 - -
COM0023 1 - 1 1 1
COM0031 3 - - - -
Table continues on next page
1YHT530004D05 D Section 13
IED physical connections
615 series 853
Technical Manual

ABB REF615 L Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Weight	Approx. 1.5 kg
Communication Protocols	IEC 61850, Modbus RTU, DNP3
Protection Functions	Overcurrent, Earth fault, Thermal overload, Under/Over voltage, Under/Over frequency
Enclosure	IP20
