Aerotech Ensemble HLe User Manual

-IO Expansion Board Ensemble HLe
3.4. Analog Inputs (TB304)
To interface to a single-ended (non-differential) voltage source, connect the signal common of the source to
the negative input and the analog source signal to the positive input. A floating signal source should be
referenced to the analog common as shown in Figure 3-8.
Table 3-15: Differential Analog Input 1 Specifications
Specification Value
(AI+) - (AI-)
+10 V to -10 V
(1)
Resolution (bits) 16 bits
Resolution (volts) 305 µV
1. Signals outside of this range may damage the input
N O T E : Analog Input 0 on the I/O board is tied to Analog Input 0 on J205 (see Section 2.5.7.). TB304 lets
you connect to all of the analog inputs in one place (do not connect to AIN0 at both TB304 and J205).
Table 3-16: Analog Inputs Connector Pin Assignment (TB304)
Pin# Description In/Out/Bi
1 Analog Common N/A
2 Non-Inverting Analog Input 0 Input
3 Inverting Analog Input 0 Input
4 Non-Inverting Analog Input 1 Input
5 Inverting Analog Input 1 Input
6 Analog Common N/A
7 Non-Inverting Analog Input 2 Input
8 Inverting Analog Input 2 Input
9 Non-Inverting Analog Input 3 Input
10 Inverting Analog Input 3 Input
Table 3-17: Mating Connector Part Numbers for the Analog Input Connector
Aerotech P/N Phoenix P/N
Wire Size: mm
2
[AWG]
10-Pin Terminal Block ECK01294 1881406 0.5-0.080 [20-28]

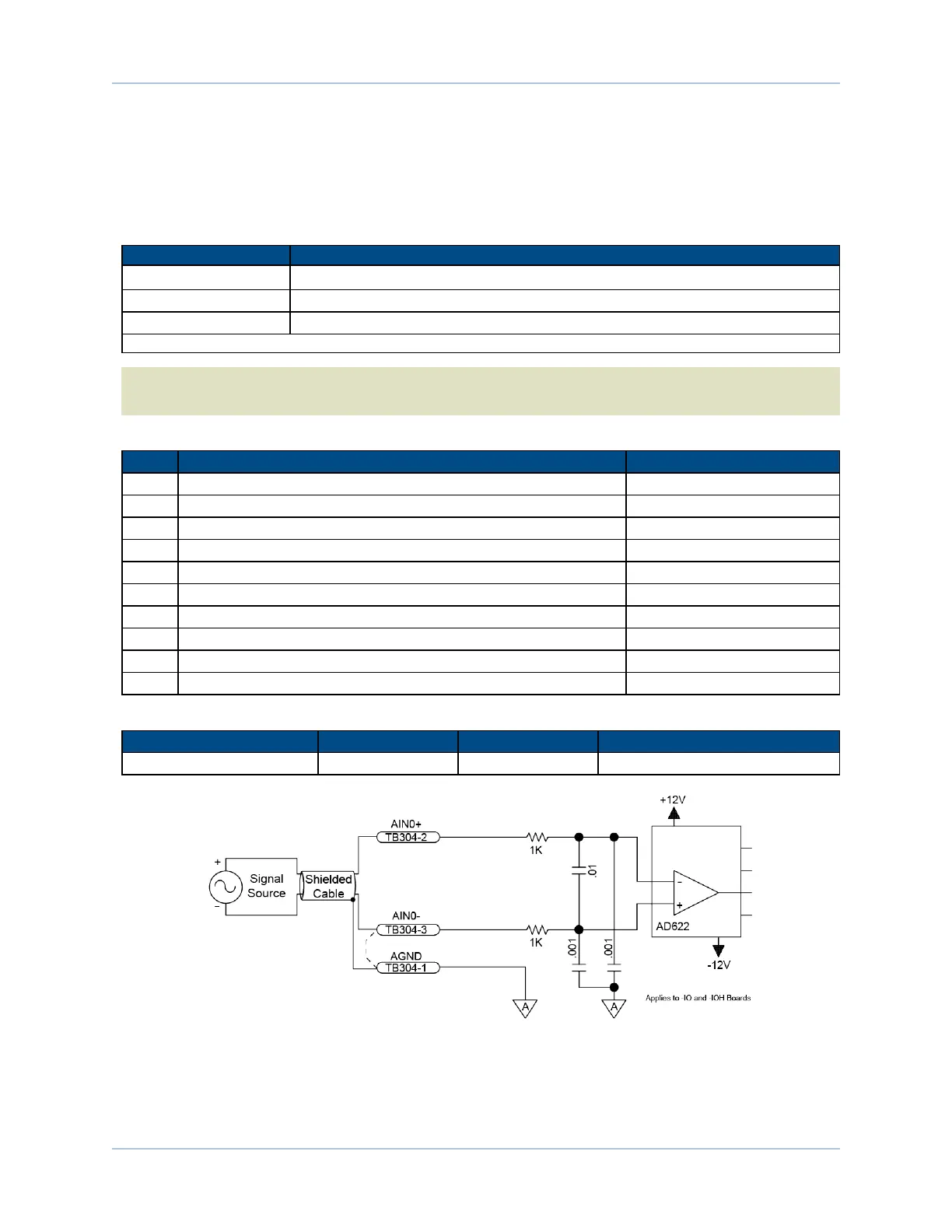

Figure 3-8: Analog Input Typical Connection (TB304)
www.aerotech.com Chapter 3 77
