Aerotech Ensemble HLe User Manual

Installation and Configuration Ensemble HLe
2.3.1.1. RS-422 Line Driver Encoder (Standard)
The standard encoder interface accepts an RS-422 differential quadrature line driver signal. Invalid or
missing signals will cause a feedback fault when the axis is enabled.
An analog encoder is used with the -MXH option (refer to Section 2.3.1.3. for more information).
Table 2-12: Encoder Specifications
Specification Value
Encoder Frequency 10 MHz maximum (25 nsec minimum edge separation)
x4 Quadrature Decoding 40 million counts/sec

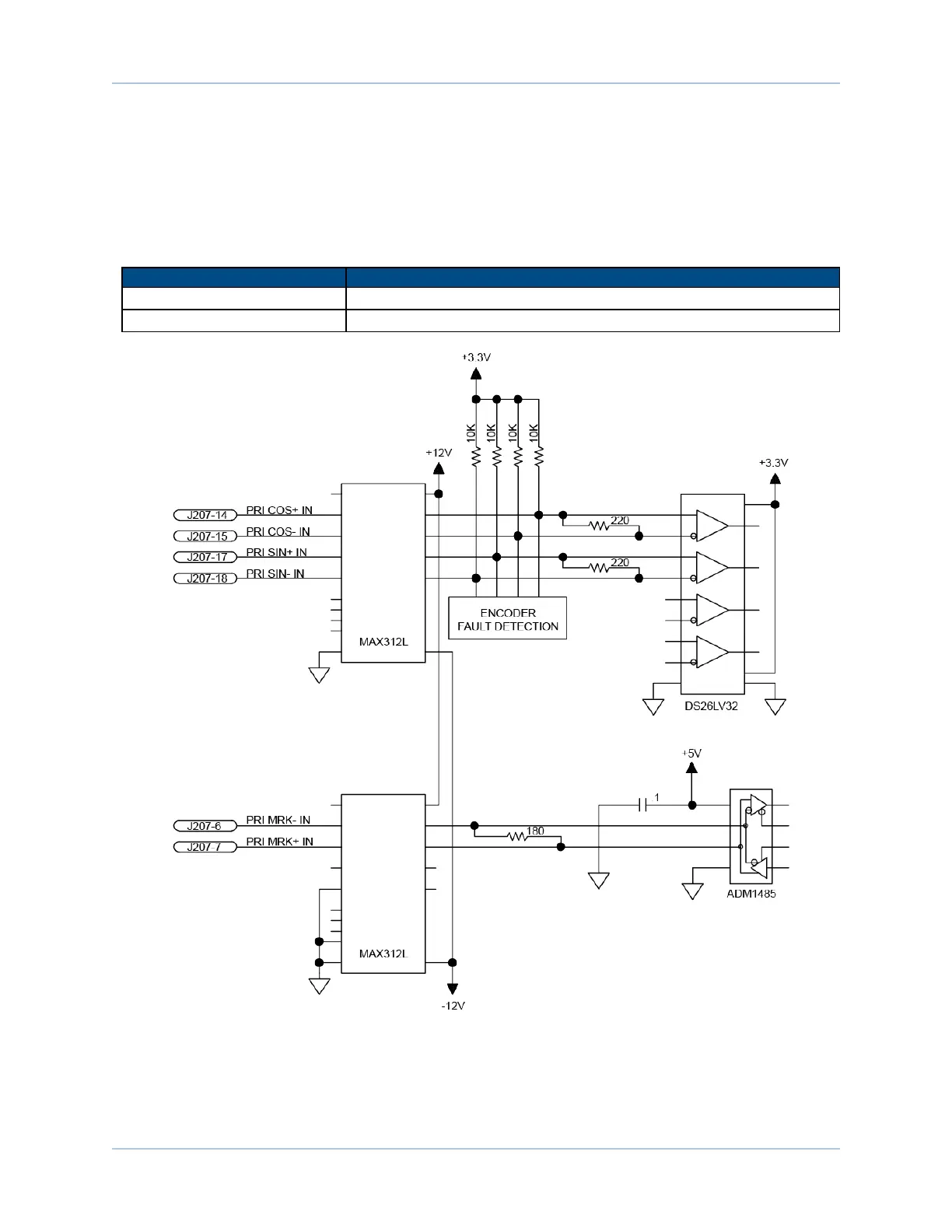

Figure 2-12: Line Driver Encoder Interface (J207)
www.aerotech.com Chapter 2 37
