Aerotech Ensemble HLe User Manual

26 Chapter 2 www.aerotech.com
2.1.2. Motor Supply Connections
N O T E : This product requires two power supply connections. The Motor Supply and Control Supply
must both be connected for proper operation.
Motor power is applied to the Ensemble HLe Motor Supply connector (refer to Figure 2-2 for locations).
Refer to local electrical safety requirements to correctly size external system wires and match wires to
fuses or circuit breakers.
l The recommended wire size is 2.0 mm
2
(#14 AWG).
l External fuses or a circuit breaker (10 A maximum, time delay type) are required for the AC1 and AC2
inputs.
W A R N I N G : Do not operate the Ensemble HLe without the safety ground connection in place.
W A R N I N G : Do not operate the Ensemble HLe without proper branch protection.

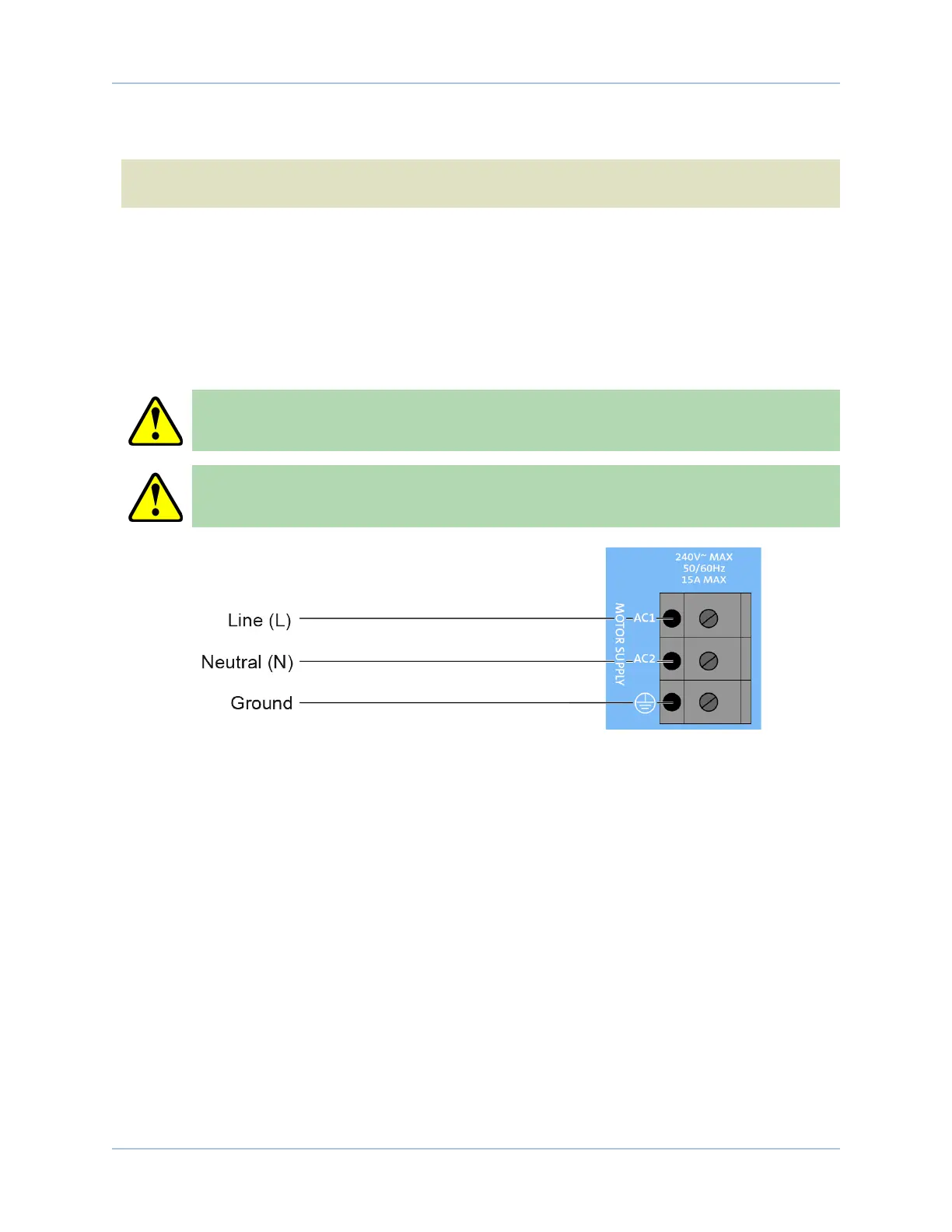

Figure 2-2: Motor Bus Input Connections
Ensemble HLe Installation and Configuration
