Aerotech Ensemble HLe User Manual

Installation and Configuration Ensemble HLe
2.3.4. Encoder Fault Interface (J207)
The encoder fault input is for use with encoders that have a fault output. This is provided by some
manufactures and indicates a loss of encoder function. The active state of this input is parameter
configurable and the controller should be configured to disable the axis when the fault level is active.
Table 2-16: Encoder Fault Pin on the Motor Feedback Connector (J207)
Pin# Description In/Out/Bi
23 Encoder Fault Input Input

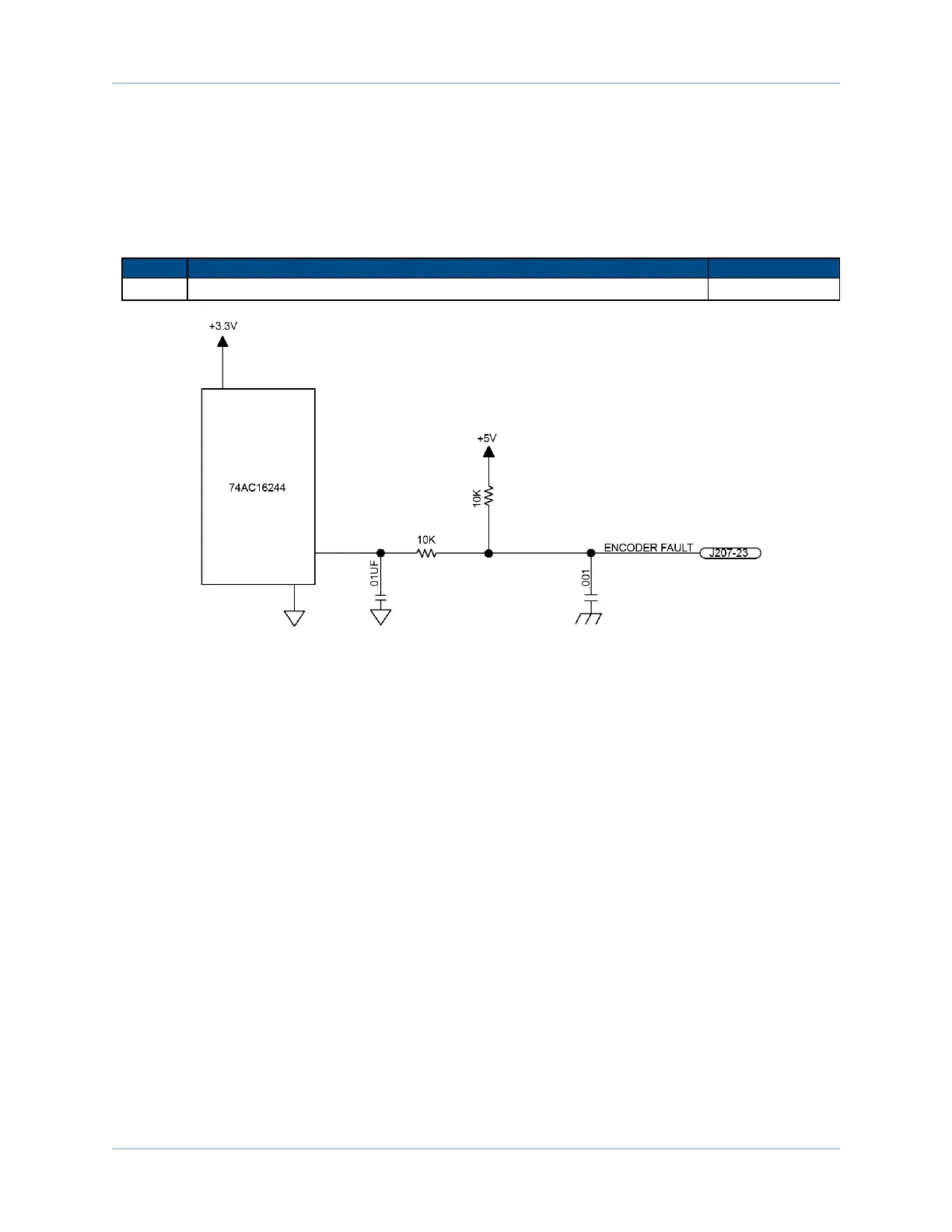

Figure 2-20: Encoder Fault Interface Input (J207)
www.aerotech.com Chapter 2 45
