Aerotech Ensemble HLe User Manual

Installation and Configuration Ensemble HLe
2.8. RS-232 Interface (J206)
Connecting the RS-232 port to a user’s PC requires a standard cable (not a null modem).
Table 2-43: RS-232 Connector Pinout (J206)
Pin# Description In/Out/Bi Connector
1
+5 Volt Power Output
(1)
Output
2 RS-232 Transmit Output
3 RS-232 Receive Input
4 Reserved Output
5 Ground N/A
6 Reserved Output
7 Reserved Input
8 Reserved Input
9 Reserved N/A
(1) Total user +5 V power is limited to 500 mA.
Table 2-44: Mating Connector Part Numbers for the the RS-232 Connector (J206)
Mating Connector Aerotech P/N Third Party P/N
9-Pin D-Connector ECK00137 Cinch DE-9P
Backshell ECK01021 Amphenol 17E-1724-2

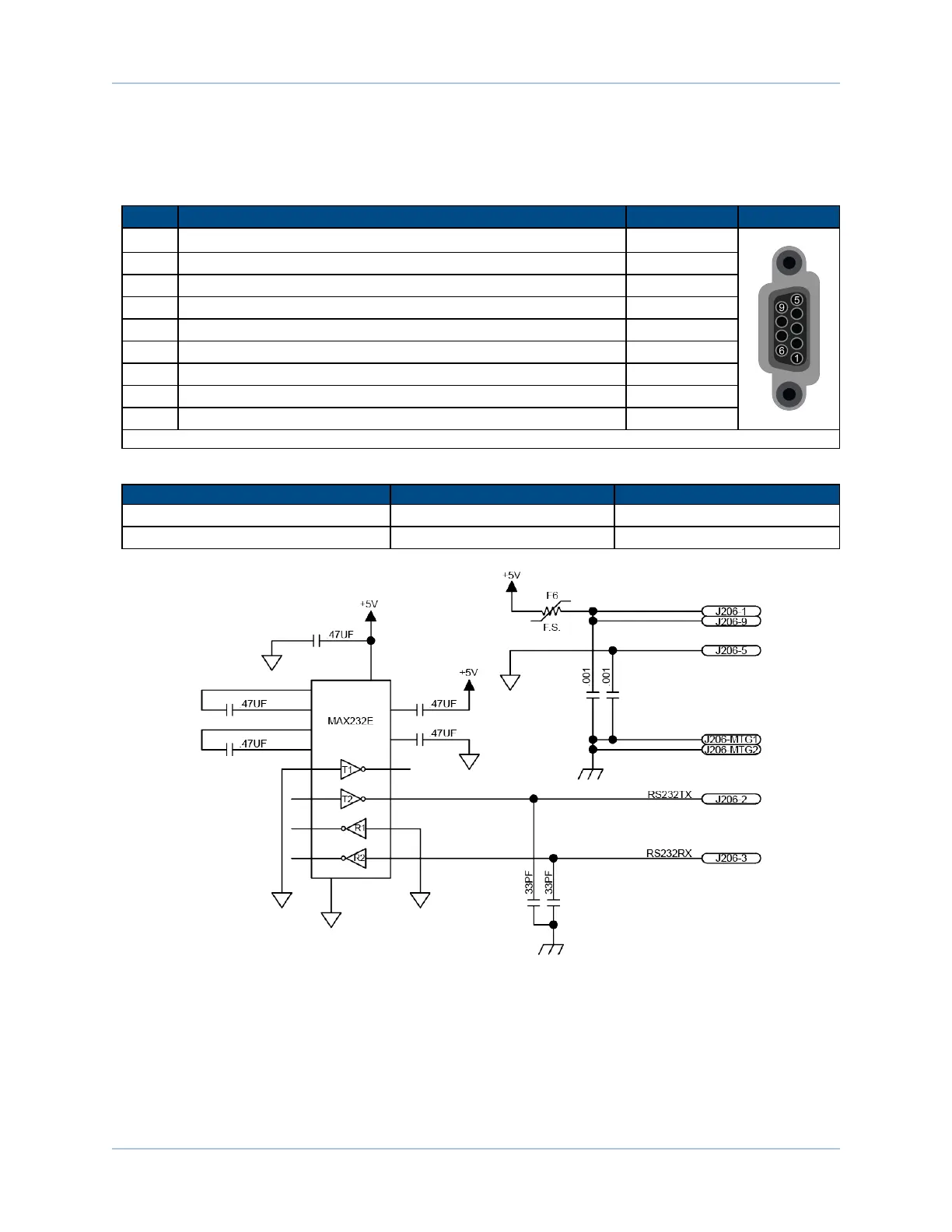

Figure 2-38: RS-232 Interface (J206)
www.aerotech.com Chapter 2 67
