Aerotech Ensemble HLe - Figure 3-10: Digital Inputs Connected to a Current Sourcing Device

-IO Expansion Board Ensemble HLe
N O T E : Each bank of 8 Inputs must be connected in the all sourcing or all sinking configuration.

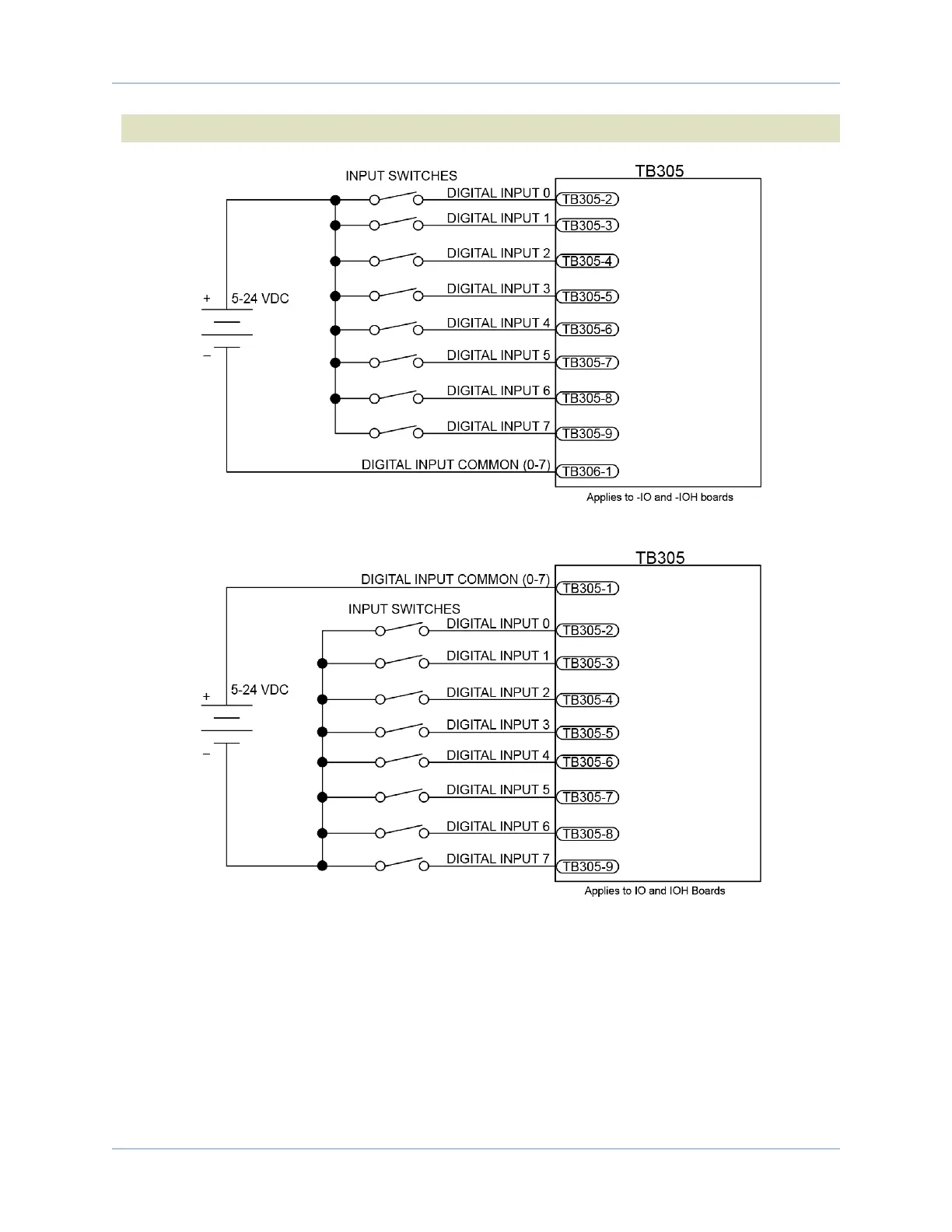

Figure 3-10: Digital Inputs Connected to a Current Sourcing Device
Figure 3-11: Digital Inputs Connected to a Current Sinking Device
www.aerotech.com Chapter 3 81
