1.3. Mechanical Design
Install the unit into a construction compliant for unlimited circuits enclosure. Each unit should be separated
from other drives and surrounded by 25 mm (1") of free air space. A space of 100 mm (4") should be allowed
along the front of the unit for cable connections.

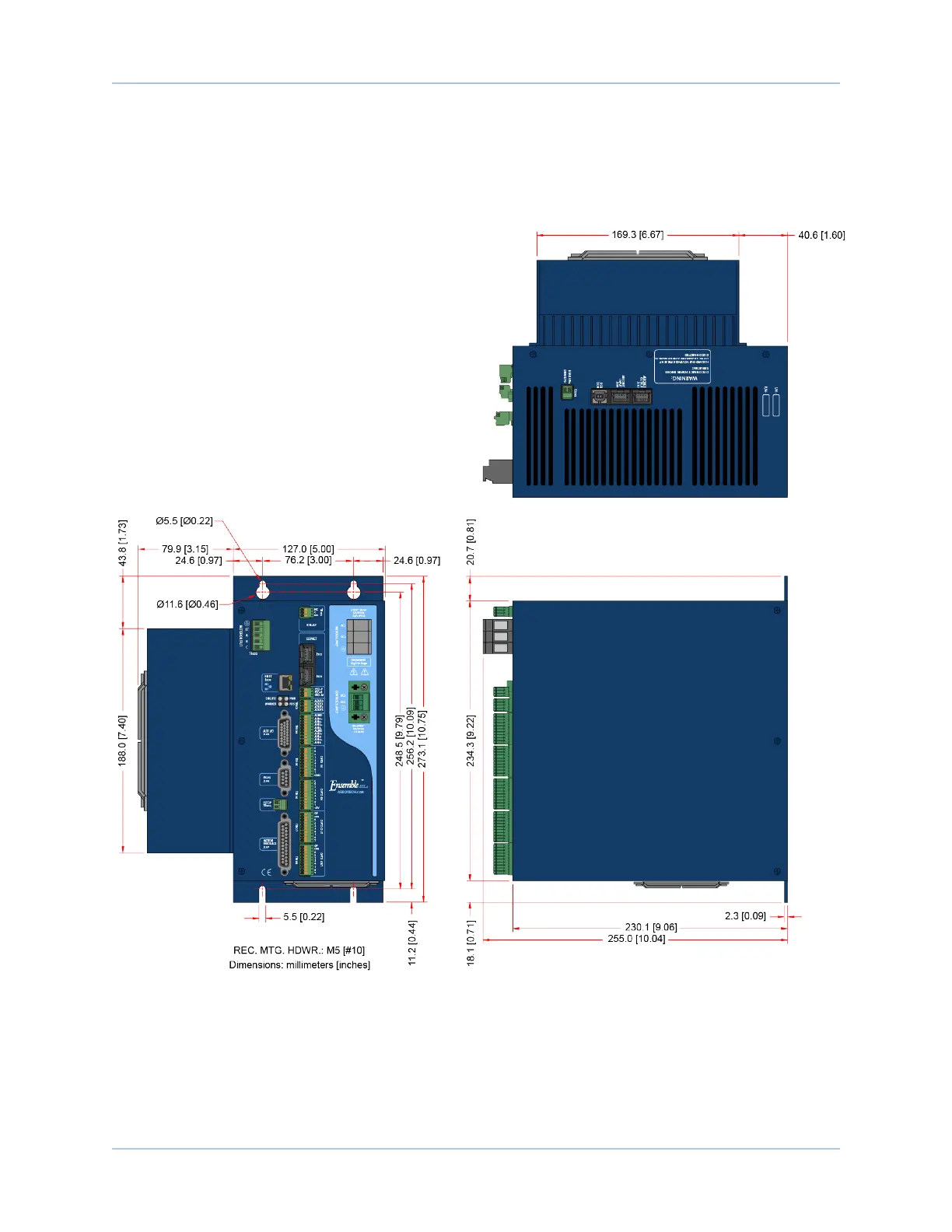

Figure 1-3: Dimensions (Slim Version)
