N O T E : Each bank of 8 Inputs must be connected in the all sourcing or all sinking configuration.

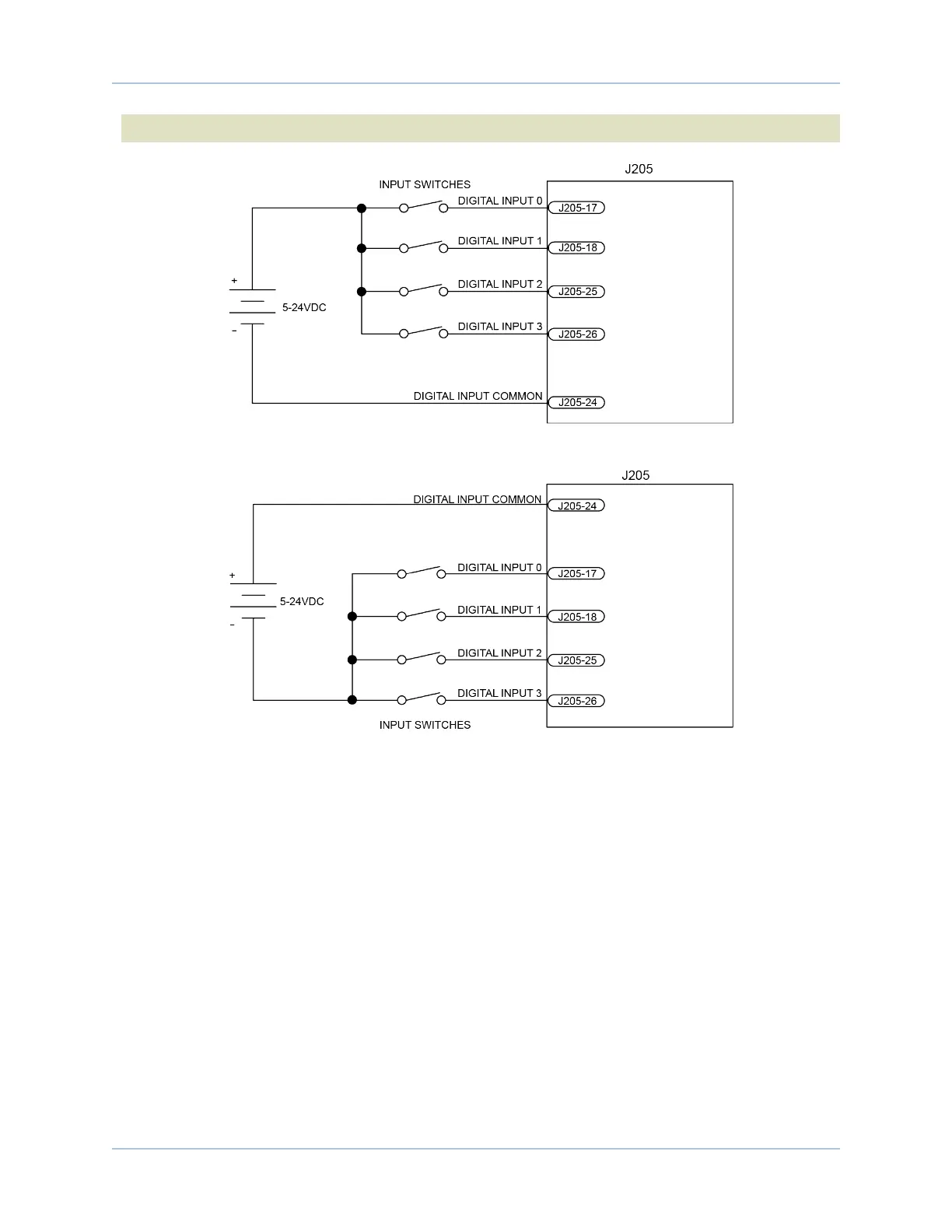

Figure 2-30: Inputs Connected in Current Sourcing Mode (J205)
Figure 2-31: Inputs Connected in Current Sinking Mode (J205)
