Aerotech Ensemble HLe User Manual

76 Chapter 3 www.aerotech.com
3.3. Analog Outputs (TB303)
The analog output is set to zero when power is first applied to the system or during a system reset.
Table 3-12: Analog Output Specifications (TB102B)
Specification Value
Output Voltage -10 V to +10V
Output Current 5 mA
Resolution (bits) 16 bits
Resolution (volts) 305 µV
N O T E : Analog Output 0 on TB303 is tied to Analog Output 0 on J205 (see Section 2.5.6.). TB303 lets
you connect to all of the analog outputs from one connector (do not connect to AOUT0 at both TB303 and
J205).
Table 3-13: Analog Output Connector Pin Assignment (TB303)
Pin# Description In/Out/Bi
1 Analog Output 0 Output
2 Analog Output 1 Output
3 Analog Output 2 Output
4 Analog Output 3 Output
Table 3-14: Mating Connector Part Numbers for the Analog Output Connector
Type Aerotech P/N Phoenix P/N
Wire Size: AWG [mm
2
]
4-Pin Terminal Block ECK01293 1881341 20-28 [0.5- 0.080]

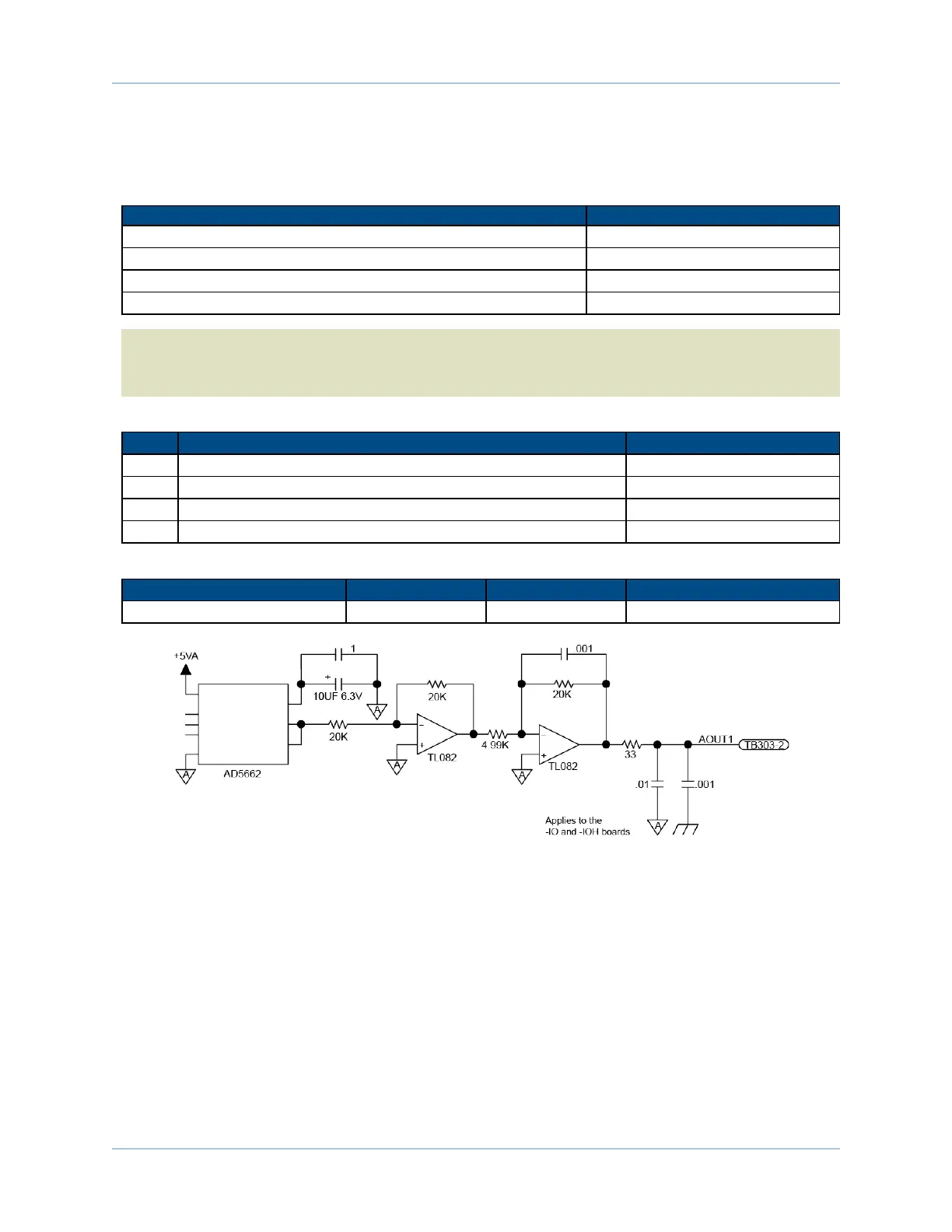

Figure 3-7: Analog Output Connector (TB303)
Ensemble HLe -IO Expansion Board
