2.5.5. High-Speed User Inputs 4-5 (J205)
The high-speed inputs 4-5 are typically used as a sample signal for data collection.
Table 2-32: High-Speed Input Specifications
Specification Value
Input Voltage 5V or 24Vinput voltages based on a jumper setting (Table 2-34)
Input Current 10 mA
Input Device HCPL-0630
Delay 50 nsec
Table 2-33: Port 0 High Speed Digital Input Pins on the Auxiliary I/O Connector (J205)
Pin# Description In/Out/Bi
3 High-Speed Input 4 + user interrupt Input
4 High-Speed Input 4 - user interrupt Input
5 High-Speed Input 5 + user interrupt Input
6 High-Speed Input 5 - user interrupt Input
Table 2-34: Input Voltage Jumper Configuration
Jumper Setting Description
JP3
1-2
(1)
24 Voperation (High Speed Input 5)
2-3 5 Voperation (High Speed Input 5)
JP4
1-2
(1)
24 Voperation (High Speed Input 4)
2-3 5 Voperation(High Speed Input 4)
(1) Default

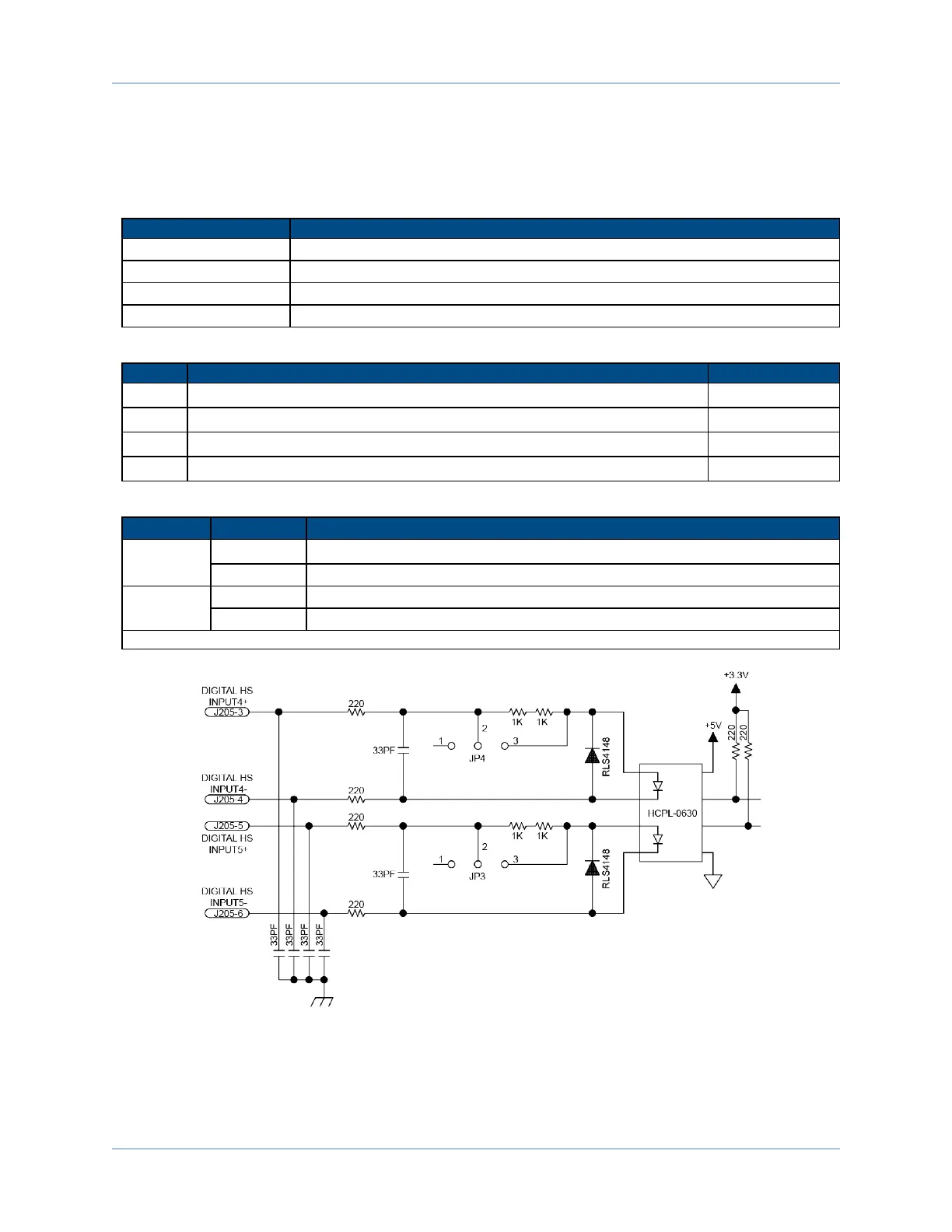

Figure 2-32: High-Speed User Inputs (J205)
www.aerotech.com Chapter 2 61
