Aerotech Ensemble HLe User Manual

Ensemble HLe Maintenance
6.2. Control Board
D A N G E R : Always disconnect the Mains power connection before opening the Ensemble
HLe chassis.

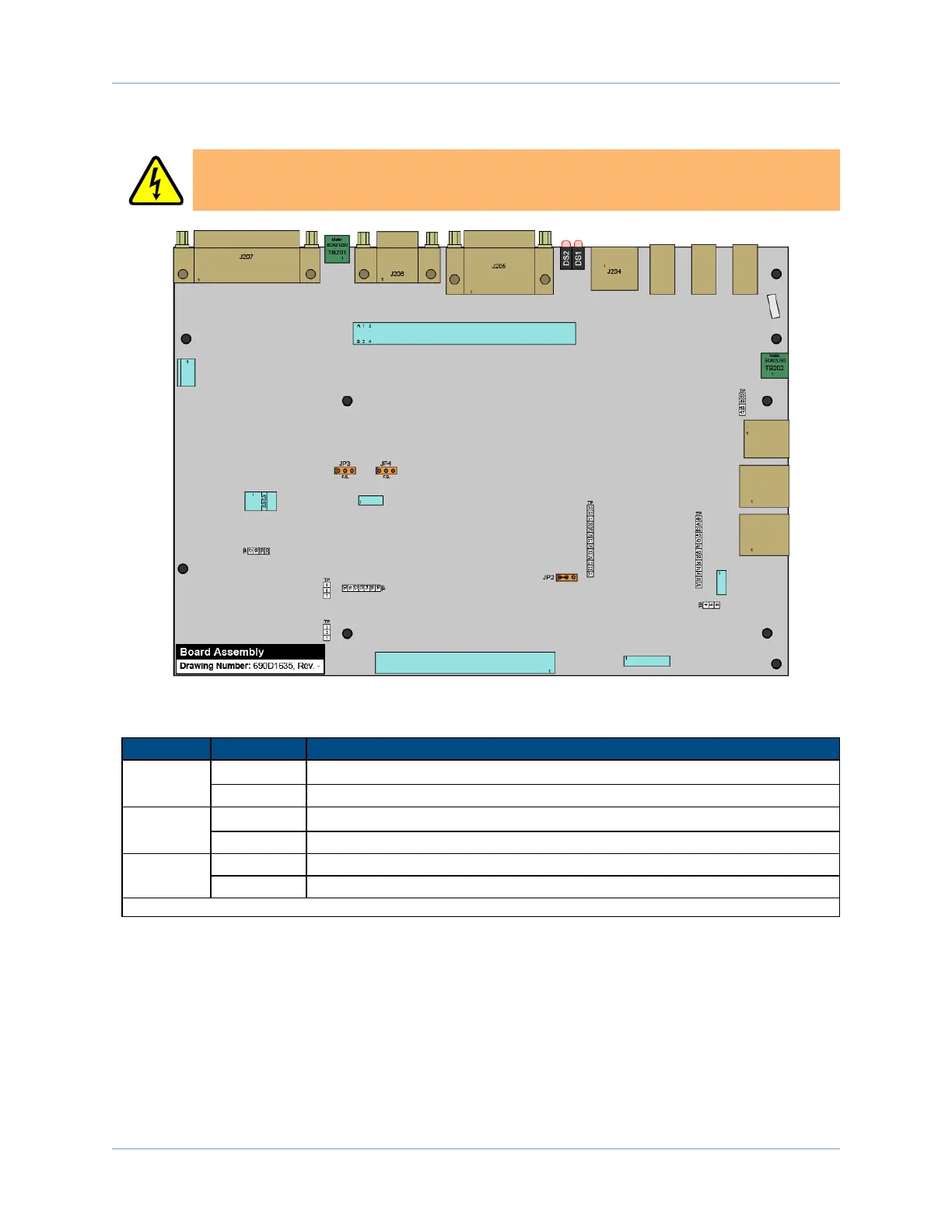

Figure 6-2: Control Board Assembly
Table 6-4: Control Board Jumper Configuration
Jumper Setting Description
JP2
1-2
(1)
Watchdog enabled
2-3 Watchdog disabled
JP3
1-2
(1)
24 Voperation (High Speed Input 5)
2-3 5 Voperation (High Speed Input 5)
JP4
1-2
(1)
24 Voperation (High Speed Input 4)
2-3 5 Voperation(High Speed Input 4)
(1) Default
102 Chapter 6 www.aerotech.com
