Aerotech Ensemble HLe - Figure 2-28: Outputs Connected in Current Sourcing Mode (J205); Figure 2-29: Outputs Connected in Current Sinking Mode (J205)

58 Chapter 2 www.aerotech.com
N O T E : Outputs must be connected as all sourcing or all sinking.

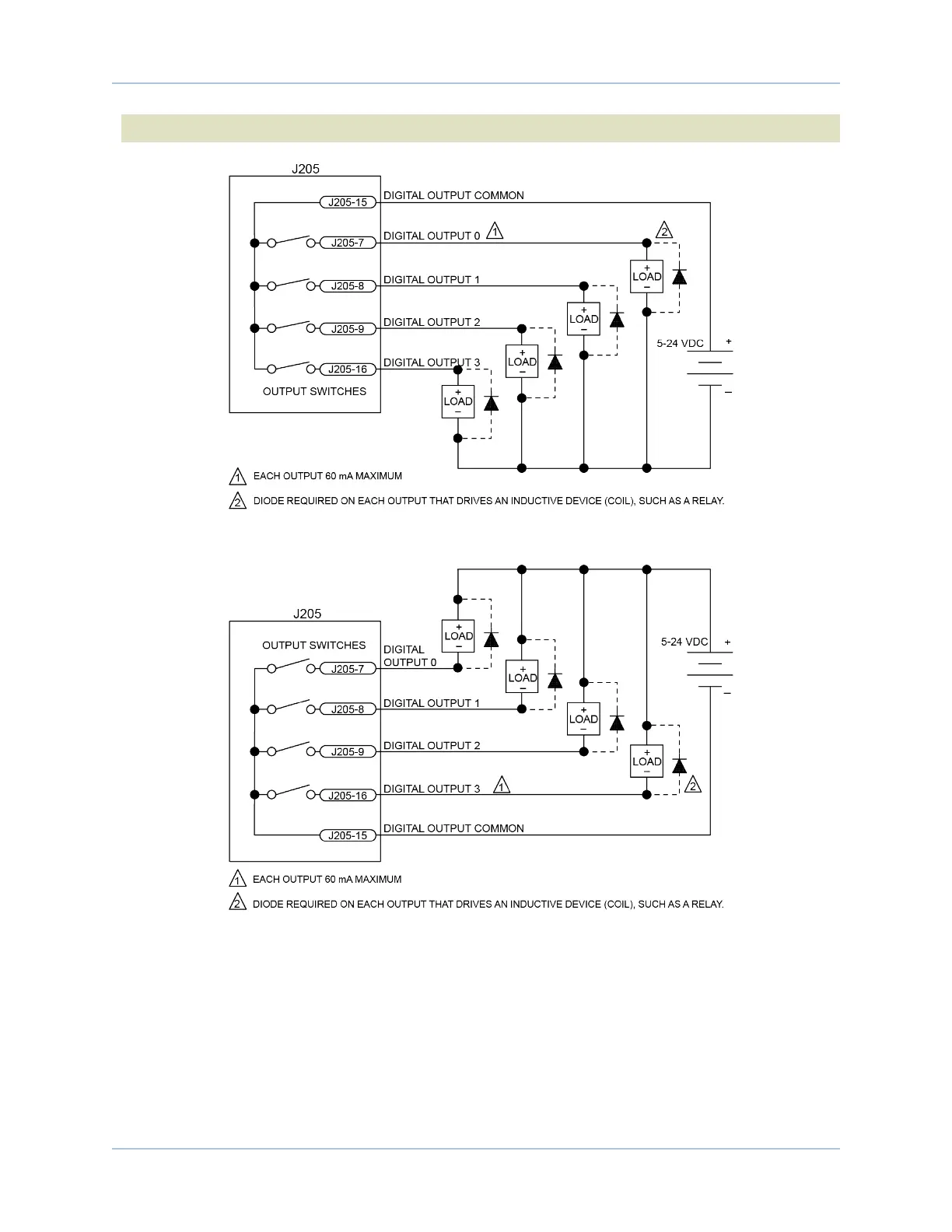

Figure 2-28: Outputs Connected in Current Sourcing Mode (J205)
Figure 2-29: Outputs Connected in Current Sinking Mode (J205)
Ensemble HLe Installation and Configuration
