Aerotech Ensemble HLe User Manual

Quick Installation Guide Ensemble HLe
Quick Installation Guide
This chapter describes the order in which connections and settings should typically be made to the
Ensemble HLe. If a custom interconnection drawing was created for your system (look for a line item on your
Sales Order under the heading “Integration”), that drawing can be found on your installation device.

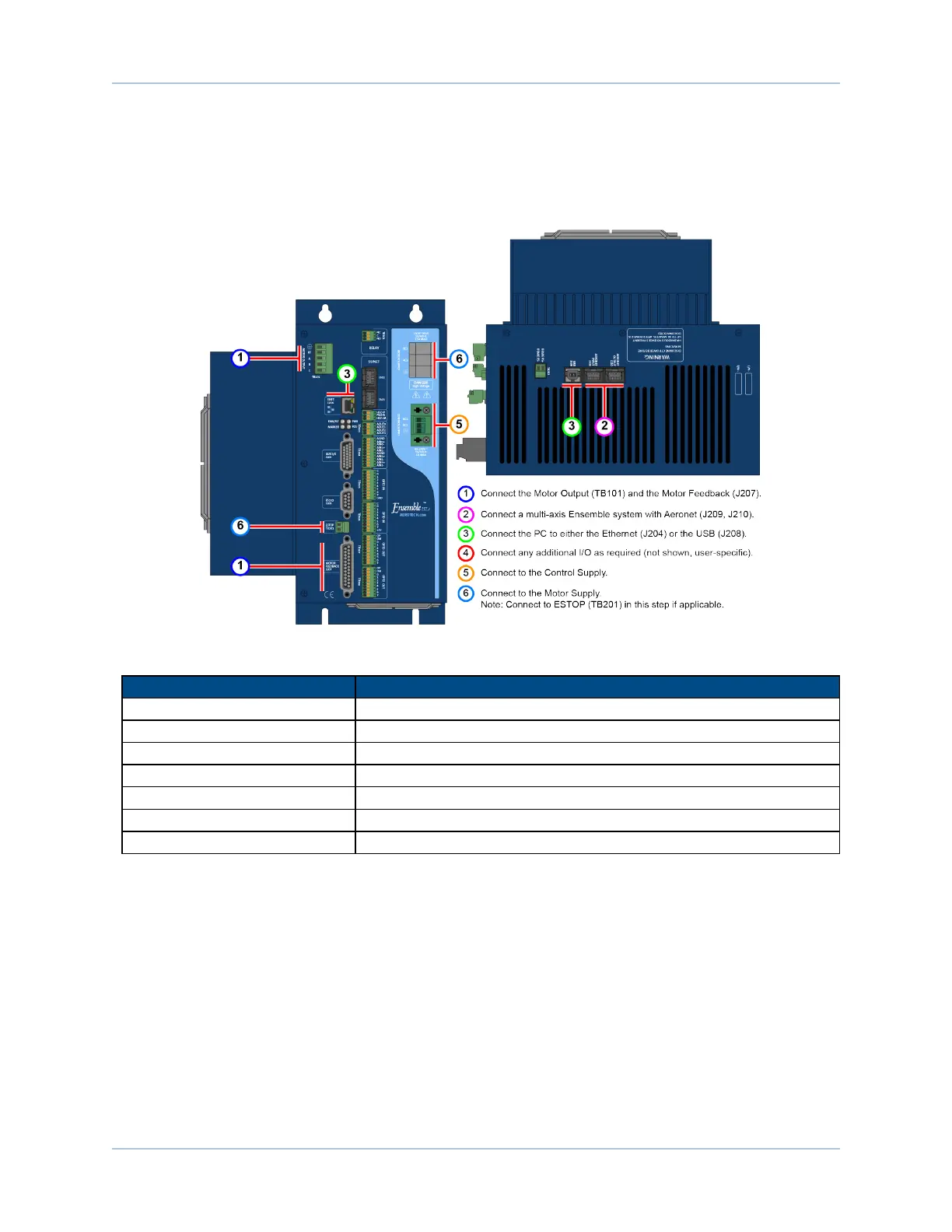

Figure 1: Quick Start Connections
Topic Section
Motor Output Section 2.2. Motor Output Connections
Motor Feedback Section 2.3. Motor Feedback Connections (J207)
Aeronet Section 2.7. Aeronet Interface (J209/J210)
Ethernet / USB No Section / Standard Connection
Control Supply Section 2.1.1. Control Supply Connections
Motor Supply Section 2.1.2. Motor Supply Connections
Additional I/O User / Application dependent
