AGFA DR 400 - Main Screen of the Tube Head Display

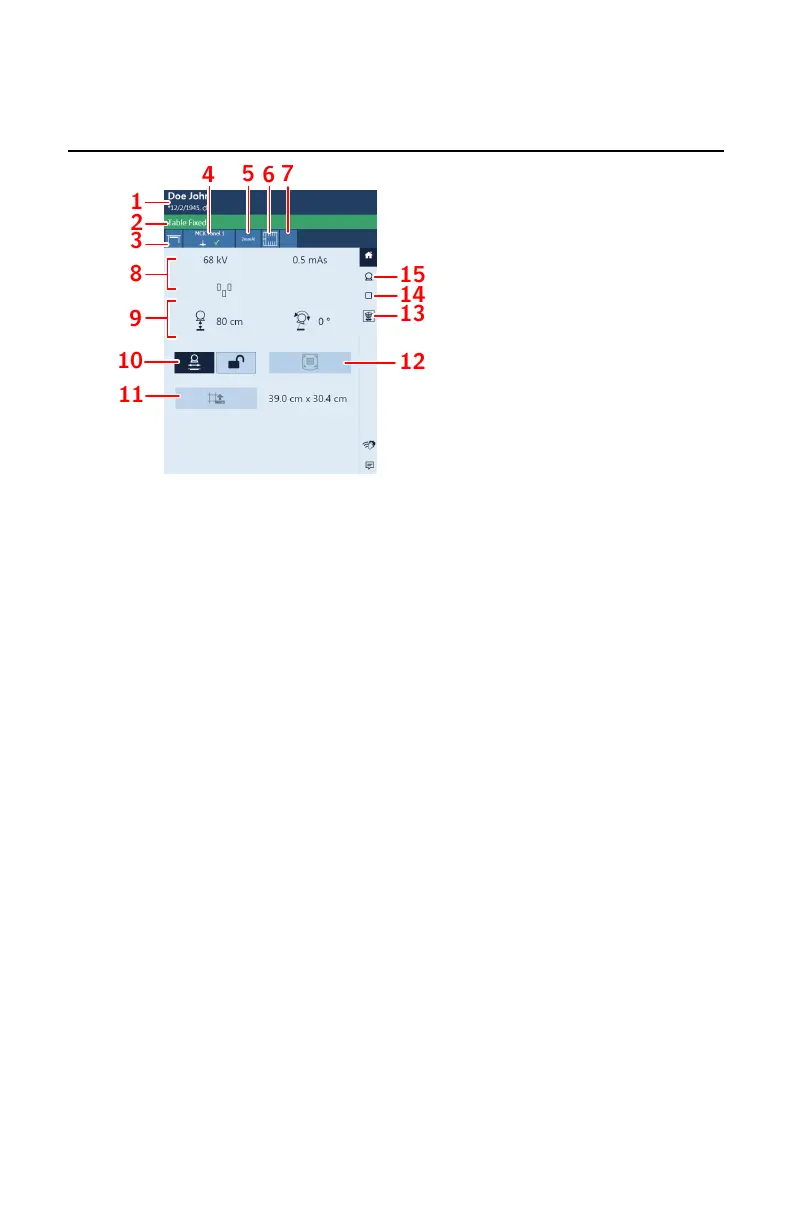

Main screen of the Tube head display
1
2
3
4
5
6
9
8
7
10
12
15
13
14
11
1.
Patient information
2.
Status bar with exam type
3.
Modality position
4.
DR Detector Switch
5.
Filter status
6.
Grid status
7.
Collimator status
8.
Radiographic parameters
9.
Position parameters
10.
Position tracking
11.
Collimation controls (for automatic collimator)
12.
Automatic centering
13.
Image preview
14.
X-ray modality controls
15.
Generator controls
Figure 33: Example of the tube head display
Topics:
• Position parameters
• X-ray tube stand tracks table height
• X-ray tube stand tracks wall stand height
• Collimator Parameters
